Troubleshooting
17. Go to RAID Level: and press <Enter>.
18. Choose the RAID Level required (see
Table 7 - 1, on page 7 - 3
for details) and press <Enter>.
• RAID0 (Stripe)
• RAID1 (Mirror)
• Recovery
19. Go to any of the disks listed under Select Disks: and select a disk name and press <Enter>.
20. Move the cursor down (use the arrow keys) onto to X (o select the disk required and press <Enter>.
• If you have selected a Recovery level RAID then you need to select one disk to be Master disk (M) and one
disk to be the Recovery disk (R)
For Recovery
8
For Stripe or Mirror

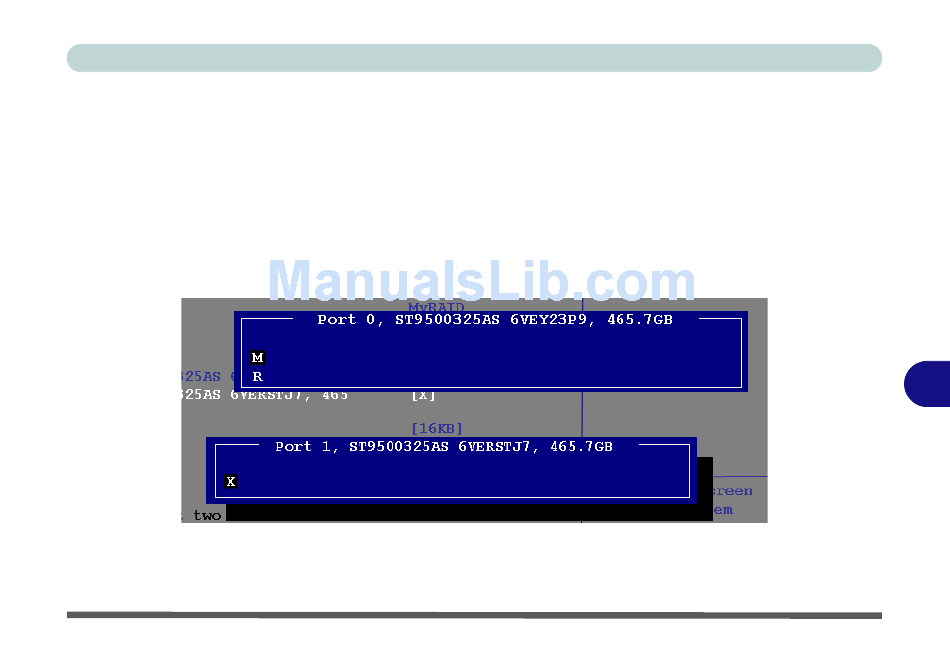

Figure 8 - 5
- Select Disks (Advanced > Intel(R) Rapid Storage Technology)
Problems and Possible Solutions 8 - 19
