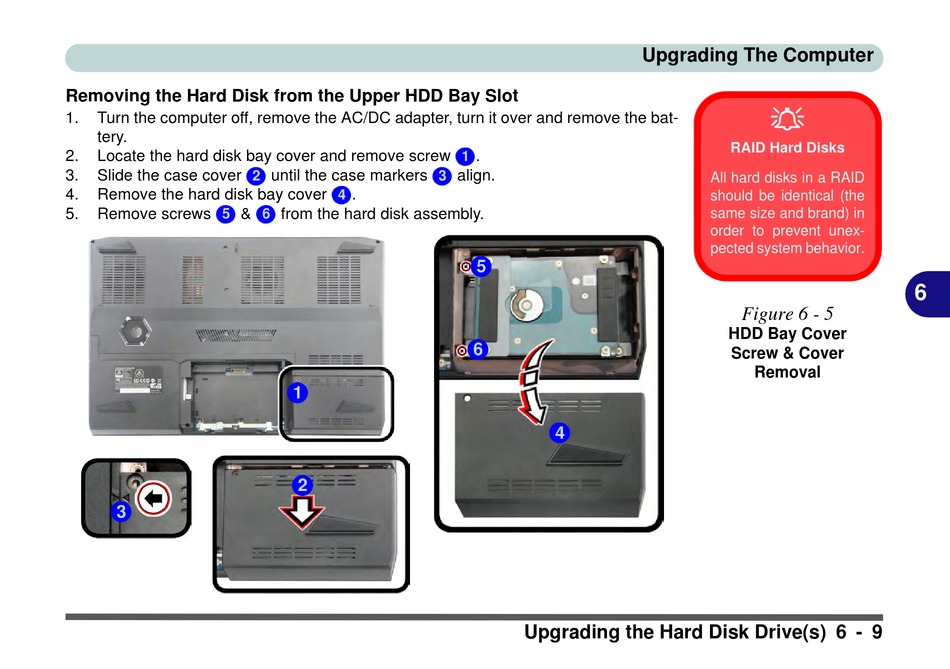

Removing the Hard Disk from the Upper HDD Bay Slot
1. Turn the computer off, remove the AC/DC adapter, turn it over and remove the bat-
tery.
2. Locate the hard disk bay cover and remove screw
3. Slide the case cover
4. Remove the hard disk bay cover
5. Remove screws &
5
3
until the case markers
2
4 .
from the hard disk assembly.
6
1
2
.
1
align.
3
5
6
4
Upgrading the Hard Disk Drive(s) 6 - 9
Upgrading The Computer

RAID Hard Disks
All hard disks in a RAID
should be identical (the
same size and brand) in
order to prevent unex-
pected system behavior.
Figure 6 - 5
HDD Bay Cover
Screw & Cover
Removal
