Name & Function of Each Part

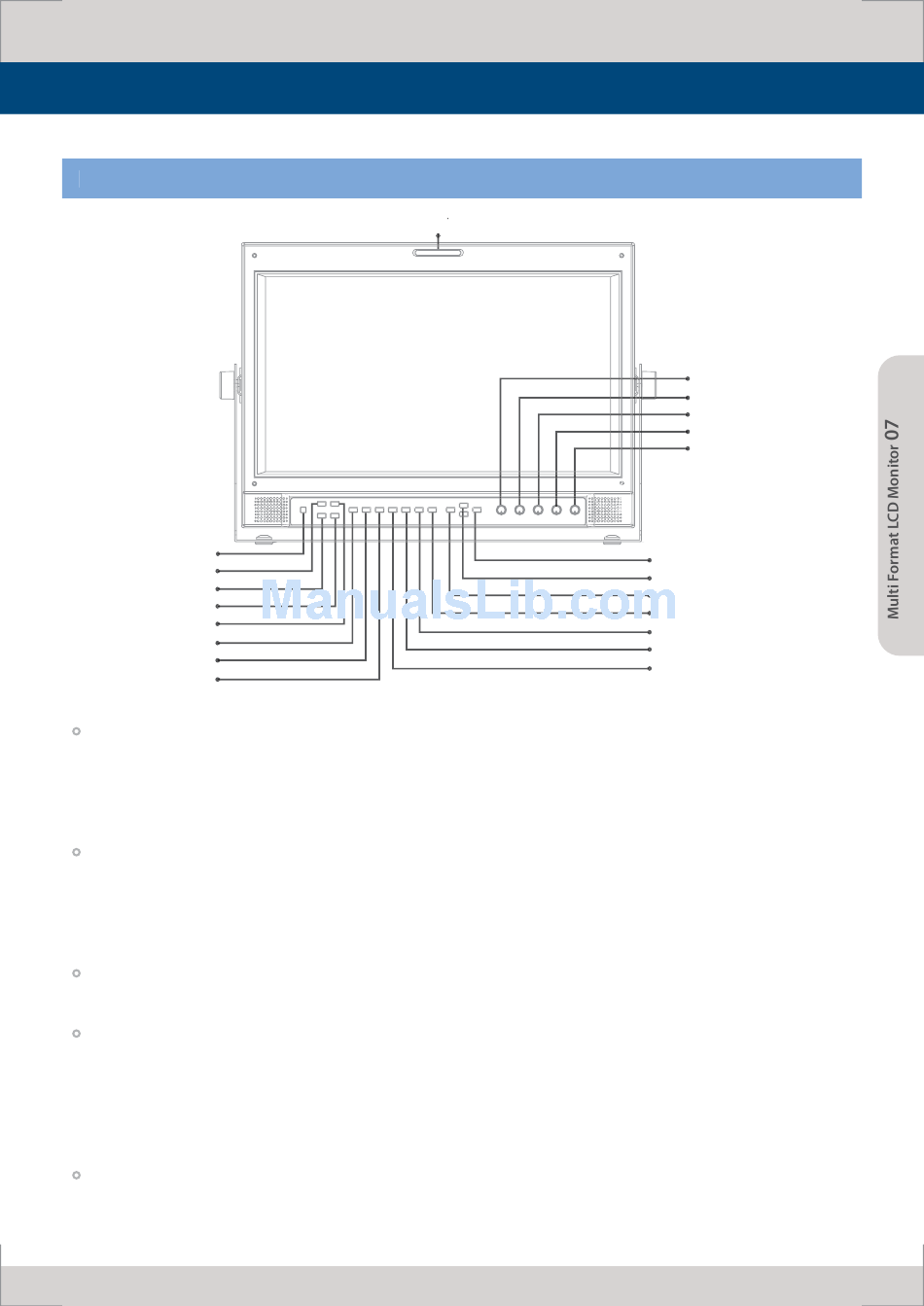

LVM-172W FRONT
POWER
ANALOG
SDI-A
SDI-B
DVI
SCAN
ASPECT
MARKER
[ANALOG] Button/Lamp
- Used to select desired Analog input. (CVB1/2/3, S-Video, Component, RGB)
- Press the button to activate the analog input menu-selection, then use UP and DOWN button to select
desired input.
* See section "Other Functions [1]ANALOG Button" for more information.
[DVI] Button/Lamp
- Used to select desired DVI input.
- Press the button to activate the DVI input menu selection, then use UP and DOWN button to select
desired input.
* See section "Other Functions [2]DVI Button" for more information.
[SDI-A]/[SDI-B] Button/Lamp
- Used to select SDI-A/SDI-B input.
[SCAN] button/lamp
- Used to change the scan mode. Press the button to activate through the scan modes: OVER SCAN -> USER
ASPECT -> ZERO SCAN -> UNDER SCAN -> 1:1 SCAN -> FIT WIDTH
* See section "Other Functions [3]SCAN Button" for more information.
#[USER ASPECT] : User can adjust width and height of the display.
* See section "Other Functions [4] Pixel to Pixel and [5] User Aspect" for more information.
[ASPECT] Button/Lamp
- Used to change the display ratio between 4:3 and 16:9.
* Display ratio locks to 16:9 if the display ratio of input signal is 16:9.
TALLY L L
APERTURE
BRIGHT
CHROMA
CONTRAST
VOLUME
ENTER
UP/DOWN
MENU
TC(TIME CODE)
PHASE
BLUE ONLY/MONO
H/V DELAY
