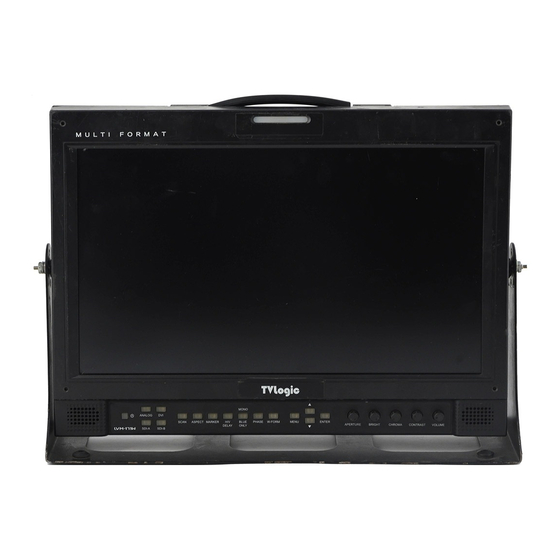

Page 1: Lcd Monitor
Multi Format LCD MONITOR Operation Manual 17” Multi Format LCD Monitor L VM- 171WP MULTI... -
Page 3: Table Of Contents
Contents CAUTION FEATURES NAME & FUNCTION OF EACH PART OSD MENU ORGANIZATION & ADJUSTMENT OSD MENU CONTENTS OTHER FUNCTIONS DVI ANALOG INPUT SIGNAL FORMAT DVI DIGITAL INPUT SIGNAL FORMAT PRODUCT SPECIFICATION PRODUCT LINEUP OPTIONAL ACCESSORIES FCC (Federal Communications Commission) This equipment has been tested and found to comply with the limits for class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Caution
L VM- 171W - 171WP Caution ALWAYS USE SET VOLTAGE. AC 100 ~ 240V (1.2A/50~60HZ), DC 12/24V (MAX 6A) All operating instructions must be read and understood before the product is operated. These safety and operating instructions must be kept in safe place for future reference. All warnings on the product and in the instructions must be observed closely. - Page 5 L VM- 171W - 171WP Caution In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
-
Page 6: Features
Wide Screen compatible - Wide Screen for 16:9 aspect monitoring. Dual Link support (Option) - LVM-171WP can use 4:4:4 format and 1080/60p. Wide Variety of Marker & Safety Areas - Center Marker, Safty Area Marker, Fit Marker, Marker Mat. Compatible with varied DVI Digital/Analog Signals... -
Page 7: Name & Function Of Each Part
L VM- 171W - 171WP Name & Function of Each Part FRONT TALLY L L APERTURE BRIGHT CHROMA CONTRAST VOLUME POWER ENTER ANALOG UP/DOWN SDI-A MENU SDI-B WAVEFORM PHASE SCAN BLUE ONLY/MONO ASPECT H/V DELAY MARKER [ANALOG] button/lamp - Used when ANALOG INPUT is selected. Sub Menu for analog input menu-selection appears. [SDI-A] button/lamp - Used to select SDI-A Input [SDI-B] button/lamp... - Page 8 L VM- 171W - 171WP Name & Function of Each Part [H/V DELAY] button/lamp - Used when checking horizontal sync and vertical sync simultaneously. [BLUE ONLY] [MONO] button/lamp - You may remove R(red) and G(green) from the input signal and play the screen only in B(blue) signal.
- Page 9 L VM- 171W - 171WP Name & Function of Each Part [BRIGHT] knob - Used to adjust the degree of brightness between MAX(100) and MIN(-100). [CHROMA] knob - Used to adjust the saturation between MAX(50) and MIN(-50). #Chroma is not available in DVI Analog mode. [CONTRAST] knob - Used to adjust the contrast ration between MAX(100) and MIN(-100).
- Page 10 L VM- 171W - 171WP Name & Function of Each Part REAR FACTORY PGM CVBS1/G/Y/S-Y CVBS2/B/Pb/ CVBS3/R/Pr/S-C DVI-I SDI IN-A SDI OUT-A SDI IN-B SDI OUT-B HDMI AUDIO OUT AUDIO IN POWER S/W REMOTE AC IN RS422 OUT DC IN RS422 IN REMOTE (RJ-45) - Provides connection to monitor control equipment via simple GPI contact closure.
- Page 11 L VM- 171W - 171WP Name & Function of Each Part SDI-IN A (BNC) - SDI signal input terminal that provides A signal. SDI-OUT A (BNC) - SDI signal output terminal used for SDI A output. SDI-IN B (BNC) - SDI signal input terminal that provides B signal. SDI-OUT B (BNC) - SDI signal output terminal used for SDI B output.
-
Page 12: Osd Menu Organization & Adjustment
THE PRODUCT MAY BE CONTROLLED AND SET SYSTEM-WISE THROUGH OSD DISPLAYED ON THE SCREEN. 1) Menu Organization Below is the organization of the product’s menu. LVM-171WP 2) Menu Control You may control various functions using MENU, UP/DOWN and ENTER buttons on the bottom front of the monitor. -
Page 13: Osd Menu Contents
L VM- 171W - 171WP OSD Menu Contents [1] PICTURE PART Below is the description of each function of the menu. LVM-171WP LVM-171WP LVM-171WP BRIGHT This item controls the degree of brightness between MAX(100) and MIN (-100) range. CONTRAST This item controls the contrast ratio between MAX(100) and MIN(-100). - Page 14 L VM- 171W - 171WP OSD Menu Contents [1] PICTURE PART NTSC SETUP This item sets IRE value in NTSC mode between 0 IRE and 7.5 IRE. SDI FORMAT This item selects input SDI format between single mode and dual mode. (Use Dual mode) SDI SAMPLING This item selects input SDI sampling mode between YCbCr and RGB.
- Page 15 L VM- 171W - 171WP OSD Menu Contents [2] COLOR PART LVM-171WP LVM-171WG COLOR TEMP This item controls COLOR TEMPERATURE and is basically compatible with 5000K, 5600K, 6500K, 9300K and USER modes. On user mode, the user may select among R,G and B values.
- Page 16 L VM- 171W - 171WP OSD Menu Contents [3] MARKER PART LVM-171WP LVM-171WP MARKER This selects the marker type when the MARKER is displayed on the screen. MARKER may only be activated by pressing the MARKER button on the front of the monitor.
- Page 17 USER MARKER H1 / H2 This item controls the marker of horizontal value. USER MARKER V1 / V2 This item controls the marker of vertical value. [4] REMOTE PART LVM-171WP REMOTE (RJ-45) 1: Pin1 2: Pin2 3: Pin3 4: Pin4...
- Page 18 L VM- 171W - 171WP OSD Menu Contents [5] SYSTEM PART LVM-171WP LVM-171WP UMD CHARACTER UMD POSITION LVM-171WP SET DEFAULT You can use the SET DEFAULTS menu to initialize the values of BRIGHT, CONTRAST, PHASE, CHROMA, APERTURE and BACKLIGHT of the monitor.
- Page 19 L VM- 171W - 171WP OSD Menu Contents LOCK ENABLE Lock enable is enable code input item to use Dual link item. (User must know the enable code to use this term.) BOARD VER This item is serial number of product main board. (User can’t touch this item.) KEY LED This item controls KEY LED ON/OFF.
- Page 20 L VM- 171W - 171WP OSD Menu Contents WAVEFORM / VECTOR This item sets display type of waveform(User can’t touch this item.) WAVEFORM TYPE This item sets the waveform type between normal and N-TRANS WAVEFORM POSITION This item sets the waveform position.(R-B,C-B,L-B,L-T,C-T,R-T) WAVEFORM SIZE This item sets the waveform size.(Large,Medium,Small) TIME CODE ENABLE...
-
Page 21: Other Functions
L VM- 171W - 171WP Other Functions [1] ANALOG / DVI MODE USAGE This product is capable of processing all input signals usable in ANALOG/DVI mode. The ANALOG/DVI input settings are as follows: 1. Press ANALOG or DVI button on the front of the product and activate the menu below. Analog 2. - Page 22 DUAL LINK Mode can setup by following these steps: 1. Press the MENU button to bring up the OSD menu. LVM-171WP 2. Display Picture menu and press ENTER button and then PICTURE menu will be activated. 3. Select DUAL item in SDI FORMAT.
-
Page 23: Dvi Analog Input Signal Format
L VM- 171W - 171WP DVI Analog Input Signal Format DVI ANALOG Resolution (Source) DotClock [MHz] Sync (H/V) f H (kHz) f V (Hz) 640 x 350 70Hz (IBM) 25.175 31.469 70.086 640 x 480 60Hz (IBM) 25.175 31.469 59.940 720 x 400 70Hz (IBM) 28.322 31.469... -
Page 24: Dvi Digital Input Signal Format
L VM- 171WP DVI Digital Input Signal Format DVI DIGITAL Resolution (Source) DotClock [MHz] f H (kHz) f V (Hz) Sync (H/V) 640 x 350 70Hz (IBM) 25.175 31.469 70.086 640 x 480 60Hz (IBM) 25.175 31.469 59.940 720 x 400 70Hz (IBM) 28.322 31.469 70.087... -
Page 25: Product Specification
L VM- 171WP Product Specification 1 x DVI- I DVI IN 3 x BNC Analog Input Input 2 x BNC SDI A/B Channel Input 1 x HDMI HDMI Input 3 x BNC Analog Output Output 2 x BNC SDI A/B Channel (Active Through Out) Analog Composite / S-Video / Component / RGB HD-SDI... -
Page 26: Product Lineup
2. Color : 16.7M(true), 24bit 3. Contrast - 350 :1 4. Viewing Angle : 170 5. Weight : 2.8Kg (6.17 lb) LVM-171WP / LVM-172W 1. LCD Resolution : 1366 x 768 (16:9) 2. Color : 16.7M(true), 24bit 3. Contrast - 900 :1 4. - Page 27 L VM- 171W - 171WP Product Lineup LVM-322W 1. LCD Resolution : 1366 x 768 (16:9) 2. Color : 1 Billion(true), 30bit 3. Contrast - 1100 :1 4. Viewing Angle : 178 5. Weight : 26Kg (57.3 lb) LVM-401W 1. LCD Resolution : 1920 x 1080 (16:9) 2.
-
Page 28: Optional Accessories
17 inch 24 inch Developed by FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.co.kr #914 Ace Techno Tower 9, 345-30 Gasan-dong, Geumcheon-gu, Seoul, 153-782, KOREA : +82 - 2 - 2026 - 1333 Fax : +82 - 2 - 2023 - 1339...
