Name & Function of Each Part
REMOTE (RJ-45)
- Provides connection to control equipment for external monitor control.
- Features can be changed in the [REMOTE] section of OSD menu.
DVI-I (DVI-I)
- Signal input terminal for DVI ANALOG or DVI DIGITAL signal.
SDI IN-A/SDI IN-B (BNC)
- HD/SD-SDI signal input terminal.
SDI-OUT (BNC)
- HD/SD-SDI signal output terminal.
CVBS1/G/Y/S-Y (BNC)
- Signal input terminal used to feed the monitor COMPOSITE 1, S-VIDEO Y, COMPONENT Y and RGB G signals.
CVBS2/B/Pb (BNC)
- Signal input terminal used to feed the monitor COMPOSITE 2, RGB B and COMPONENT Pb signals.
CVBS3/R/Pr/S-C (BNC)
- Signal input terminal used to feed the monitor COMPOSITE 3, S-VIDEO C, COMPONENT Pr and RGB R signals.
AUDIO IN (phone jack)
- Internal speakers stereo audio input terminal.
AUDIO OUT (phone jack)
- Built in audio disembedder and internal speakers stereo audio output using mini jacks.
FACTORY PGM (D-SUB 15 pins)
- Input connector for FACTORY PGM allowing for firmware update and auto calibration.
DC IN (XLR, 4 pins)
- DC Power : LVM-172W : 12V or 24V, LVM-242W : 24V
~ AC IN
- AC power : 100V~240V 50/60Hz
POWER S/W
- Power switch
Video input : Input video connection method
Connector
1
2
3
Warning!!
When using the product, make sure to connect the GND first before connecting the input signal line. The unit may
not operate properly, if the input line is connected before the GND is connected.
Composite Component
CVBS 1
CVBS 2
CVBS 3

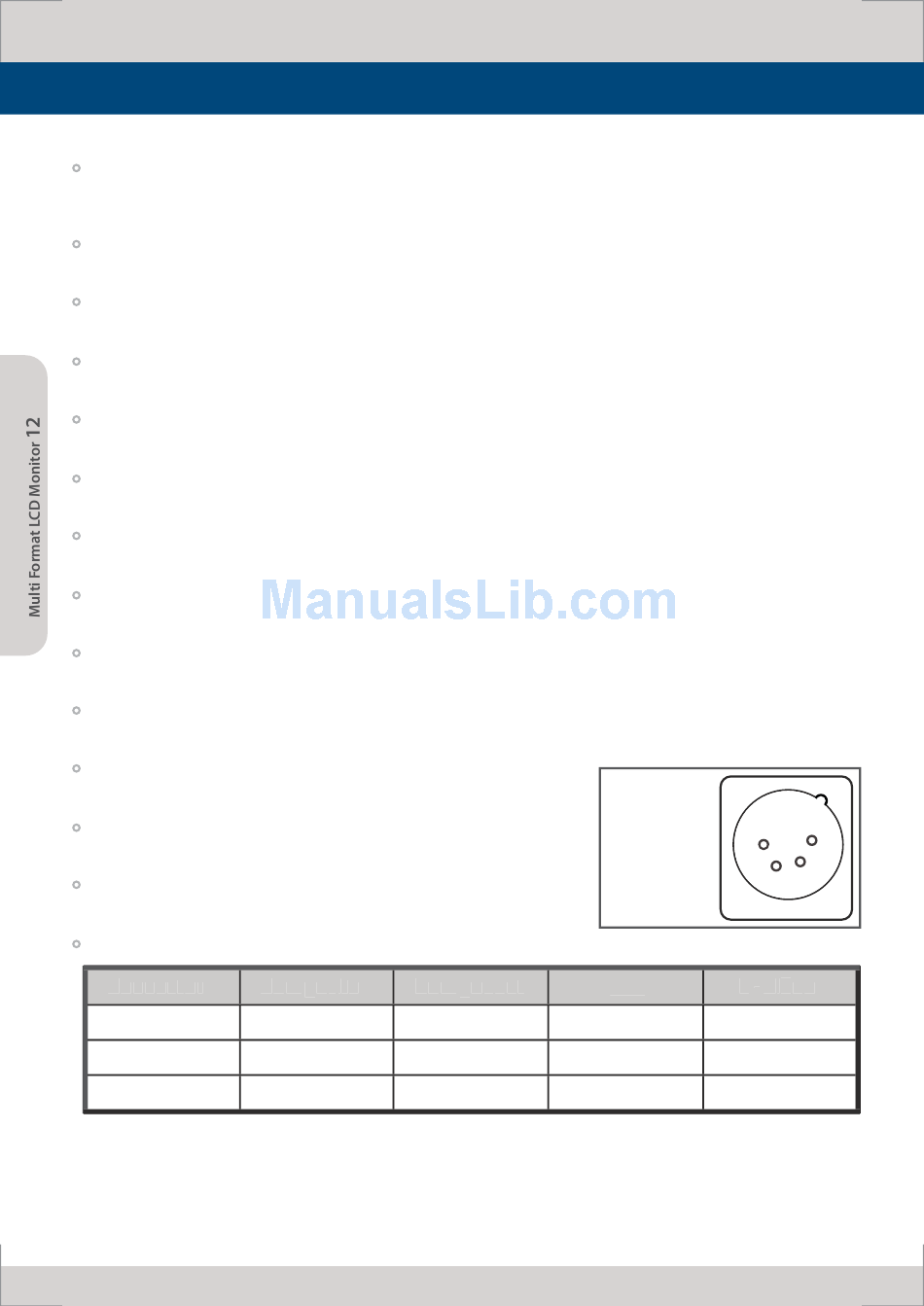

DC IN socket
1,2: GND
3,4: +12V/+24V
RGB
Y G
Pb B
Pr R
4
1
3
2
S - Video
Y
No Con.
C
