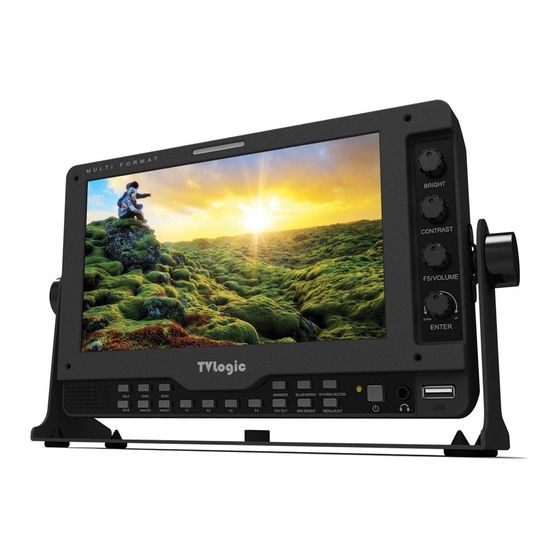

7" FHD Multi Format
Broadcast LCD Monitor
LVM-075A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVM-170A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TVLogic LVM-170A

Summary of Contents for TVLogic LVM-170A

  • Page 1 7” FHD Multi Format Broadcast LCD Monitor LVM-075A...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Organization & Adjustment 5. Menu Operations [1] PICTURE [2] COLOR [3] MARKER [4] GPI/UMD [5] WAVEFORM [6] AUDIO [7] DISPLAY & SET 6. Button Functions 7. Other Functions 8.

  • Page 4: Caution

    1. Caution Always use set voltage. (DC 12V) • Do not attempt to service the product yourself. • Removing covers can expose you to high When using a DC Adapter other than the • voltage and other dangerous conditions. one supplied by the manufacturer, please Request a qualified service person to perform be advised that the adapter with DC 12V/3A servicing.
  • Page 5 1. Caution • When mounting the product on a wall or • When relocating the product placed on a cart, ceiling, be sure to install the product it must be moved with the utmost care. according to the method recommended by the Sudden stops, excessive force and uneven floor manufacturer.

  • Page 6: Main Features

    2. Main Features LVM-075A Monitor contains the following features: • Compatible with various SDI signals • Knob Control formats (SD/HD/3G) - Easy to adjust user configuration using the control knob on the front of the monitor. - This product is compatible with various SDI signals - SD/HD/3G(A/B)-SDI 480i, 576i, 1080i, •...

  • Page 7: Controls & Functions

    3. Controls & Functions LVM-075A : FRONT HDMI BLUE/MONO SDI-A SCAN MARKER W-FORM/VECTOR SDI-B ASPECT MAX BRIGHT ANALOG H/V DLY. MENU/EXIT HDMI BLUE/MONO SDI-A SCAN MARKER W-FORM/VECTOR SDI-B ASPECT MAX BRIGHT ANALOG H/V DLY. MENU/EXIT LVM-075A : REAR RS 422 Multi Format LCD Monitor 7...
  • Page 8 3. Controls & Functions FRONT • [SDI-A] Button/Lamp • [MARKER] Button/Lamp - Used to select SDI-A input. - Used to activate/deactivate the Marker. The type of marker at work may be selected on • [SDI-B] Button/Lamp the main menu. - Used to select SDI-B input. •...
  • Page 9 - This terminal is used to upgrade the firmware - Used to move within the menu when OSD or color calibration made by TVLogic. menu is activated, and is also used to decrease or increase the value of the selected feature.
  • Page 10 • [RS422 IN/OUT] (RJ-45) - Tally lamp that can be toggled in green or red - Used to control the monitor with protocol using the REMOTE(RJ-45), LAN port. provided by TVLogic or to support TSL protocol. • [SDI-IN A] (BNC) • [REMOTE] (RJ-45) - HD/SD SDI signal input terminal for SDI A.

  • Page 11: Menu Organization & Adjustment

    4. Menu Tree & Adjustment [1] Menu Tree [3] Menu Control Sequence • OSD(On-Screen Display) Menu helps you • Menu control sequence follows the order use various functions. below: • This Picture is the menu structure for LVM- 1. Press MENU button to activate the OSD menu. 2.

  • Page 12: Menu Operations

    5. Menu Operations [1] Picture • Aperture - Used to set the sharpness level from -5 to 19. # Press the Knob to adjust Aperture quickly. • NTSC Setup - Used to set Black Level of NTSC video as 0(zero setup) or 7.5 IRE.

  • Page 13: Color

    5. Menu Operations [2] Color • Temp. Adaptive Color - [On] : Used to measure and compensate the color temperature shift caused by panel temperature variation. - [Off] : Used to apply preset color temperature setting regardless of the panel temaperature. •...

  • Page 14: Marker

    5. Menu Operations [3] Marker • Marker • Marker Mat - Used to activate the Marker function. - Used to set the darkeness level outside of the - Available marker types are OFF, 16:9, 4:3, 4:3 MARKER area from OFF(transparent) to 7(Black). ON AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 &...

  • Page 15: Gpi/Umd

    5. Menu Operations [4] GPI / UMD • The selectable values are as follows : Menu Classifi- Settable Values cation NONE, Analog Channel, CVBS Channel, SDI-A Channel, SDI-B Channel, TALLY R, TALLY G, TALLY Y, UNDER SCAN, 1:1 SCAN, • GPI 1~8 ASPECT, - This item activate/ deactivate the REMOTE function.
  • Page 16 5. Menu Operations [4] GPI / UMD • UMD Character - Customizes the characters for Under Monitor Display. - Alphabets, numbers and special symbols are available. - Maximum of 8 characters are available. • UMD CHARACTER COLOR - Used to set the color of UMD character. - Available colors are WHITE, RED, GREEN, BLUE, YELLOW, CYAN and MAGENTA.
  • Page 17 5. Menu Operations [4] GPI / UMD • XLR TALLY On/Off - Used to set Tally operation according to the input level of TALLY IN terminal which is among the terminals of XLR 4P connector in the rear. • XLR TALLY Operating Level - Used to set the input level of Tally operation.
  • Page 18 5. Menu Operations [4] GPI / UMD <Dynamic UMD Protocol (TSL V3.1)> * Transmission (18 Byte) (PC or Device -> Monitor) HEADER CONTROL DISPLAY DATA (1 BYTE) BYTE(1 BYTE) (16 BYTE) * [HEADER] : Display address (0~126) + 80 hex. * [CONTROL BYTE] bit 0 : Tally 1 (1=on, 0=off) bit 1 : Tally 2 (1=on, 0=off)
  • Page 19 5. Menu Operations [4] GPI / UMD • Tally Type - Default - S-8C(Single 8 Character) & S-16C(Single 16 Character) Bit 1 Bit 1 Operation (Tally2) (Tally1) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1 - D-8C(Dual 8 Character) Bit 1 Bit 1 Operation (Tally4) (Tally3) CHANNEL1...

  • Page 20: Waveform

    5. Menu Operations [4] GPI / UMD [5] Waveform • IP ADDRESS • Waveform type - Sets the IP address. - The item sets Waveform and Vectorscope. - The operation order is OFF -> WAVEFORM -> • SUBNET MASK VECTOR SCOPE -> WAVEFORM YCbCr -> WAVEFORM RGB ->...
  • Page 21 5. Menu Operations [5] Waveform • Waveform Trans • Luma(Y’) Zone Check - Controls the transparency level of the - Displays the Luma(Y’) level of the input image WAVEFORM/VECTOR. in colors. - Available values are OPAQUE and TRANS. - May select between [Color Pattern] or [Zebra * If the option is set to OPAQUE, the main OSD Pattern].
  • Page 22 5. Menu Operations [5] Waveform • C Min - Used to set the minimum chroma(C’) level from 0 to 255. - Pixels with values exceeding the min C’ level will blink in the screen, and displayed as red on the Waveform. •...

  • Page 23: Audio

    5. Menu Operations [6] Audio * 8 CH Side : Displays 8 channels on top right of the screen vertically. * 4 CH : Displays 2 channels on top left and 4 channels on top right of the screen horizontally. * 4 CH Side : Displays 4 channels on top right of the screen vertically.

  • Page 24: Display & Set

    5. Menu Operations [7] Display & Set • 3G Format - Used to select 3G-SDI A/B input format among NORMAL MODE(AUTO - A 422 10BIT_ YCbCr 50/60P), A 444 10/12BIT_YCbCr, A 444 10/12BIT_RGB, A 422 12BIT_YCbCr, B 444 10/12BIT_YCbCr, B 444 10/12BIT_RGB, B 422 12BIT_YCbCr, B 422 10BIT_YCbCr 50/60P.
  • Page 25 5. Menu Operations [7] Display & Set • Closed Caption - This item selects Closed Caption. - Available modes are OFF, 708, 608(LINE21), 608(ANC). * 608 : CEA-608-B, 708 : CEA-708-C standard display only. • TimeCode Enable - Used to set the time code among OFF, VITC and LTC.
  • Page 26 5. Menu Operations [7] Display & Set • Key Led Indication - The item turns on / off LED in front of the monitor. - Even though you turn off KEY LED, when you press LED button in front of the monitor, the LED is on and after 3 sec.

  • Page 27: Button Functions

    6. Button Functions [1] Analog Button [2] SDI Button • This product is capable of processing all • LVM-075A unit is capable of processing input signals usable in ANALOG mode. dual SDI Input signal. • The Analog input settings are as follows: 1.
  • Page 28 6. Button Functions [4] Function Key Set Button [5] SCAN Button • Used to make a quick setting of the • This product supports various scan modes. Function Key. • Press [SCAN] button on the front of the monitor to activate different scan modes. 1.

  • Page 29: Other Functions

    DOWN DOWN DOWN <RIGHT TOP> <RIGHT MID> <RIGHT BOTTOM> 7. Other Functions DOWN DOWN DOWN [1] Pixel to Pixel <MID BOTTOM> <LEFT BOTTOM> <LEFT MID> • Positions in HD Signal 1080i/1080p mode • LVM-075A monitor provide pixel count info DOWN DOWN using Pixel to Pixel mode.
  • Page 30 7. Other Functions [2] User Aspect • Select [Aspect] mode in the OSD menu to activate the[User Aspect] mode. • After activation, press the Knob to get ready for controlling. • Adjust the ratio using the Knob. # To adjust the 16:9 aspect ratio of 1920X1080 resolution into 2.35:1 aspect ratio, adjust the •...
  • Page 31 7. Other Functions [3] Waveform / Vectorscope • Waveform Y • VectorScope - Displays the Luma(Y’) component of the input - Displays the color components ‘B-Y’ and ‘R-Y’ signal into waveform. of the input signals onto the X-Y axis. - Two different types of Vetorscopes are displayed according to SD or HD input signals.
  • Page 32 7. Other Functions [4] Line Select [5] Zoom (Waveform/VectorScope) • Used to select specific Vertical Line for • Used to magnify the input signal from 0% to 90%. WaveForm/VectorScope. - It is available when LINE WaveForm is • Supports Zoom Width Scroll / Zoom Height activated.
  • Page 33 7. Other Functions [6] Luma(Y’) Zone Check • Color Pattern Type • Zebra Pattern Type - Displays the Luma(Y’) level of the input image - Displays the pixels with designated Luma(Y’) in colors. Y’ ≥ 100% : Pixels with higher Y’ level levels with zebra pattern.
  • Page 34 7. Other Functions [7] Focus Assist [8] Range Error • Focus Assist function assigns a color to the • Pixels with Y’ or C’ levels exceeding the pixels in the shape or boundary area of the designated levels of Y MAX, Y MIN, C MAX image to inform the user to make the best and C MIN shall blink.
  • Page 35 7. Other Functions [9] DSLR Scale • This function is designed for some DSLR • NIKON cameras(Canon 5D, 550D and Nikon - In StandBy/Record mode of NIKON, actual D7000) that output different resolution resolution of the output signal from HDMI from the operation mode (preview, terminal is 1440x1080, failing to display 16:9 recording, playback).
  • Page 36 7. Other Functions [10] Internal Pattern [10] HDMI To SDI Conversion-Out • Video source from ‘HDMI input’ terminal • Displays internally generated test patterns. can be output through ‘SDI throughout’ - The pattern consists of ColorBar and Pluge+ terminal. Grayscale Patterns. Full screen colors of various gray levels(0~100%) are also Note: HDSLR camera manufacturers usually embedded.

  • Page 37: Firmware Upgrage

    * During the update, the monitor screen is off, and nothing functions. * After the update, TVLogic logo shows up on the screen, and the monitor initializes. * Update can take 10~20min. depending on firmware kind.

  • Page 38: Product Specifications

    9. Product Specifications LVM-075A Size 7” Resolution 1920 X 1080 (16:9) Pixel Pitch 0.018(H) X 0.018(W) mm Color Depth 16.7M (True 8bit) Viewing Angle H : 170 degrees / V : 170 degrees Luminance of white 600 cd/ m (Center) Contrast Ratio 800 : 1 Display Area...

  • Page 39: Optional Accessories

    10. Optional Accessories Sun-Hood External Acrylic Protector V-Mount Gold-Mount Tripod Ball Head Carrying Bang with Hood (Rain Cover) External Tally Rack Mountable Kit Multi Format LCD Monitor 39...
  • Page 40 MEMO 40 Multi Format LCD Monitor...
  • Page 41 MEMO Multi Format LCD Monitor 41...
  • Page 42 MEMO 42 Multi Format LCD Monitor...
  • Page 44 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08590, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
