TVLogic LVM-172W Operation Manual page 9

Name & Function of Each Part
[BRIGHT] Knob
- Used to adjust the degree of brightness. - The value is selectable between -128 ~ 127.
[CHROMA] Knob
- Used to adjust the saturation of the image. - The value is selectable between -128 ~ 127.
# This feature is not available in DVI Graphic mode and DVI Analog.
[CONTRAST] Knob
- Used to adjust the contrast.
- The value is selectable between -128 ~ 127.
[VOLUME] Knob
- Used to adjust the volume for internal speaker and external output.
- The value is selectable between 0 ~ 20.

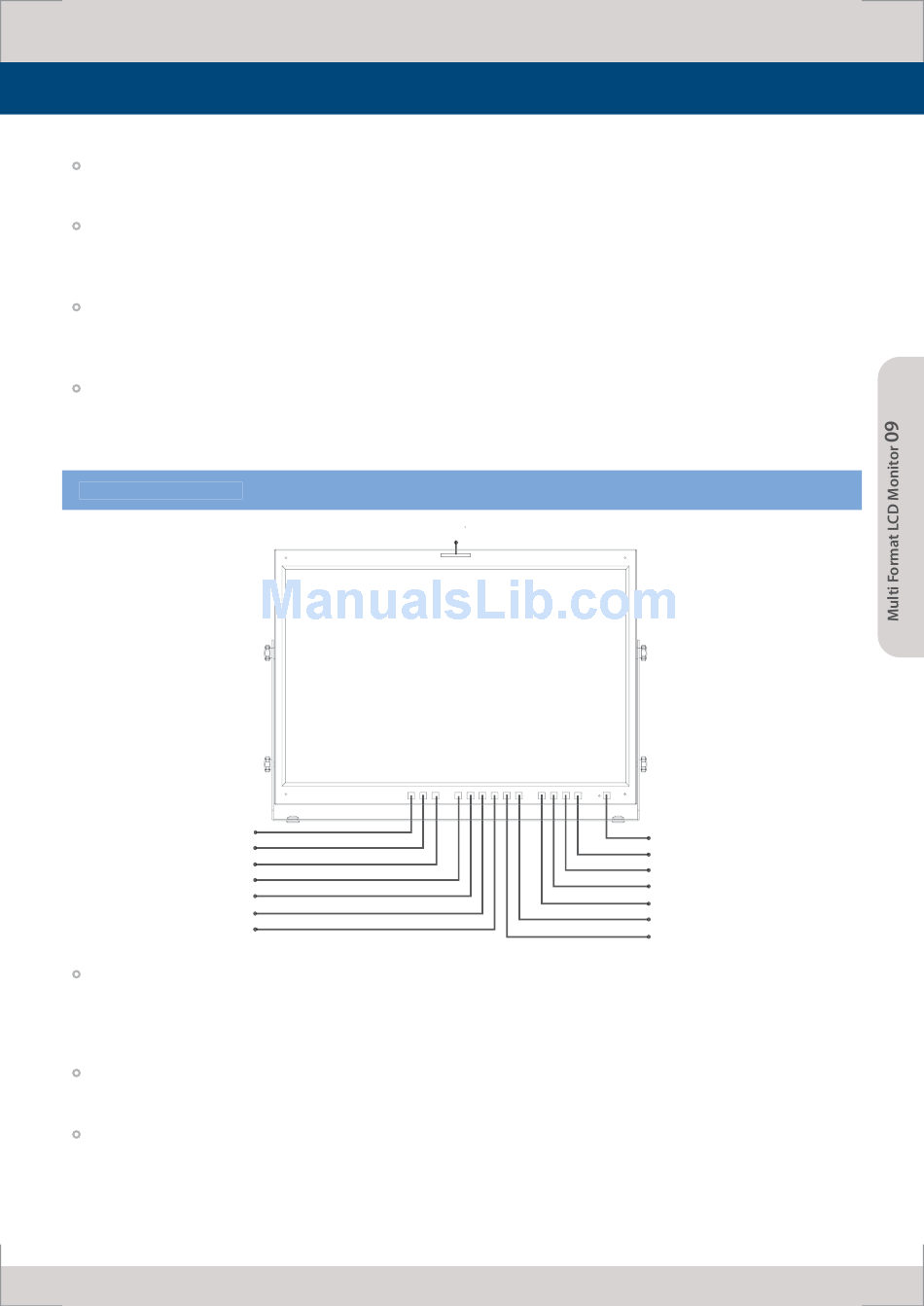

LVM-242W FRONT
ANALOG
SDI-A
SDI-B
SCAN
ASPECT
MARKER
H/V DELAY
[ANALOG] Button/Lamp
- Used to select desired Analog/DVI input. (CVB1/2/3, S-Video, Component, RGB, DVI Digital, DVI Analog)
- Press the button to activate the analog input menu-selection, then use UP and DOWN button to select
desired input.
[SDI-A] / [SDI-B] Button/Lamp
- Used to select SDI-A/SDI-B input.
[SCAN] Button/Lamp
- Used to change the scan mode. Press the button to activate through the scan modes: OVER SCAN -> USER
ASPECT -> ZERO SCAN -> UNDER SCAN -> 1:1 SCAN -> FIT WIDTH
* See section "Other Functions [3]SCAN Button" for more information.
# [USER ASPECT] : User can adjust width and height of the display.
* See section "Other Functions [4] Pixel to Pixel and [5] User Aspect" for more information.
TALLY L L
POWER
ENTER/VOL
UP/CONTRAST
DOWN/BRIGHT
MENU
CHROMA/PHASE
BLUEONLY/MONO
