Slot Cycle Length

This menu item is for information only and displays the Slot Cycle Length in
milliseconds and bytes for the remotes in the group. This value represents the
total amount of time—preamble, data length, and guardband—allocated to the
remote modem during one spin cycle.

Slot Start in Cycle

This menu item is an information-only display for Remote modems, and indi-
cates how much time passes from the start of the spin cycle until this Remote is
provided a time slot. In the example shown in figure 3-8, the Remote is
provided the first slot in the cycle (0 mSec).

Set Remotes

This menu item appears in the STDMA screen when the Unit Role is Hub,
except for Hub Type ECMv2.
From a Hub CDM-570/570L, entering R at the command prompt displays the
STDMA Remotes Menu.

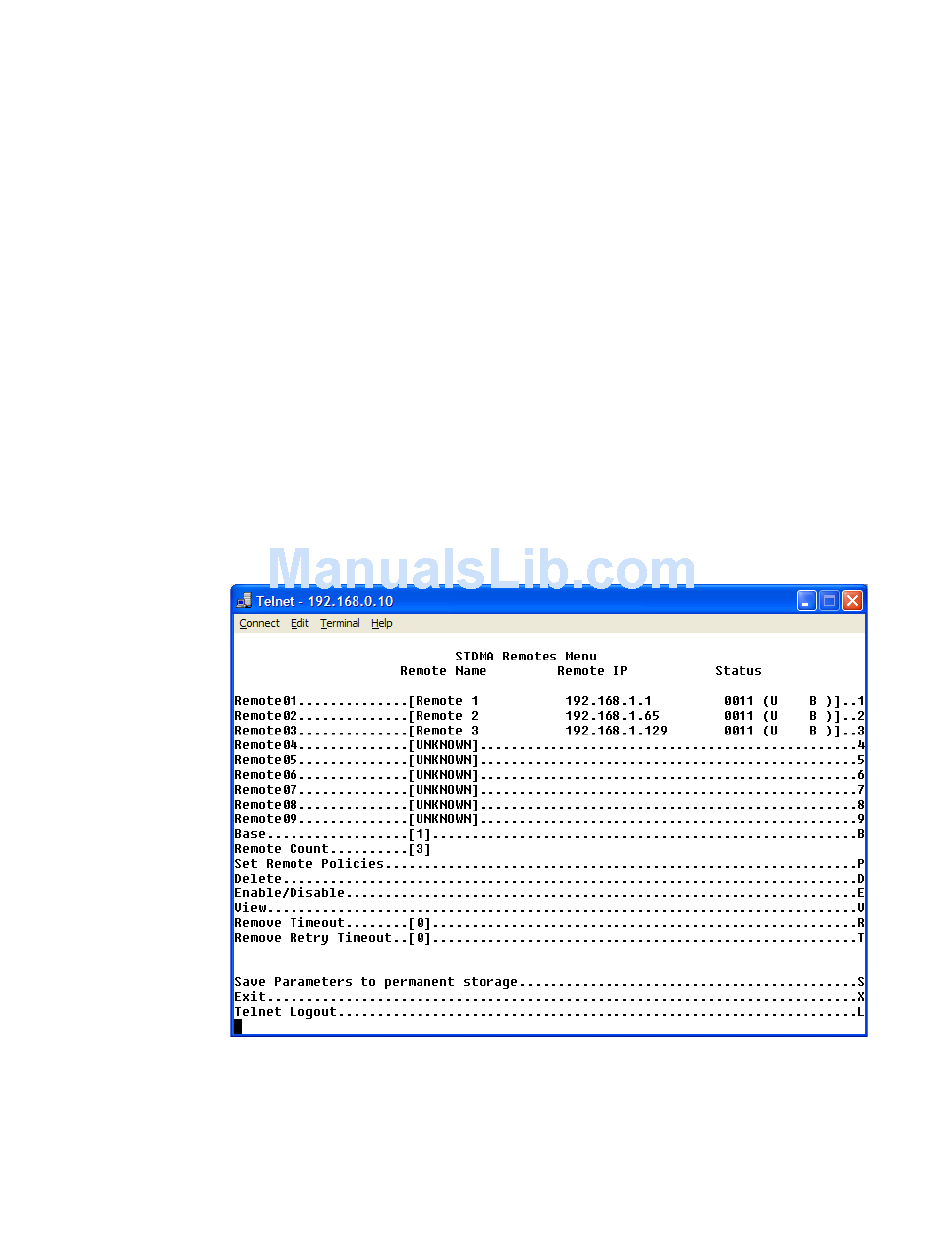

STDMA Remotes Menu screen
Figure 3-20
