Note: The value shown in the TOS Value column is the TOS ID associated
NOTE

View

Entering a V at the command prompt will display the Internal TOS Table for
active entries as shown in figure 3-62.
Note that, due to binary conversion, the ID value is a multiple of 4 and the
Timout value is a multiple of 2.

Hitless Switching Parameters

Unless inherent delays in configuring both ends of a satellite bandwidth link
during dynamic switching are accounted for, transmitted data may be lost
during the transition. The time for a switch command to be sent across the satel-
lite link (~ 250 ms), the command processing time, as well as receiver acquisi-
tion time must be considered. The Vipersat Hitless Switching feature provides
a means to coordinate timing and utilize buffering to eliminate these data
outages.
To access the Hitless Switching screen, enter H from the STDMA/SCPC Auto
Switching screen (see figure 3-41).
C h ap t e r U s i n g t h e C o m m a n d L in e I n t e r f a c e ( C L I )
3 -
with the ToS entry to be deleted.

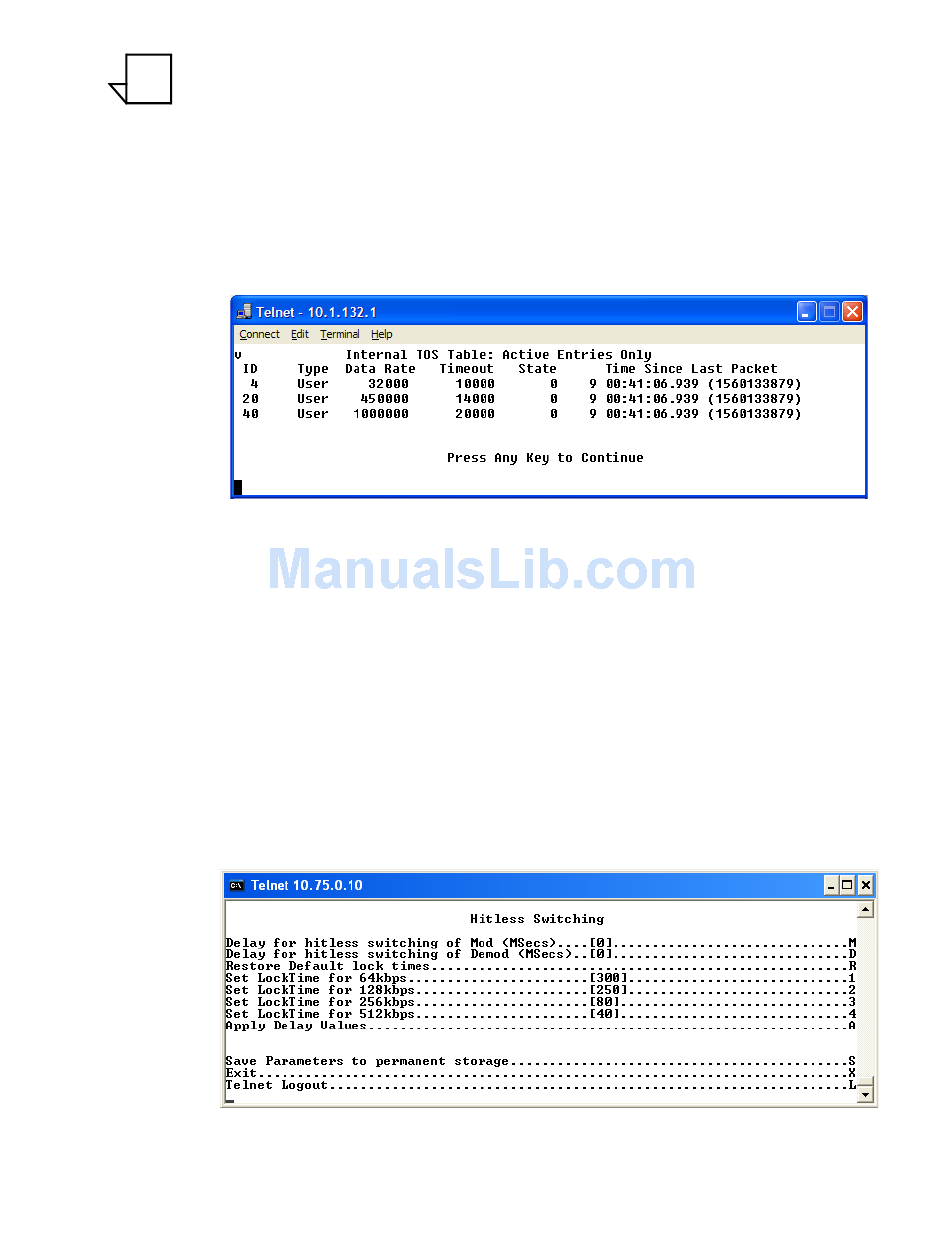

Figure 3-62
Figure 3-63
V i p e r s a t C o n f i g u r a t io n
ToS View screen
Hitless Switching screen
3-47
