Menu Descriptions

This section details the CLI command menus and briefly discusses the function
of each of the commands available on each menu.

Main Menu

The Main Menu, shown in figure 3-1, allows configuring both the modem and
router functions of the target CDM-570/570L.
Note: The entry Vipersat Configuration shown in figure 3-1 will only be
NOTE
A Vipersat CDM-570/570L is normally shipped with the Vipersat option
enabled. You can verify the CDM-570/570L configuration by checking that the
command line Vipersat Configuration is displayed on the menu as shown in
Figure 3-1.

Administration

The Administration Menu provides access to the major Vipersat CDM-570/
570L features and commands. Entering an A at the prompt in the Main Menu,
shown in figure 3-1 displays the Administration screen shown in figure 3-2.
C h ap t e r U s i n g t h e C o m m a n d L in e I n t e r f a c e ( C L I )
3 -
displayed if the target CDM-570/570L has had the Vipersat option
enabled as described in the section "Setting Vipersat CDM-570/570L
Operating Parameters" on page 2-3.

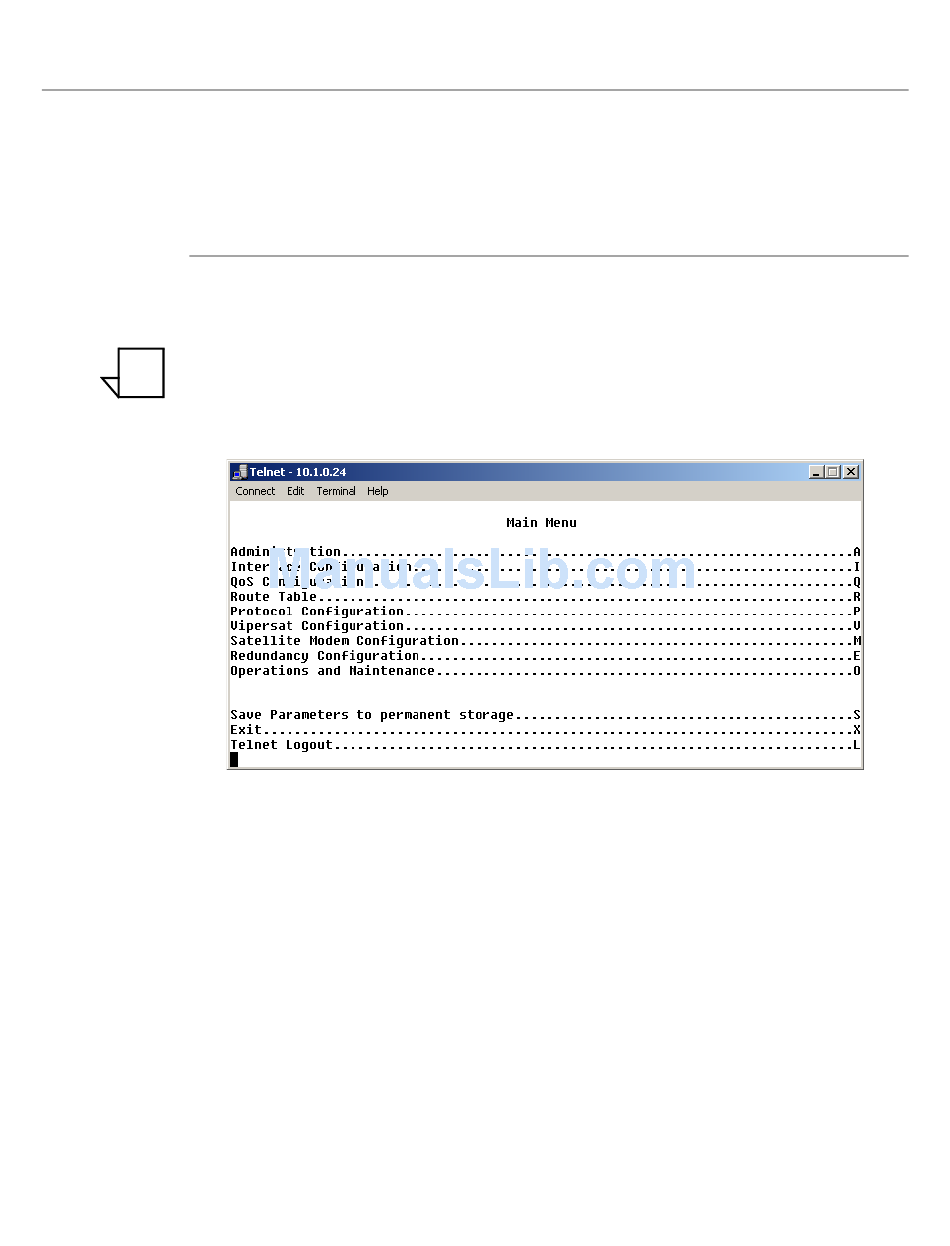

Figure 3-1
Main Menu screen
M e n u D e s c r i p t i o n s
3-3
