The menu shown in figure 3-20 is used to define and make modifications to the
Remotes that belong to the STDMA group for the Hub burst controller, as well
as to display each Remote's burstmap status information.

Adding a Remote to the STDMA Group

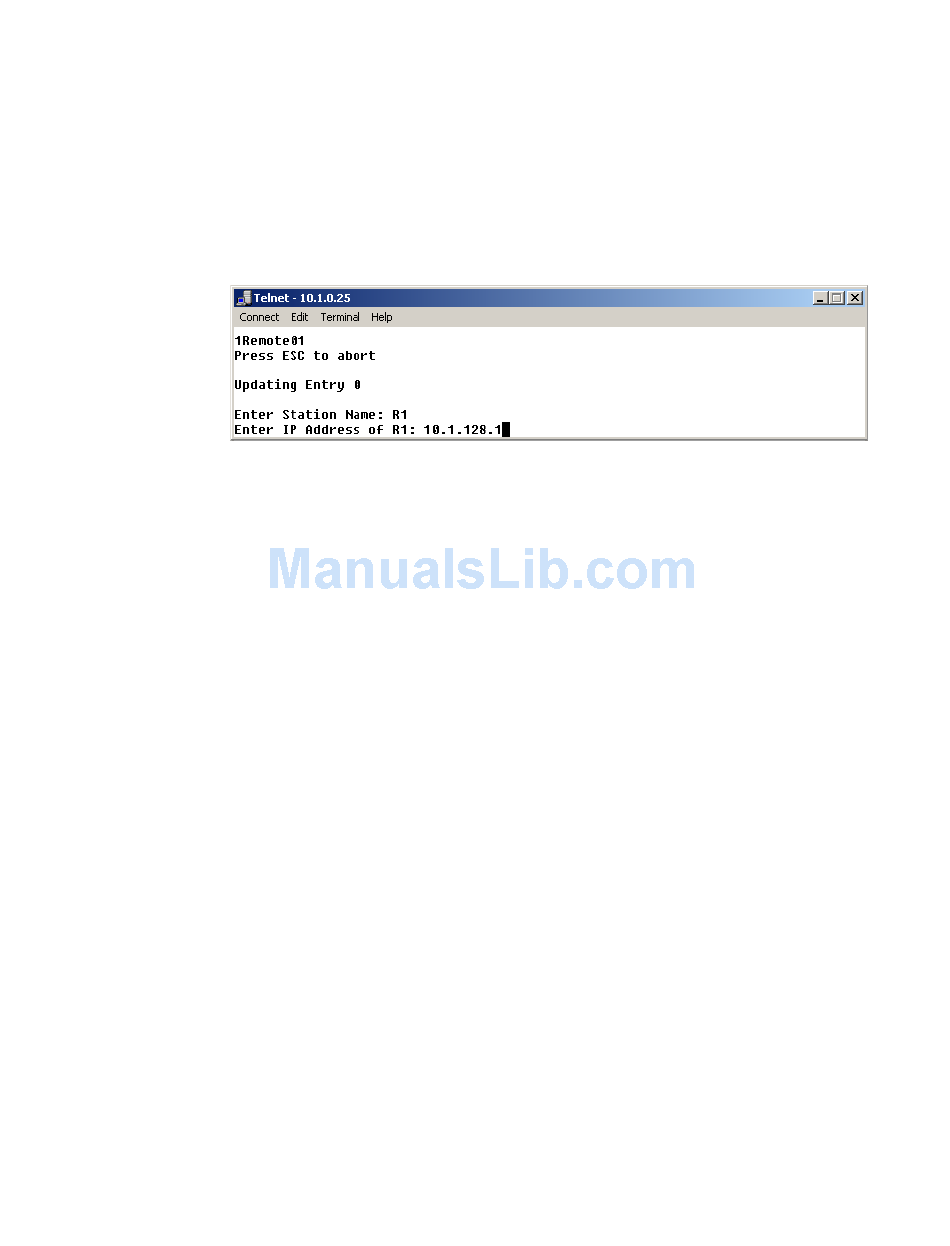

Entering the item number for the Remote modem/router brings up the dialog
shown in figure 3-21. A prompt to enter the Name for the Remote unit appears,
followed by a prompt to enter the IP Address.
Once a Remote has been added to the group, its Status in the group is displayed
by the use of the following letters:
• U = Used – This Remote is being used in the burstmap.
• B = Burstmap – This Remote is currently in the burstmap.
• R = Removed – This Remote is currently removed from the burstmap.
• D = Disabled – This Remote is currently disabled and is not in the
• S = Switched – This Remote is currently switched into SCPC mode.
• H = Home State Revert – This Remote is not currently receiving burst
C h ap t e r U s i n g t h e C o m m a n d L in e I n t e r f a c e ( C L I )
3 -
Figure 3-21
Once a remote has been added to the STDMA group, this status will
always be displayed.
This status will be displayed unless the remote has been removed (R),
disabled (D), or switched (S) out of the STDMA burstmap.
When displayed, this status indicates that the Hub has removed this remote
from the burstmap due to a communications fault.
burstmap.
This status will be displayed when a remote is manually disabled by the
operator or administrator.
When displayed, this status indicates that the VMS has automatically
switched the remote out of the burstmap and into SCPC operation.
maps. When a remote, stuck in SCPC mode by failure to receive a VMS
revert command, sees the burst map with this flag set, it will automatically
revert to its home state and STDMA mode.
Adding a Remote to the STDMA group
