Load Switching—STDMA Hub
Before discussing how load switching is determined, it is necessary to explain
the modem/router parameters that control the switch.

Hub Switching Parameters

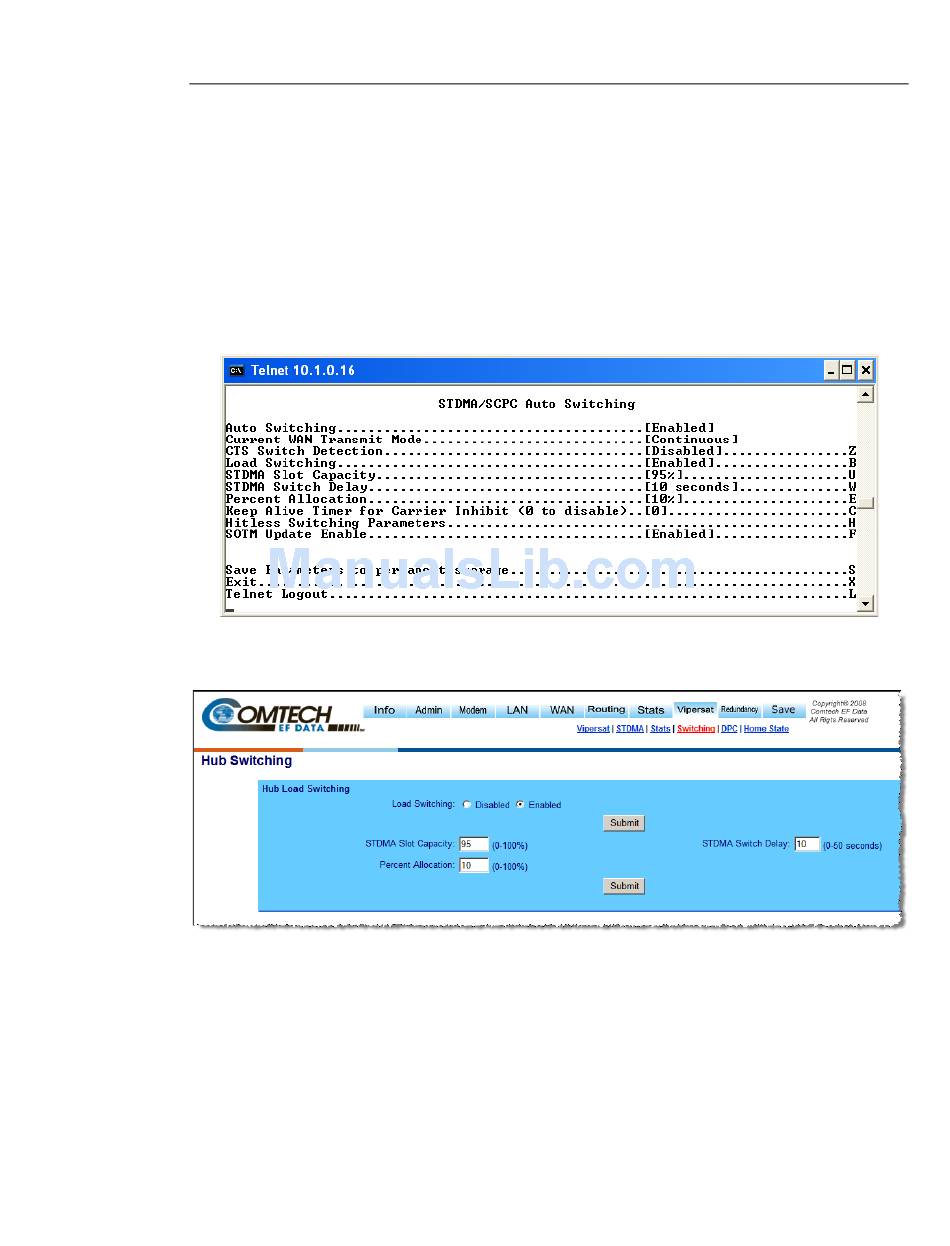

The screens shown in figure B-1 (CDM-570/570L modem/router) and
figure B-2 (SLM-5650A modem/router) are examples that show the entries in
the Automatic Switching page at the Hub that are used to control load switch-
ing.
• Auto Switching – This is a Vipersat feature that is enabled in the CDM-
A p p e n d i x B - A u t o m a t i c S w i t c h i n g
Figure B-1
Figure B-2
570/570L Features menu. If Auto Switching is not enabled, Load
Switching will be ignored. There is no automatic switching enable button
in the SLM-5650A modem configuration menus; the operator enables
each switching function individually.
Auto Switching Menu, CDM-570/570L Hub
Hub Load Switching Page, SLM-5650A
L o a d S w i t c h in g
B-7
