V i p e r s a t C o n f i g u r a t io n
The QoS mode that is chosen will determine the settable parameters for defining
QoS rules.
Enter Q at the command prompt in figure 3-42 to access the QoS Rules Config-
uration screen. The example shown in figure 3-44 is for Max/Priority mode.

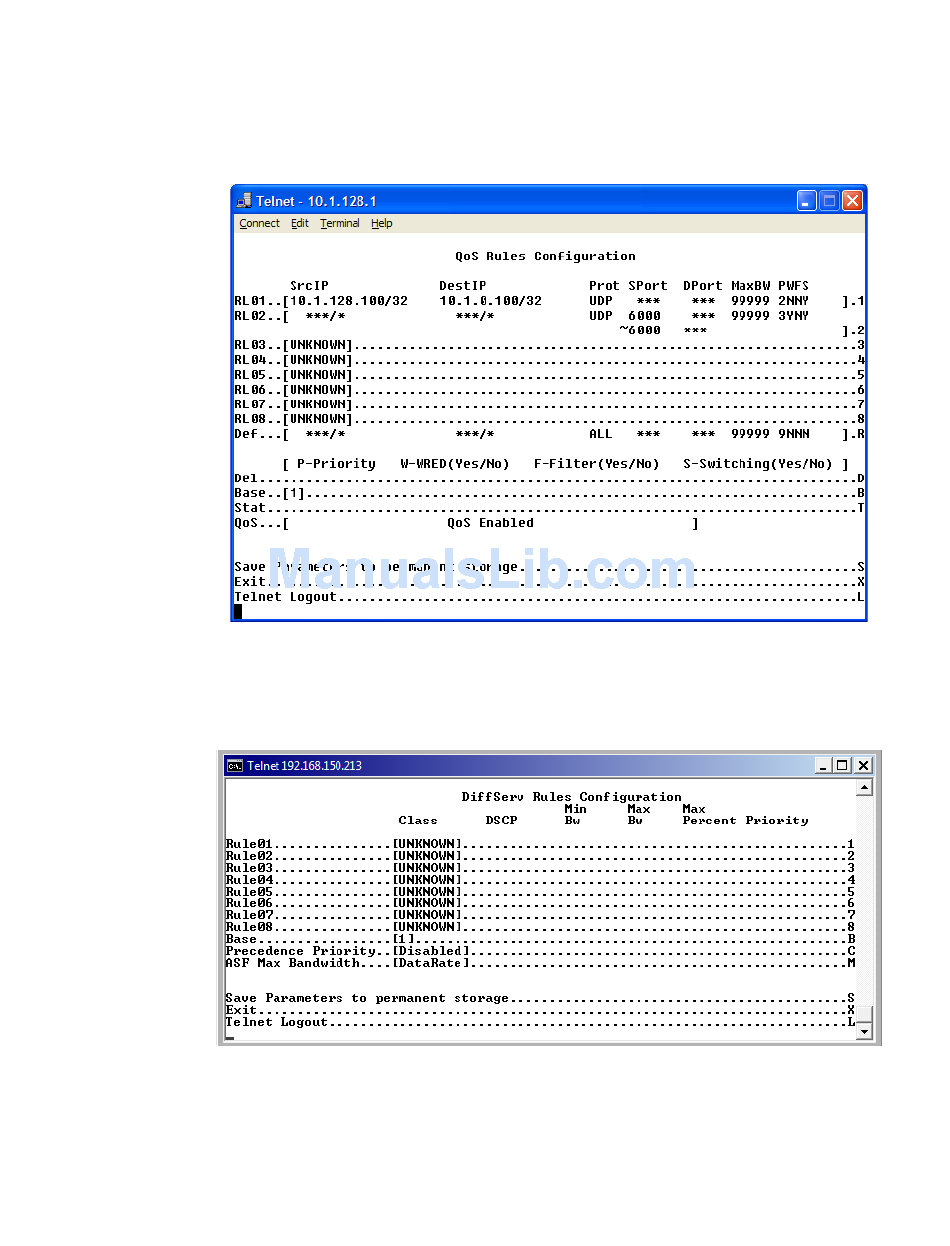

Figure 3-44
QoS Rules Configuration screen, Max/Priority Mode
Enter D at the prompt in figure 3-42 to access the DiffServ Rules Configura-
tion screen.
Figure 3-45
DiffServ Rules Configuration screen
C h ap t e r U s i n g t h e C o m m a n d L in e I n t e r f a c e ( C L I )
3 - 3-37
