I n i t i a l C o n f i gu r a t i o n
4.

Set the Satellite Modem Configuration

1.
2.
Note: Only Turbo Product Coding is acceptable for FEC when the CDM-570/
NOTE
3.
4.
2-10
Address must be defined also. Otherwise, this route is automatically cre-
ated and can be viewed with the Display command.
Enter S at the command prompt in figure 2-7 to save the settings to flash.
Enter M from the Main Menu, then enter C from the Satellite Modem
menu to access the Configuration screen.

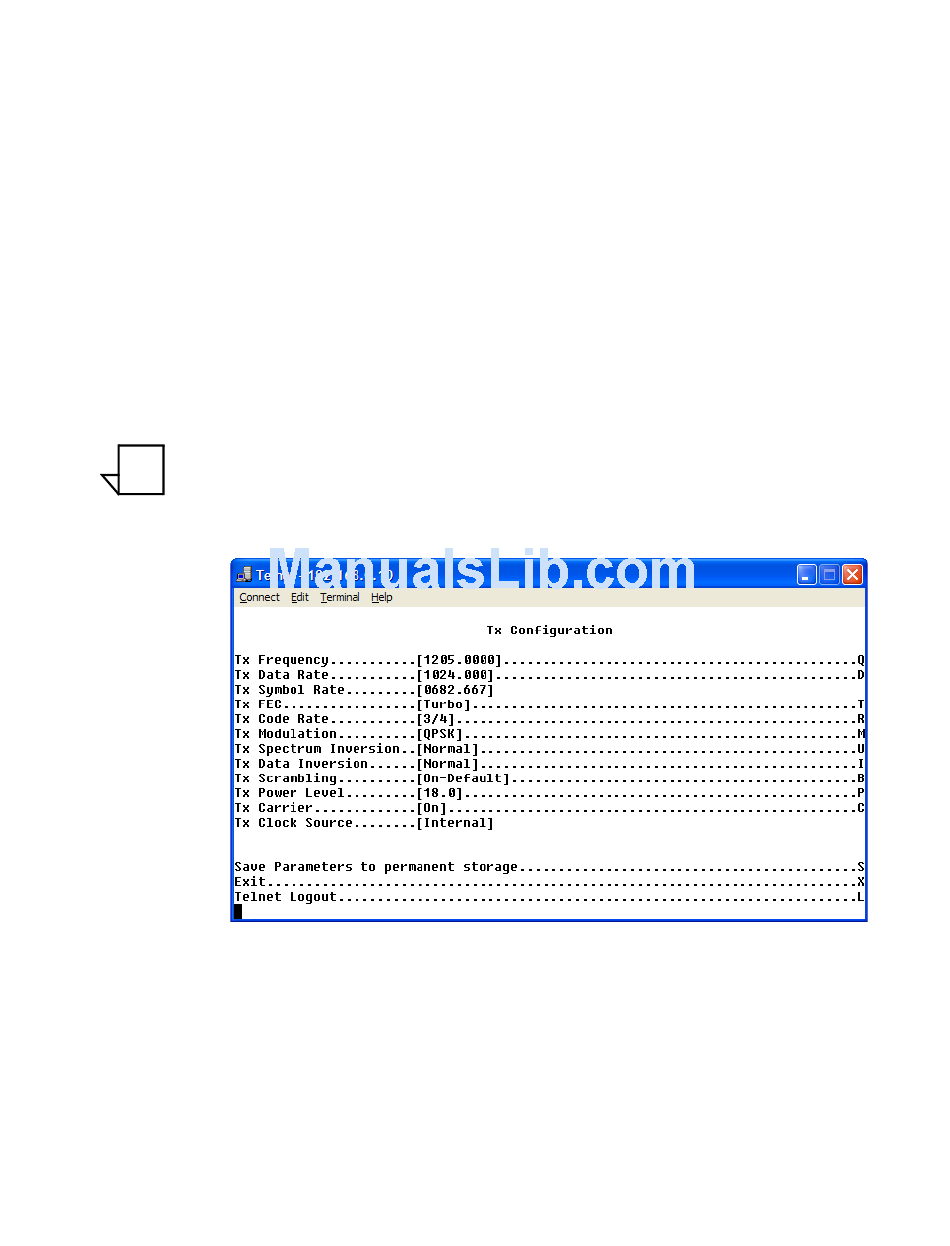

Enter T to access the Tx Configuration screen shown in figure 2-8. Set
the Tx parameters for Frequency, Data Rate, FEC, Code Rate, and
Modulation as specified by the network administrator.
570L is running in Vipersat mode.
Figure 2-8
Enter R to access the Rx Configuration screen, and set the Rx parameters
as specified by the network administrator.
Save the settings to flash by entering S at the command prompt.
Tx Configuration screen
