DVR User's Manual
Appendix C: Connect Analog Camera via UTP
Converter
Introduction:
The UTP converter is made especially for users who want to
build a connection between an UTP DVR and a traditional
analog camera, which allows the transmission of power and
video signal through one CAT5 cable.
The UTP converter has two cables at one end: one cable for
connecting with the camera's BNC video connector; the
other for connecting with power jack of the camera.
A RJ-45 connector is positioned at the other end of the
converter. Connect the UTP converter and the UTP DVR
using a CAT5 cable.
Installation:

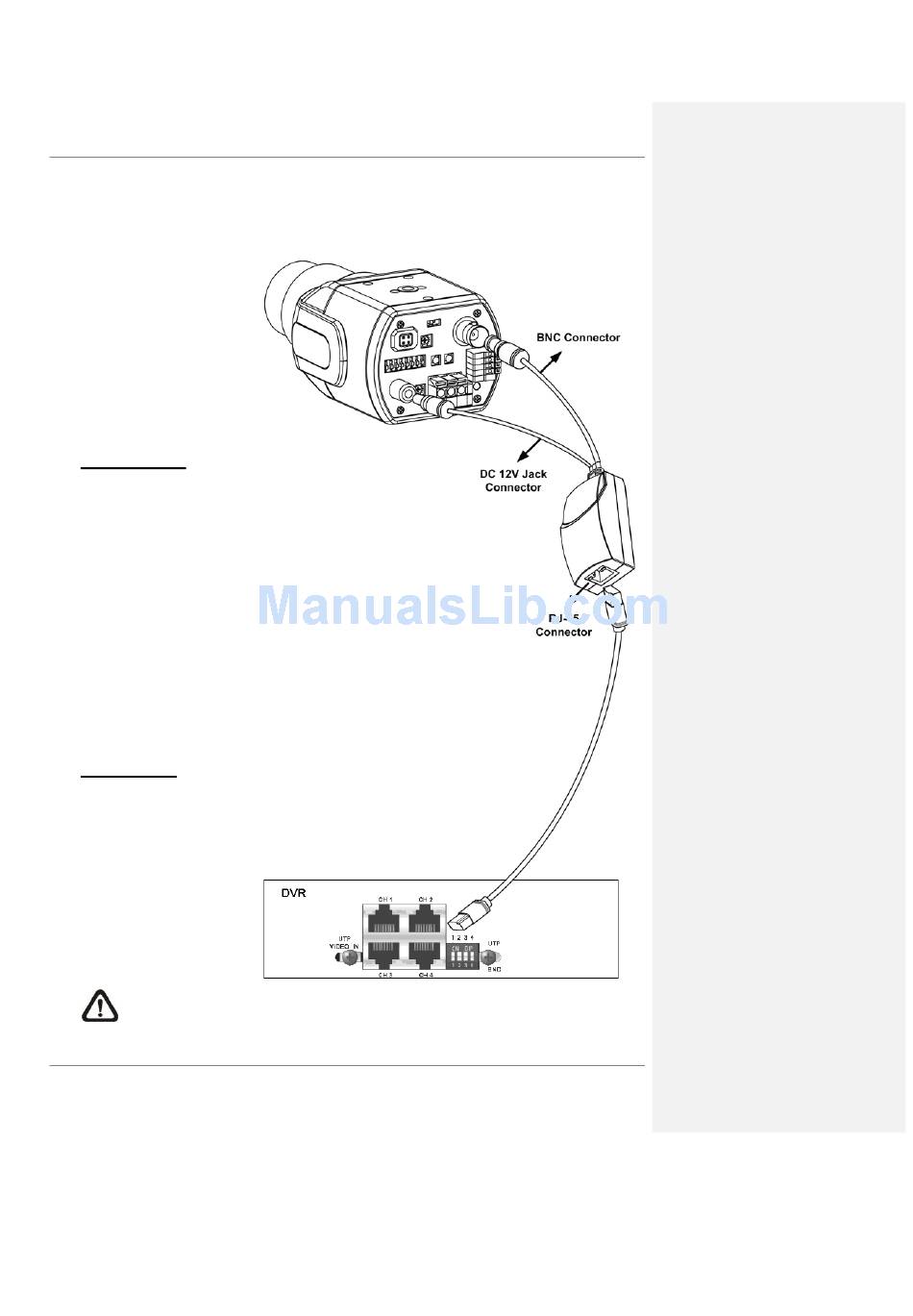

To build up an UTP connection using the UTP converter,
connect the BNC and power connectors to camera
respectively, and connect with the DVR using an Ethernet
CAT5 cable.
NOTE: The UTP Converter can provide power up to 5.5W. If the power
consumption of the camera is higher than 5.5W, do NOT connect it to the
UTP Converter.
60
