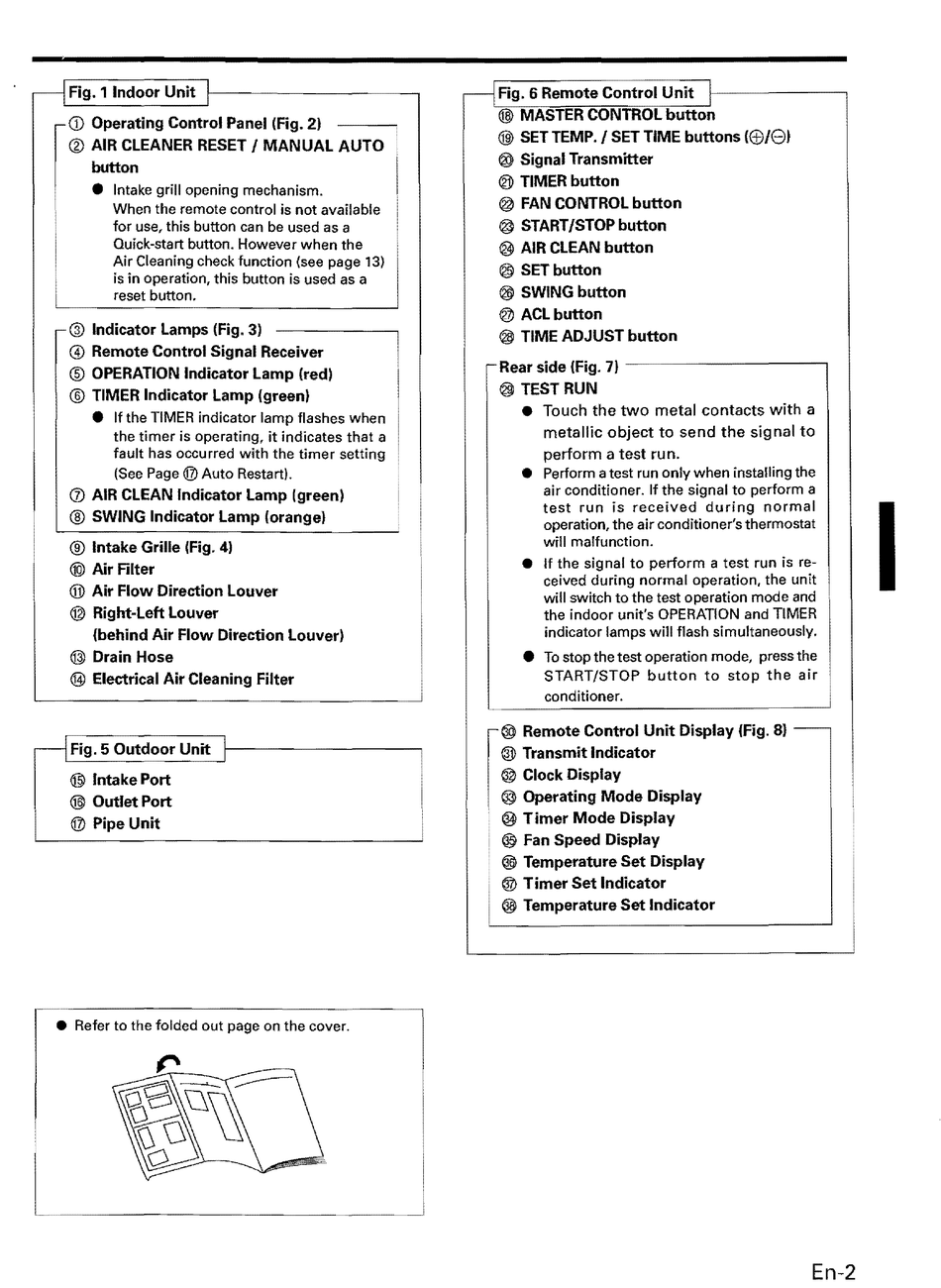

Fig. 1 Indoor Unit
CD
Operating Control Panel (Fig. 2,
ev
AIR CLEANER RESET
I
MANUAL AUTO
button
• Intake grill opening mechanism.
When the remote control is not available
for use, this button can be used as a
Quick-start button. However when the
'
Air Cleaning check function (see page 13)
is in operation, this button is used as a
reset button.
@ Indicator Lamps (Fig. 3,
@ Remote Control Signal Receiver
®
OPERATION Indicator Lamp (red)
®
TIMER Indicator Lamp (green)
• If the TIMER indicator lamp flashes when
the timer is operating, it indicates that a
fault has occurred with the timer setting
(See Page
®
Auto Restart).
(J)
AIR CLEAN Indicator Lamp (green)
®
SWING Indicator Lamp (orange)
®
Intake Grille (Fig. 4)
®l
Air Filter
®
Air Flow Direction Louver
@) Right-Left Louver
(behind Air Flow Direction Louver)
@ Drain Hose
@ Electrical Air Cleaning Filter
Fig. 5 Outdoor Unit
@ Intake Port
@ Outlet Port
®
Pipe Unit
• Refer to the folded out page on the cover.
~
Fig. 6 Remote Control Unit
11---------,
@)
MASTER CONTROL button
@>
SET TEMP.
I
SET TIME buttons (±)/8)
<p
Signal Transmitter
@
TIMER button
@ FAN CONTROL button
@ STARTISTOP button
@
AIR CLEAN button
SET button
@ SWING button
@ ACLbutton
@ TIME ADJUST button
r-
Rear side (Fig. 7) - - - - - - - - - - - ,
@ TEST RUN
• Touch the two metal contacts with a
metallic object to send the signal to
perform a test run.
• Perform a test run only when installing the
air conditioner. If the signal to perform a
test run is received during normal
operation, the air conditioner's thermostat
will malfunction.
• If the signal to perform a test run is re ­
ceived during normal operation, the unit
will switch to the test operation mode and
the indoor unit's OPERATION and TIMER
indicator lamps will flash simultaneously.
• To stop the test operation mode, press the
START/STOP button to stop the air
conditioner.
@ Remote Control Unit Display (Fig. 8) ­
@ Transmit Indicator
r
@ Clock Display
I
@ Operating Mode Display
. @ Timer Mode Display
@ Fan Speed Display
®
Temperature Set Display
·
®
Timer Set Indicator
®
Temperature Set Indicator
I
I
