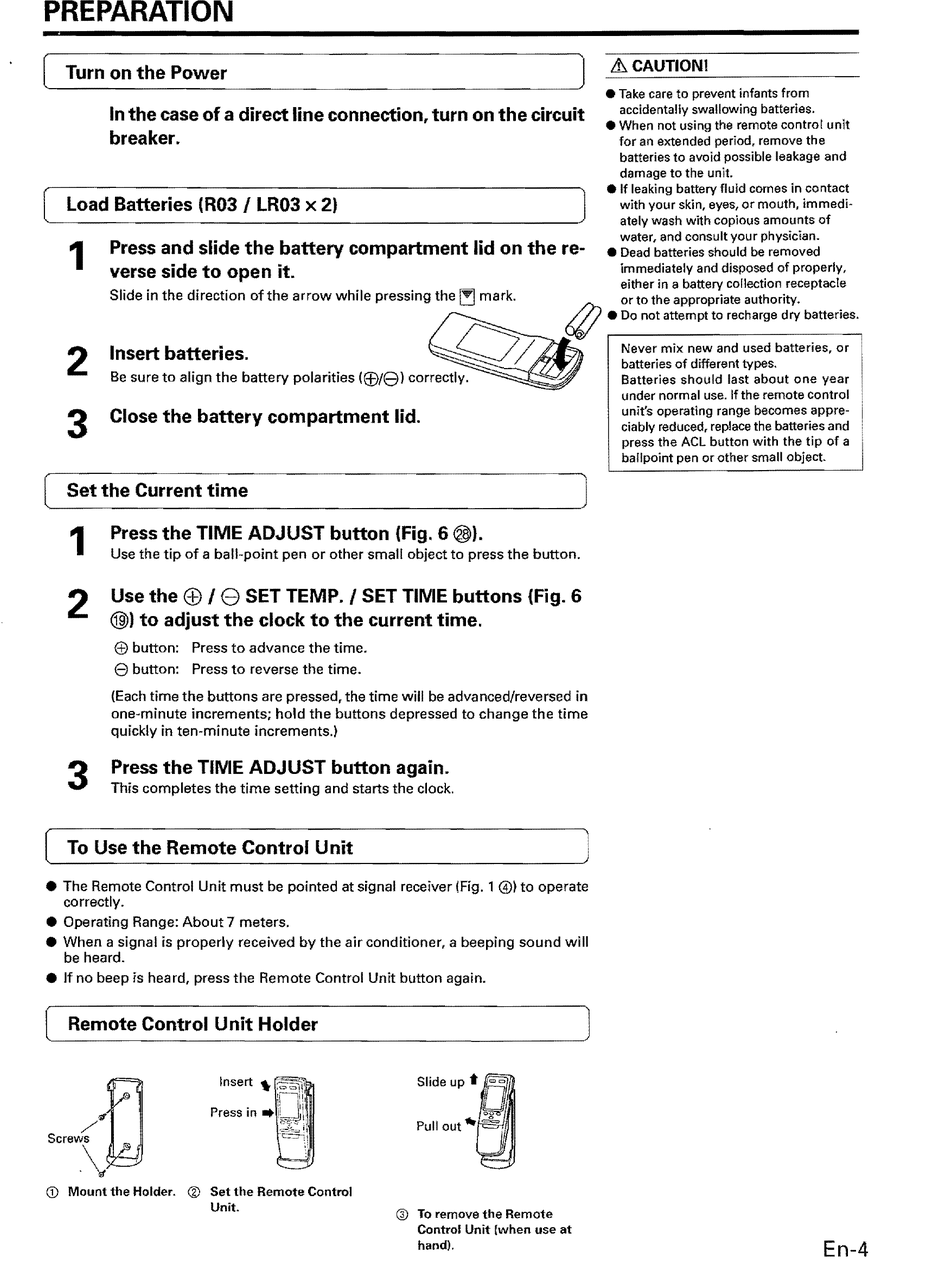

PREPARATION
&CAUTIONI
~~_u_r_n_o_n
_ _ t_h_e_p_o_vv_e_r _ _____________________________
~J
In the case of a direct line connection, turn on the circuit
breaker.
Load Batteries (R03
I
LR03 x 2)
1
Press and slide the battery compartment lid on the re­
verse side to open it.
Slide in the direction of the arrow while pressing the
[!I
mark.
$
Insert batteries.
2
Be sure to align the battery polarities
(Ef)/8l
correctly.
3
Close the battery compartment lid.
[ Set the Current time
• Take care to prevent infants from
accidentally swallowing batteries.
• When not using the remote control unit
for an extended period, remove the
batteries to avoid possible leakage and
damage to the unit.
• If leaking battery fluid comes in contact
with your skin, eyes, or mouth, immedi ­
ately wash with copious amounts of
water, and consult you r physician.
• Dead batteries should be removed
immediately and disposed of properly,
either in a battery collection receptacle
or to the appropriate authority.
.
Do not attempt to recharge dry batteries.
Never mix new and used batteries, or
batteries of different types.
Batteries should last about one year
under normal use. If the remote control
unit's operating range becomes appre ­
ciably reduced, replace the batteries and
press the ACL button with the tip of a
ballpoint pen or other small object.
1
Press the TIME ADJUST button (Fig. 6@).
Use the tip of a ball-point pen or other small object to press the button.
2
Use the
EB
I
e
SET TEMP.
I
SET TIME buttons (Fig. 6
@) to adjust the clock to the current time.
ED
button: Press to advance the time.
e
button: Press to reverse the time.
(Each time the buttons are pressed, the time will be advanced/reversed in
one-minute increments; hold the buttons depressed to change the time
quickly in ten-minute increments.)
3
Press the TIME ADJUST button again.
This completes the time setting and starts the clock.
To Use the Remote Control Unit
• The Remote Control Unit must be pOinted at signal receiver (Fig. 1
@)
to operate
correctly.
• Operating Range: About 7 meters.
• When a signal is properly received by the air conditioner, a beeping sound will
be heard.
• If no beep is heard, press the Remote Control Unit button again.
Remote Control Unit Holder
J
Insert "
G)
Mount the Holder.
®
Set the Remote Control
Unit.
G)
To remove the Remote
Control Unit [when use at
hand).
En-4
