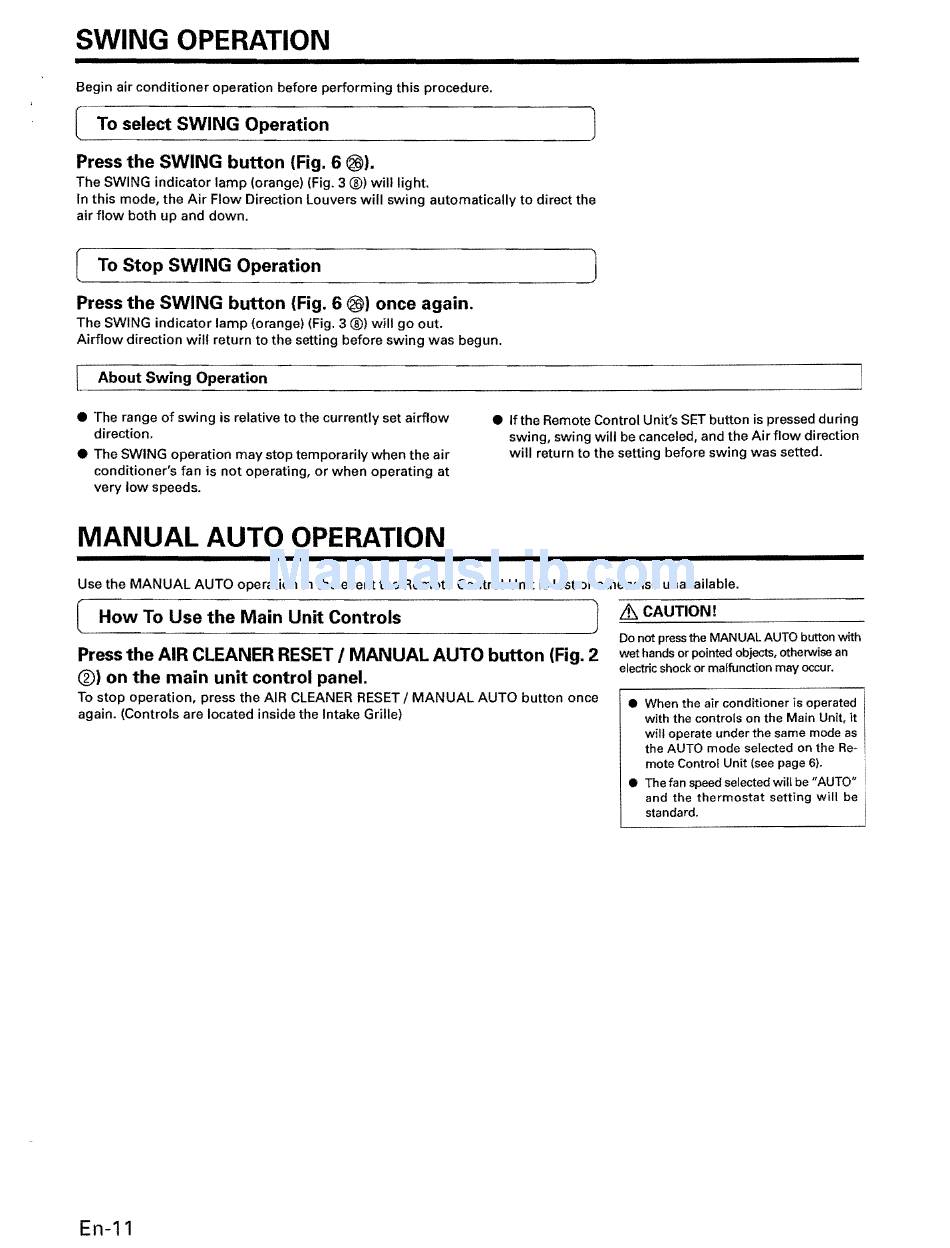

SWING OPERATION
Begin air conditioner operation before performing this procedure.
[ To select SWING Operation
Press the SWING button (Fig. 6
@).
The SWING indicator lamp (orange) (Fig. 3 @) will light.
In this mode, the Air Flow Direction Louvers will swing automatically to direct the
air flow both up and down.
[ To Stop SWING Operation
Press the SWING button (Fig. 6 @) once again.
The SWING indicator lamp (orange) (Fig. 3
®)
will go out.
Airflow direction will return to the setting before swing was begun .
• The range of swing is relative to the currently set airflow
direction.
• The SWING operation may stop temporarily when the air
conditioner's fan is not operating, or when operating at
very low speeds.
• If the Remote Control Unit's SET button is pressed during
swing, swing will be canceled, and the Air flow direction
will return to the setting before swing was setted .
MANUAL AUTO OPERATION
Use the MANUAL AUTO operation in the event the Remote Control Unit is lost or otherwise unavailable.
CAUTION!
How To Use the Main Unit Controls
Do not press the MANUAL AUTO button
with
Press the AIR CLEANER RESET
I
MANUAL AUTO button (Fig. 2
®)
on the main unit control panel.
To stop operation, press the AIR CLEANER RESET
I
MANUAL AUTO button once
again. (Controls are located inside the Intake Grille)
wet hands or pointed objects, otherwise an
electric shock or malfunction may occur.
• When the air conditioner is operated
with the controls on the Main Unit, it
will operate under the same mode as
the AUTO mode selected on the Re­
mote Control Unit (see page 6).
• The fan speed selected will be "AUTO"
and the thermostat setting will be :
standard.
En-11
