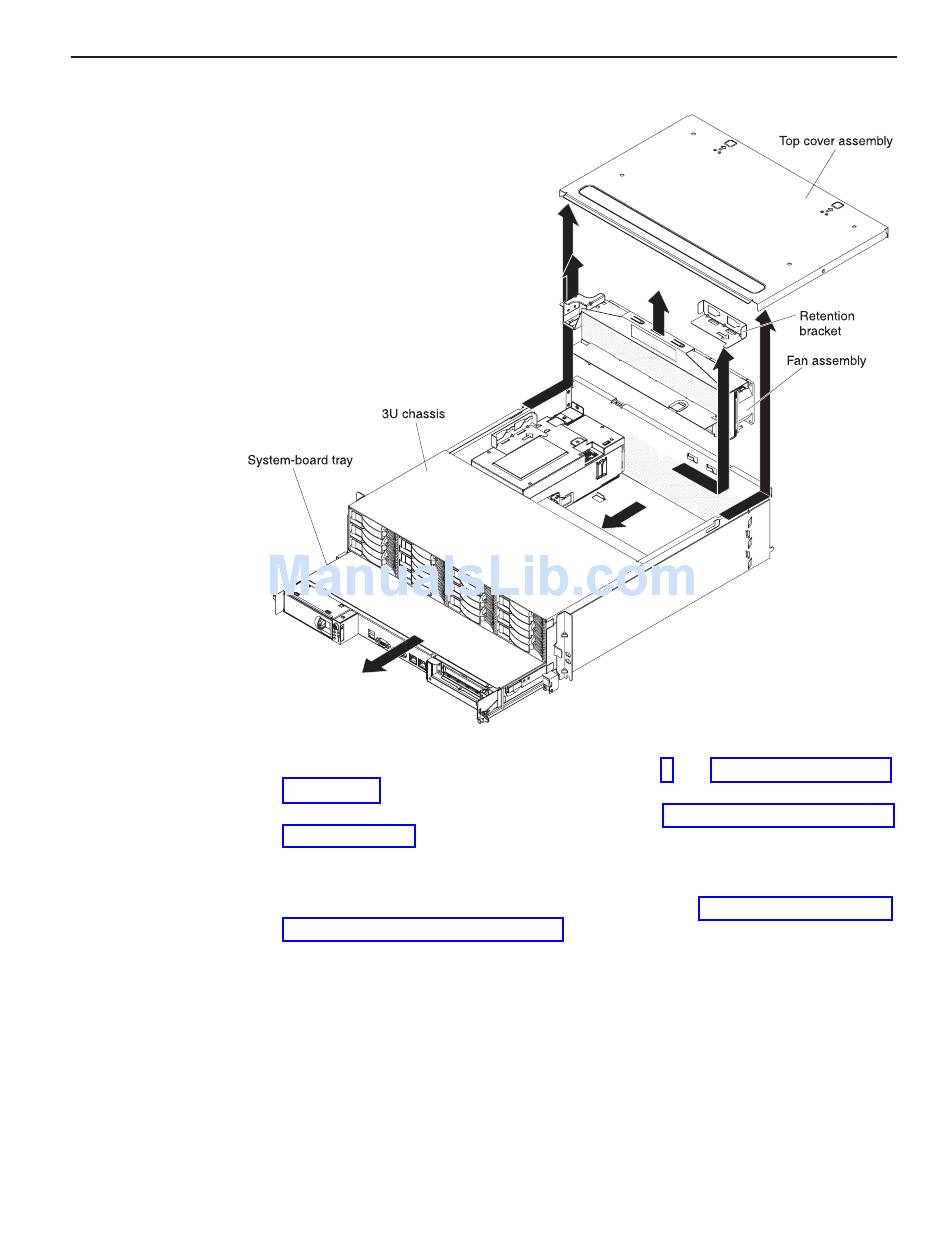

Removing a system-board tray from a 3U chassis

To remove a system-board tray from a 3U chassis, complete the following steps:

1. Read the safety information that begins on page v and "Installation guidelines"

on page 23.

2. Turn off the server and all attached devices (see "Turning off the system-board

tray" on page 22).

3. If external cables are connected to the front of the system-board tray, note

where they are connected; then, remove them.

4. Remove the 3U chassis from the iDataPlex rack (see "Removing a 3U chassis

from an iDataPlex rack" on page 25).

5. Press on the two release latches at the top-rear edge of the top-cover

assembly; then, slide the top-cover assembly toward the rear of the 3U chassis

and remove it.

6. Slide the retention bracket to release it and remove the bracket from the

chassis.

7. Lift up on both fan-assembly handles and remove the fans from the 3U

chassis.

8. Note the cable routing and connection locations; then, disconnect the cables

that connect the system-board tray to the 3U chassis.

9. Push on the back edge of the system-board tray from inside the 3U chassis

and slide the system-board tray forward.

Chapter 3. Installing optional devices
