Chapter 2. Components, features, and controls
This section describes the server components and configurations, the server
controls and light-emitting diodes (LEDs), and how to turn the system-board tray on
and off.
System-board tray components

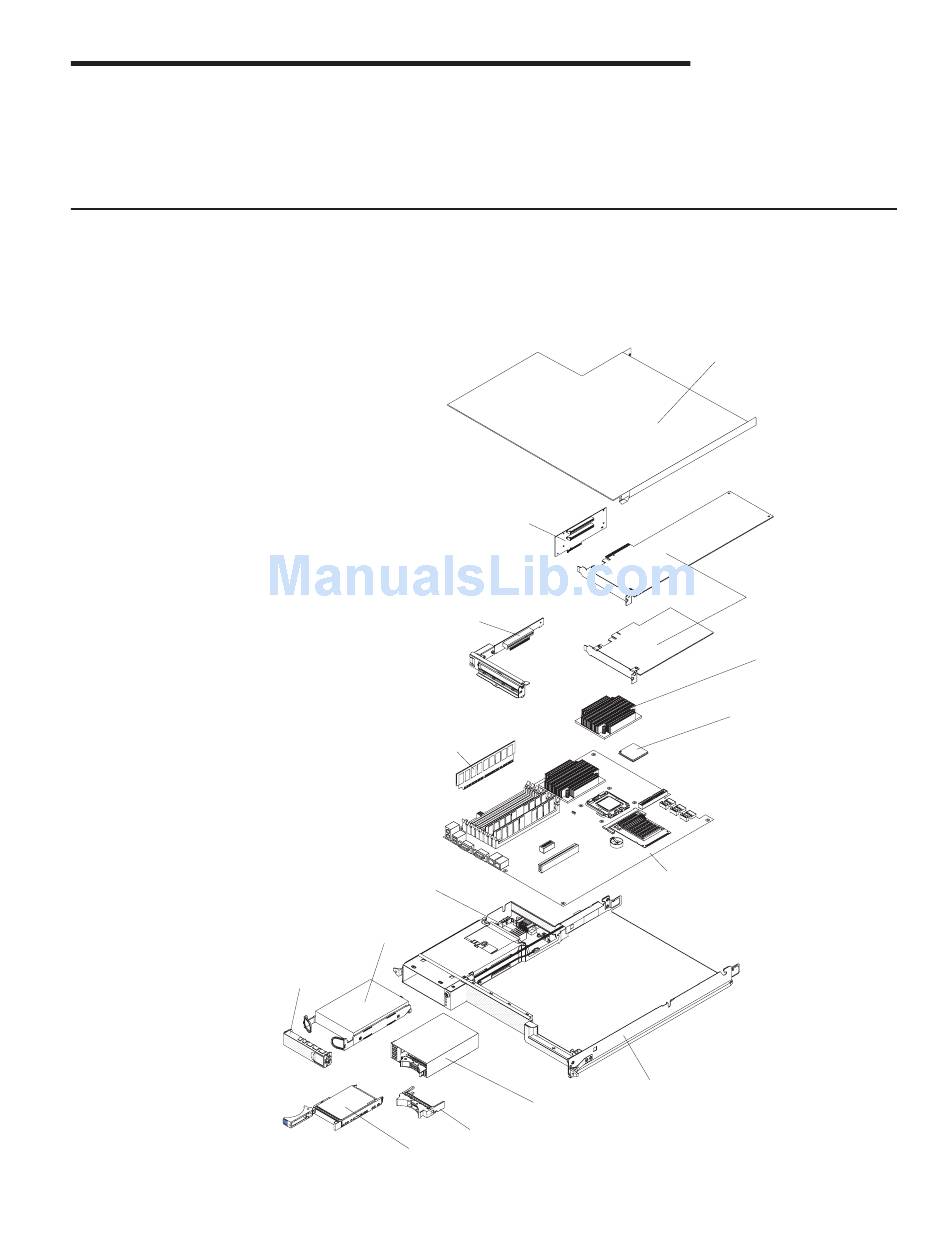

The following illustration shows the major components in the dx340 system-board
tray.
Note: The illustrations in this document might differ slightly from your hardware.
3.5-inch filler panel
(some configurations)
© Copyright IBM Corp. 2010
Two-slot riser
assembly (some
configurations)
One-slot riser
assembly
DIMM
Power supply
paddle card
3.5-inch simple-swap
hard disk drive
(some configurations)
2.5-inch drive filler panel
(some configurations)
2.5-inch hot-swap
hard disk drive
(some configurations)
System board tray cover
System board
System board tray
2.5-inch hot-swap drive cage
(some configurations)
PCIe adapter
(some configurations,
full length adapter
requires I/O enclosure)
Heat-sink
Microprocessor
