INSTALLING OPTIONS

Powerware Hot Sync CAN Bridge Card

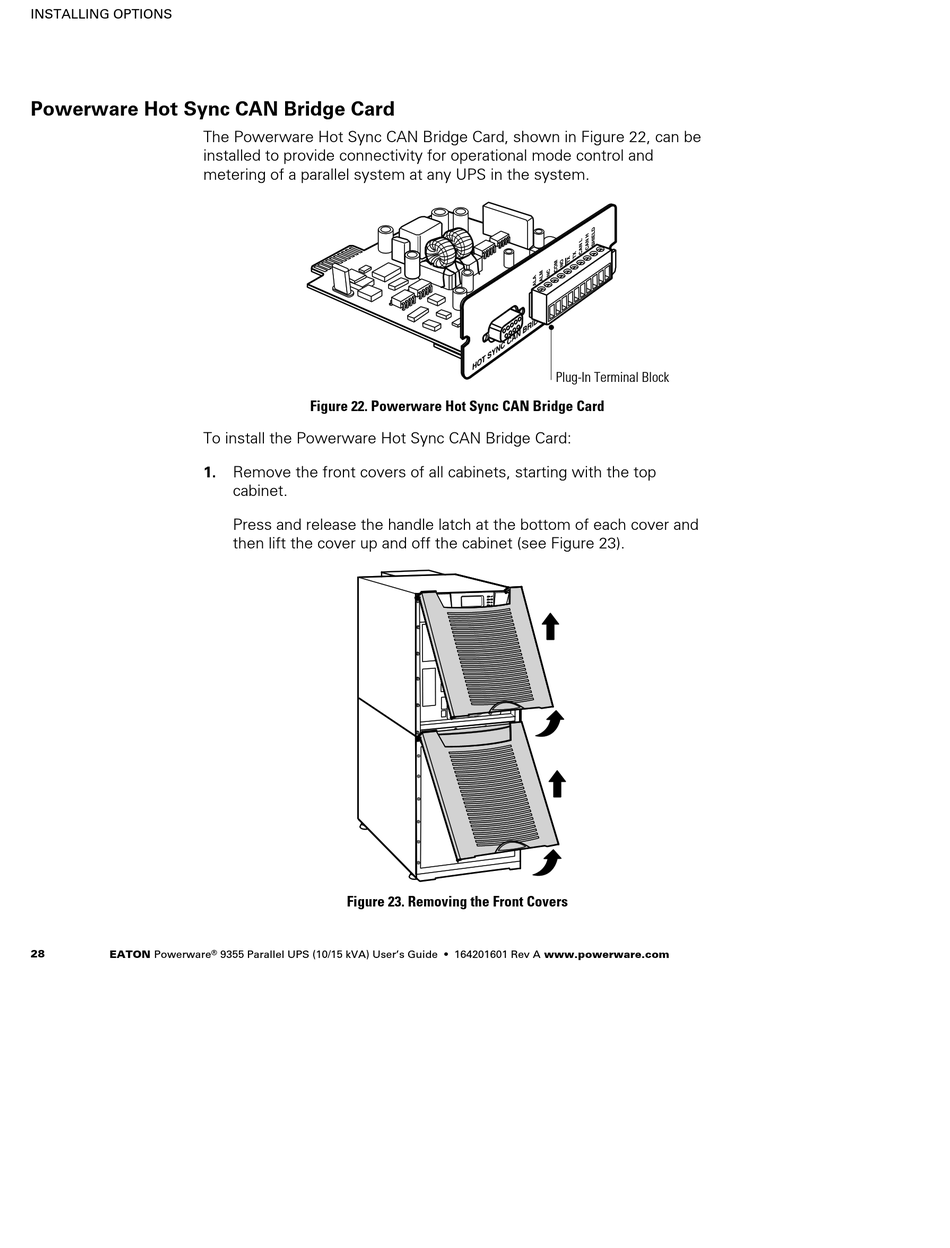

The Powerware Hot Sync CAN Bridge Card, shown in Figure 22, can be
installed to provide connectivity for operational mode control and
metering of a parallel system at any UPS in the system.
To install the Powerware Hot Sync CAN Bridge Card:
1.
28
EATON Powerware
Figure 22. Powerware Hot Sync CAN Bridge Card
Remove the front covers of all cabinets, starting with the top
cabinet.
Press and release the handle latch at the bottom of each cover and
then lift the cover up and off the cabinet (see Figure 23).
Figure 23. Removing the Front Covers
®
9355 Parallel UPS (10/15 kVA) User's Guide
Plug-In Terminal Block
S
