Unloading the Cabinet(s)

The following tools are required for unloading the cabinet(s):
S
S
The UPS and Extended Battery Module
cabinets requires at least two people to safely remove the cabinets from the pallet.
To unload three-high cabinets or two-high EBMs, continue to the
following section. To unload two-high UPS cabinets, proceed to page 13.

Three-High Cabinets or Two-High EBMs

To remove a three-high cabinet or a two-high EBM from the shipping
pallet:
1.
®
EATON Powerware 9355 Parallel UPS (10/15 kVA) User's Guide
15 mm wrench or socket
7 mm nut driver or socket
Remove the two M10 bolts securing the stabilizing bracket to the
pallet (see Figure 2).

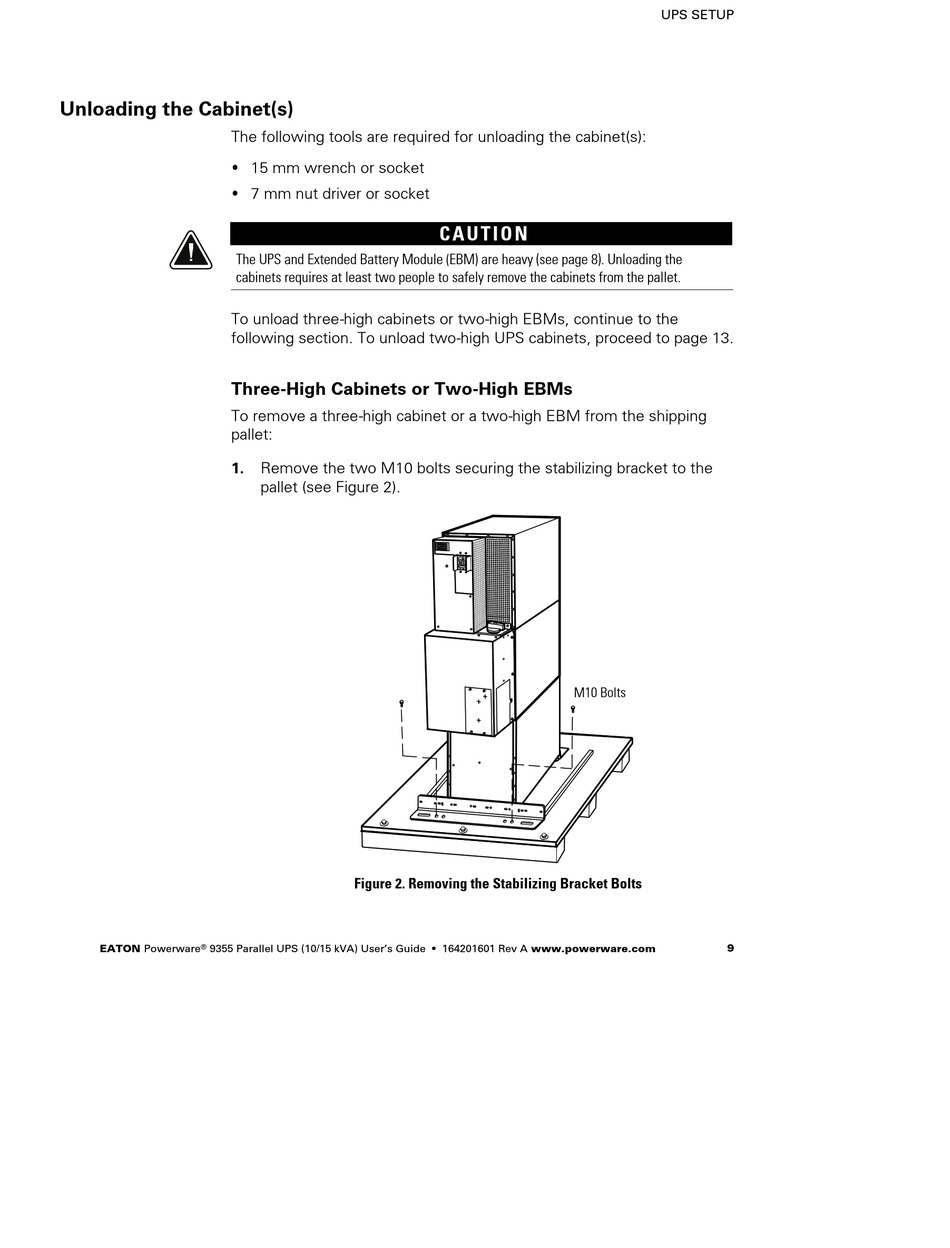

Figure 2. Removing the Stabilizing Bracket Bolts
C A U T I O N
EBM) are heavy (see page 8). Unloading the
(
M10 Bolts
S
164201601 Rev A www.powerware.com
UPS SETUP
9
