Two-High UPS Cabinets

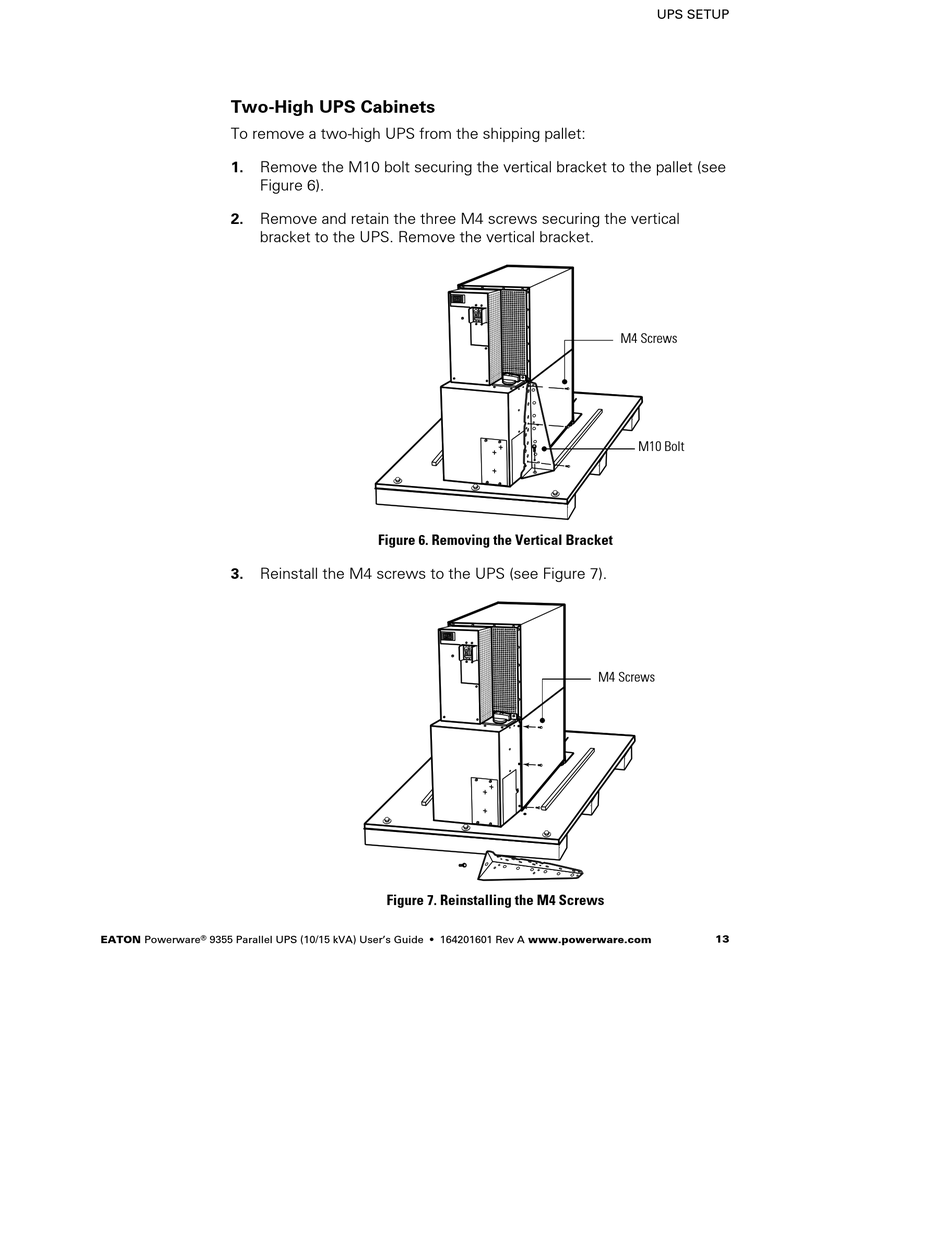

To remove a two-high UPS from the shipping pallet:
1. Remove the M10 bolt securing the vertical bracket to the pallet (see
Figure 6).
2. Remove and retain the three M4 screws securing the vertical
bracket to the UPS. Remove the vertical bracket.
3. Reinstall the M4 screws to the UPS (see Figure 7).
®
EATON Powerware 9355 Parallel UPS (10/15 kVA) User's Guide
Figure 6. Removing the Vertical Bracket
Figure 7. Reinstalling the M4 Screws
S
164201601 Rev A www.powerware.com
UPS SETUP
M4 Screws
M10 Bolt
M4 Screws
