The following table shows the basic menu structure.

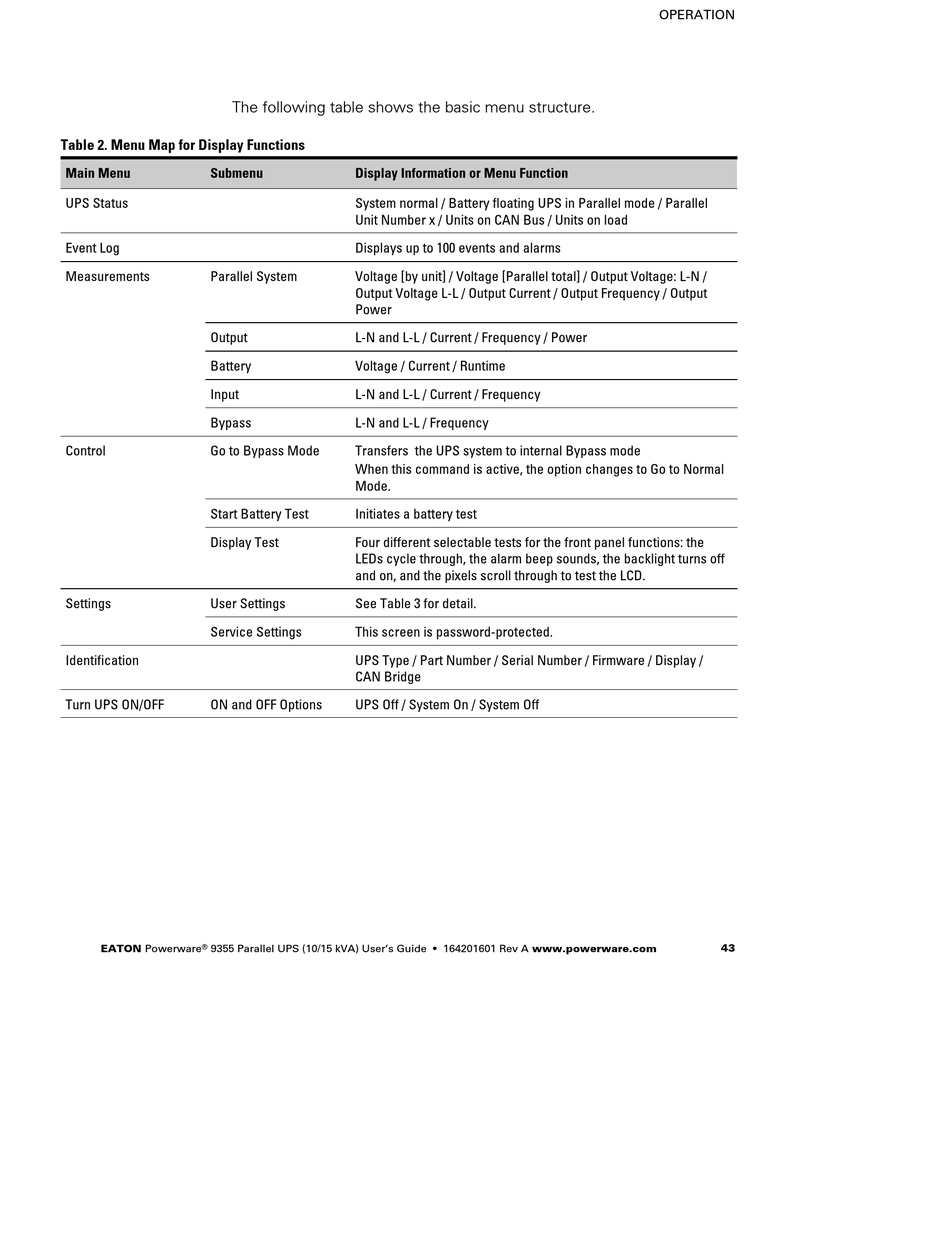

Table 2. Menu Map for Display Functions
Main Menu Submenu
UPS Status
Event Log
Measurements Parallel System
Output
Battery
Input
Bypass
Control Go to Bypass Mode
Start Battery Test
Display Test
Settings
User Settings
Service Settings
Identification
Turn UPS ON/OFF ON and OFF Options
®
EATON Powerware 9355 Parallel UPS (10/15 kVA) User's Guide
Display Information or Menu Function
System normal / Battery floating UPS in Parallel mode / Parallel
Unit Number x / Units on CAN Bus / Units on load
Displays up to 100 events and alarms
Voltage [by unit] / Voltage [Parallel total] / Output Voltage: L-N /
Output Voltage L-L / Output Current / Output Frequency / Output
Power
L-N and L-L / Current / Frequency / Power
Voltage / Current / Runtime
L-N and L-L / Current / Frequency
L-N and L-L / Frequency
Transfers the UPS system to internal Bypass mode
When this command is active, the option changes to Go to Normal
Mode.
Initiates a battery test
Four different selectable tests for the front panel functions: the
LEDs cycle through, the alarm beep sounds, the backlight turns off
and on, and the pixels scroll through to test the LCD.
See Table 3 for detail.
This screen is password-protected.
UPS Type / Part Number / Serial Number / Firmware / Display /
CAN Bridge
UPS Off / System On / System Off
