8.
Reinstall the front cover removed in Step 5.
Hang the top edge of the cover on the cabinet first, then lower the
bottom edge and snap into place.
NOTE Be sure to support the front and back of the cabinet when rolling it off the pallet to
prevent tipping.
9.
Slowly roll the cabinet toward the rear of the pallet. Once the pallet
tilts, continue rolling the cabinet down the pallet until the cabinet
touches the floor (see Figure 9).
If needed, adjust the leveling feet so that the cabinet will roll.
®
EATON Powerware
9355 Parallel UPS (10/15 kVA) User's Guide

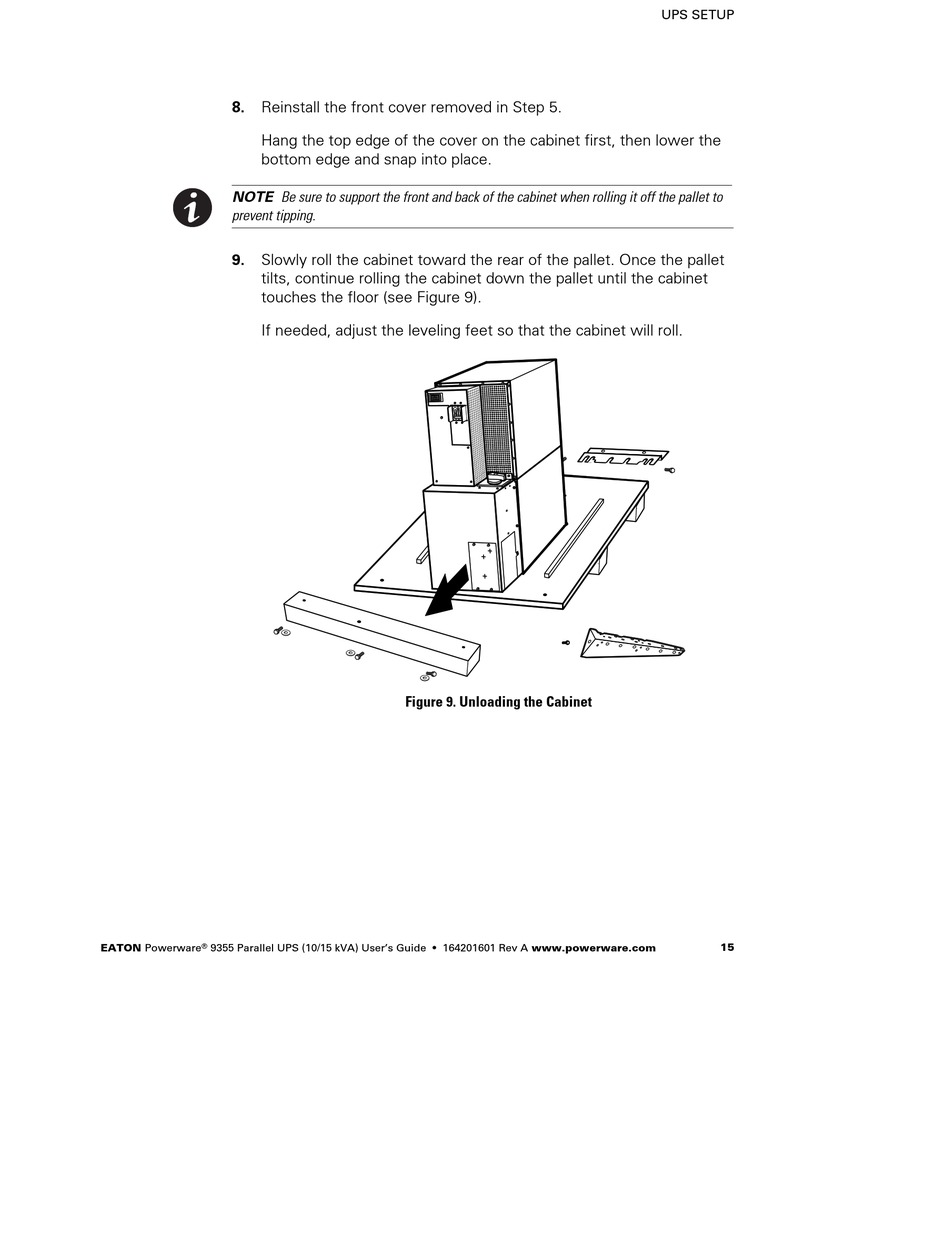

Figure 9. Unloading the Cabinet
S
164201601 Rev A www.powerware.com
UPS SETUP
15
