Chapter 5
X-Slot Communication Bay #1
X-Slot Communication Bay #2
REPO (normally open)
REPO (normally closed)
DB-9 Communication Port
Relay Output Contacts
®
EATON Powerware 9355 Parallel UPS (10/15 kVA) User's Guide

Installing Options

This section describes the Powerware Hot Sync CAN Bridge Card.
For other options, such as additional X-Slot
t
LanSafe Power Management Software, remote emergency power-off
(REPO), relay output contacts, or programmable signal inputs, refer to
the Powerware 9355 UPS (10/15 kVA) User's Guide.
Figure 21 shows the location of the communication options and control
terminals on the UPS.
Signal Input 1
Signal Input 2

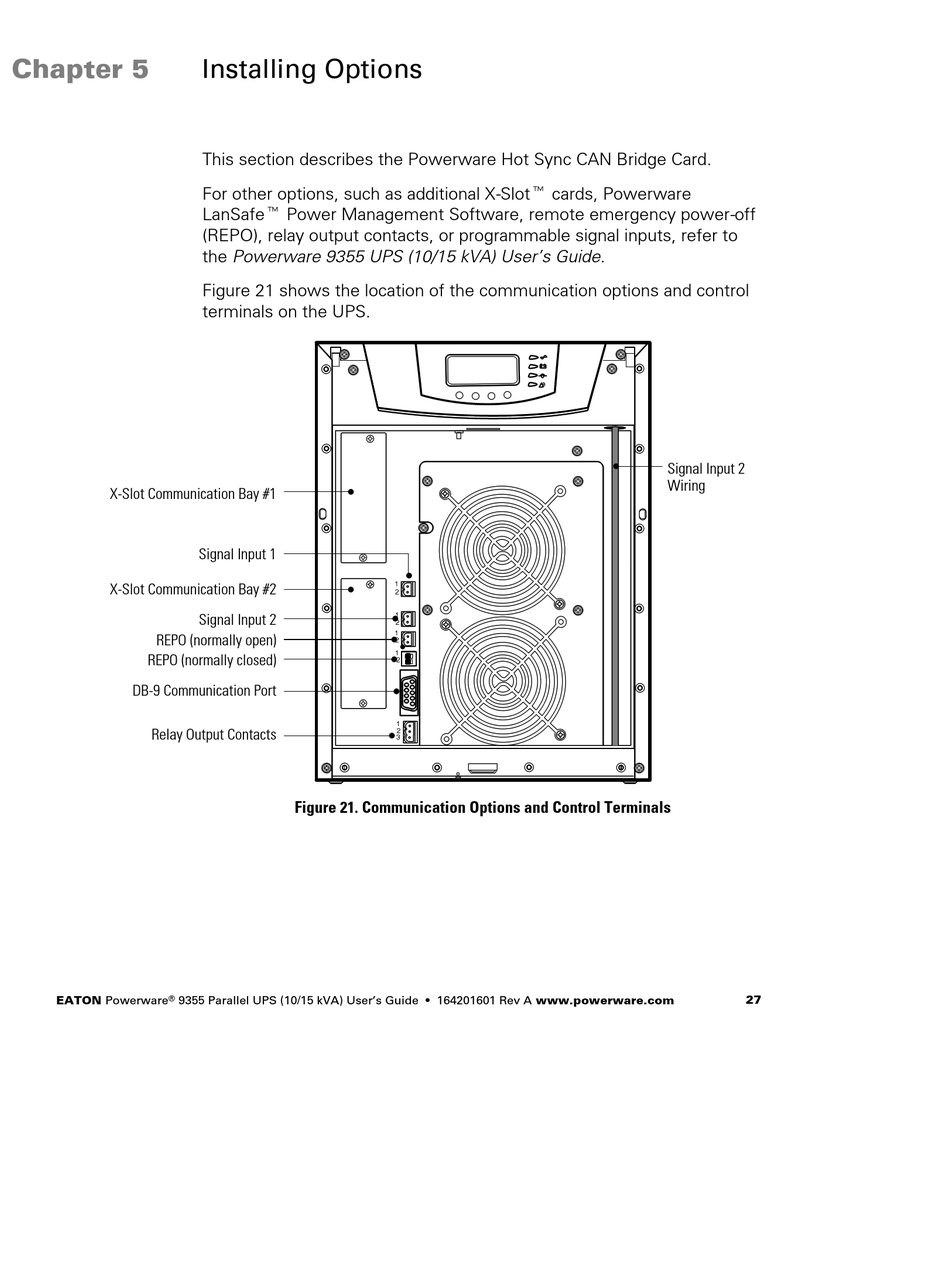

Figure 21. Communication Options and Control Terminals
t
cards, Powerware
1
2
1
2
1
2
1
2
1
2
3
S
164201601 Rev A www.powerware.com
Signal Input 2
Wiring
27
