PARALLEL INSTALLATION
14. Hardwire the output terminations from the UPS to the parallel tie
22
EATON Powerware

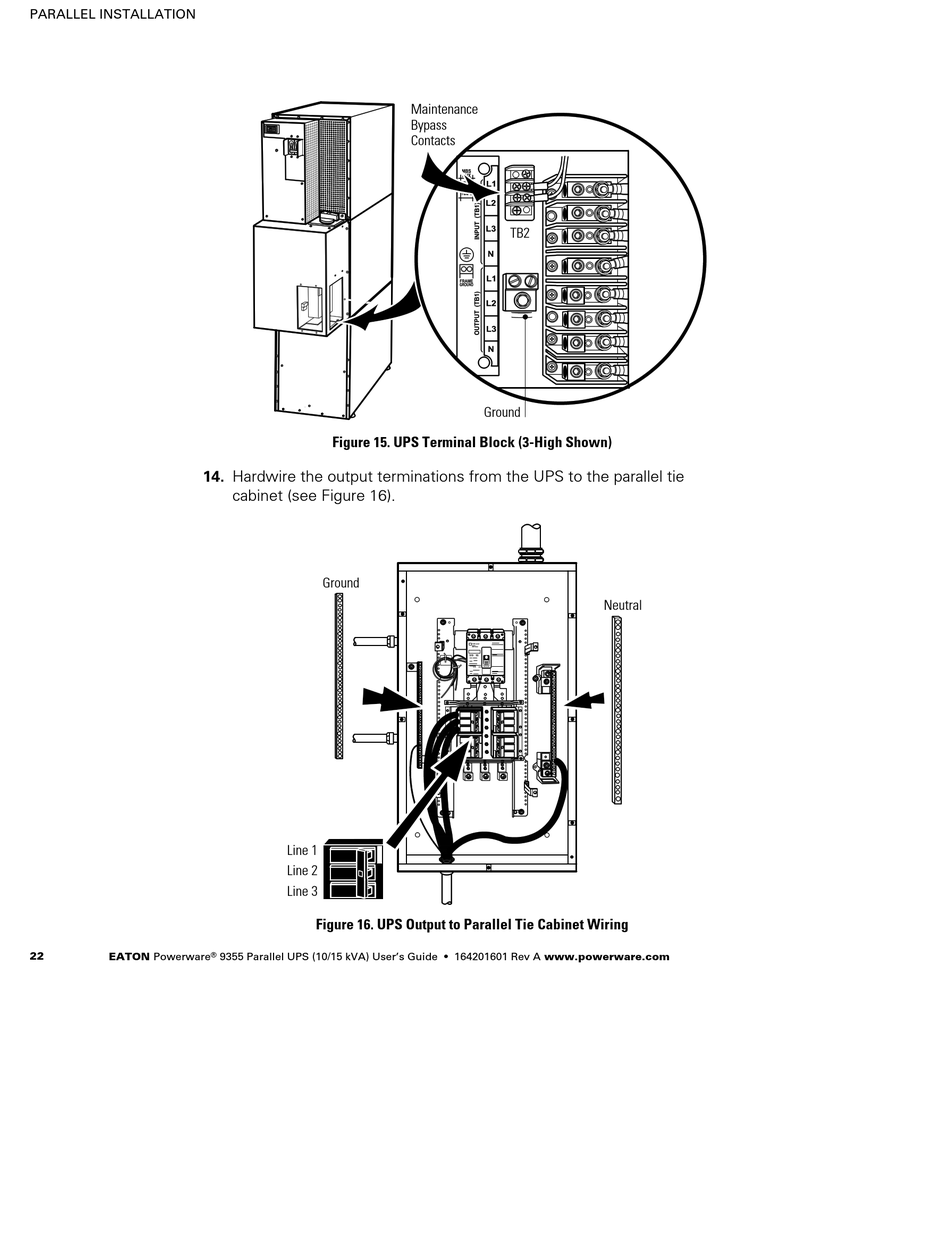

Figure 15. UPS Terminal Block (3-High Shown)
cabinet (see Figure 16).
Ground
Line 1
Line 2
Line 3
Figure 16. UPS Output to Parallel Tie Cabinet Wiring
®
9355 Parallel UPS (10/15 kVA) User's Guide
Maintenance
Bypass
Contacts
TB2
Ground
S
164201601 Rev A www.powerware.com
Neutral
