Bypass Input
From UPS 1 Output
From UPS 2 Output
From UPS 3 Output
From UPS 4 Output
®
EATON Powerware 9355 Parallel UPS (10/15 kVA) User's Guide
225A Breaker
Auxiliary Contacts
225A
80A (4X)

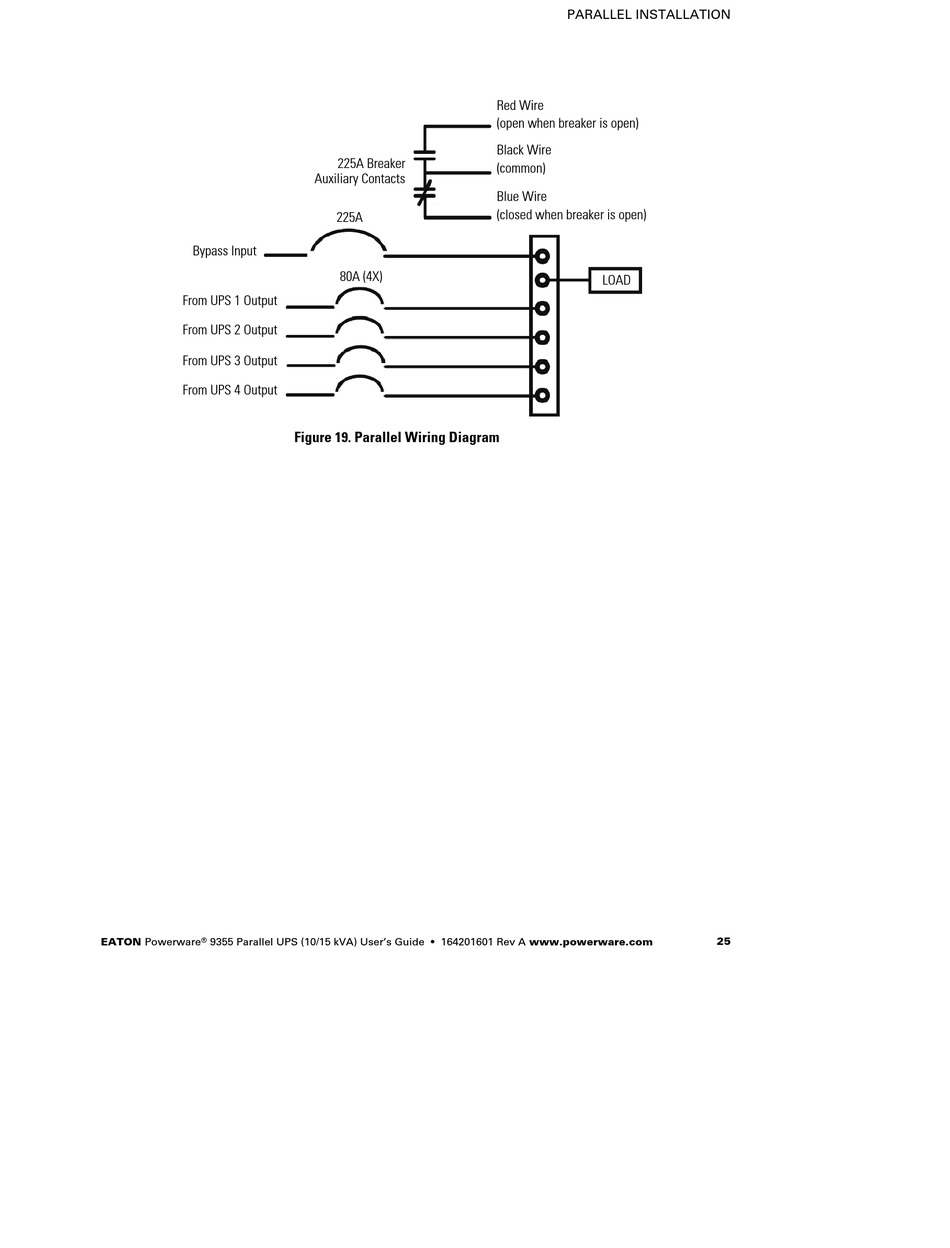

Figure 19. Parallel Wiring Diagram
S
164201601 Rev A www.powerware.com
PARALLEL INSTALLATION
Red Wire
(open when breaker is open)
Black Wire
(common)
Blue Wire
(closed when breaker is open)
LOAD
25
