SDS2100 User Guide
Connections and Pinouts
SDS2100 Serial Ports
The SDS2100 has two male DB9 DTE serial ports that support RS-232 serial
standards up to 115 Kbps.
Serial Connector Pinouts
The unit's Male DB9 connector provides an RS-232C interface as would be found on
most modern computers. The default serial port settings are 9600 baud, 8 bits, no
parity, 1 stop bit, no flow control.
User Datagram Protocol (UDP) for typical datagram applications in which
devices interact with other devices without maintaining a point-to-point
connection.

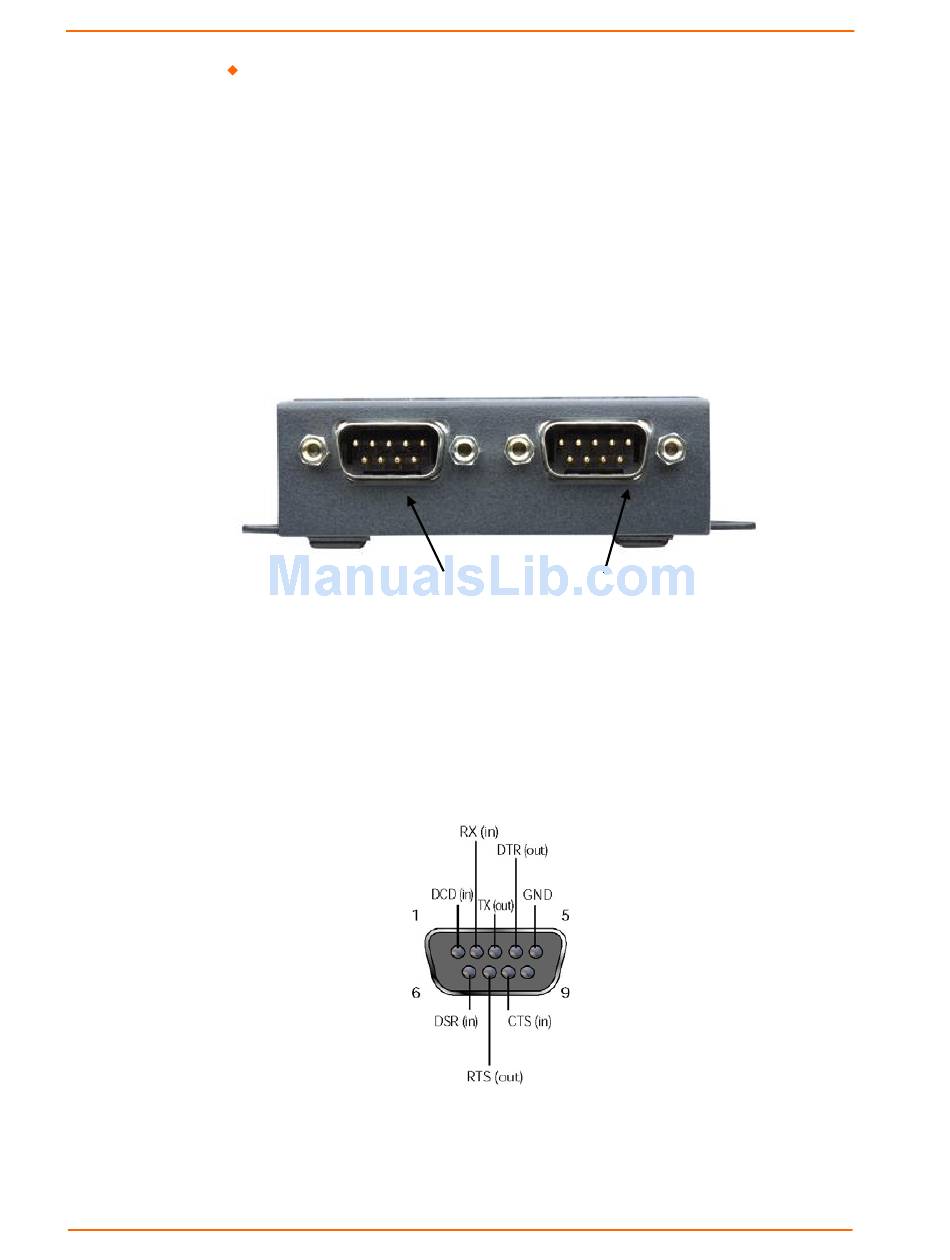

Figure 1-1. Serial Interface
Male DB9 Serial Ports
Male DB9 Serial Ports
Figure 1-2. DB9 Male RS232 Serial DTE Connector
10
1: Introduction
