SDS2100 User Guide
6. Select Do not copy or replace any files and click Next.
7. Click Next again. The status of the upgrade is shown in the window.
8. After the upgrade completes, click Close.

Via TFTP

Note:
following command at the command prompt:
TFTP -i IP address of SDS PUT source file name destination file name
It is easiest to issue the command from the same directory as the one where
the firmware files are located.
To download new firmware using a TFTP client:
1. Use a TFTP client to send a binary file (SDS*.ROM) to the unit to upgrade the
unit's internal operational code, and cbx***.cob to upgrade its internal Web
interface).
Note:
operational code.
2. Make sure the Put and Binary options at the top of the window are selected.
3. Enter the full path of the firmware file in the Source File field.
4. In the Destination File field, type D2 for the internal operational code, or WEB5
and WEB6 for the internal Web interface.
5. In the Remote Host field, enter the IP address of the unit being upgraded.
6. Click the Put button to transfer the file to the unit.

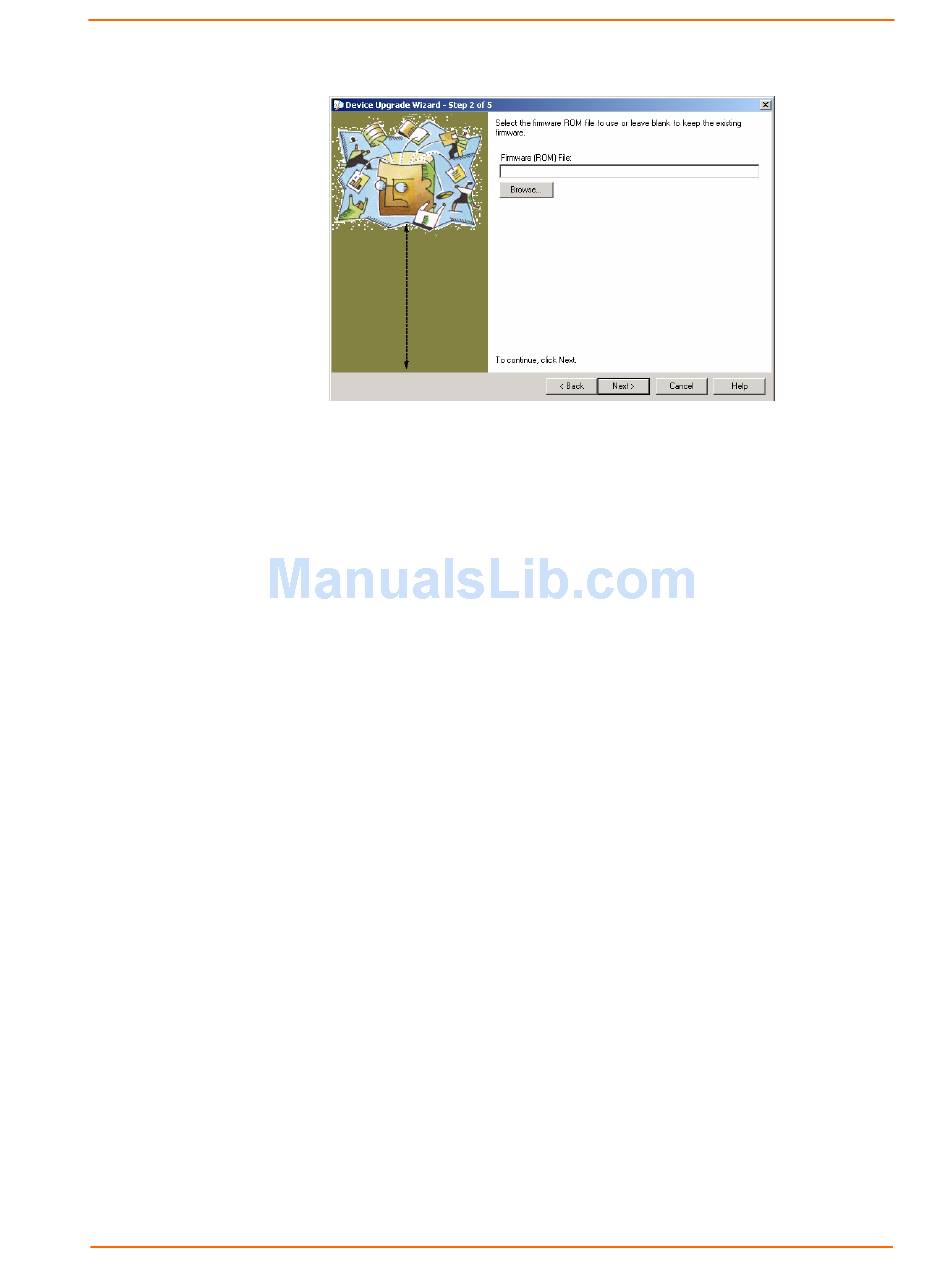

Figure 4-4. Device Upgrade Wizard (Window 2)
If you are running Windows NT or later, you can simply enter the
TFTP requires the .ROM (binary) version of the unit's internal
47
4. Updating Firmware
