SDS1100 User Guide
1: Introduction
Connections and Pinouts
Serial Port
The unit has a female DCE DB25 serial port that supports RS-232 and RS-485/422
serial standards (software selectable) up to 115 Kbps.

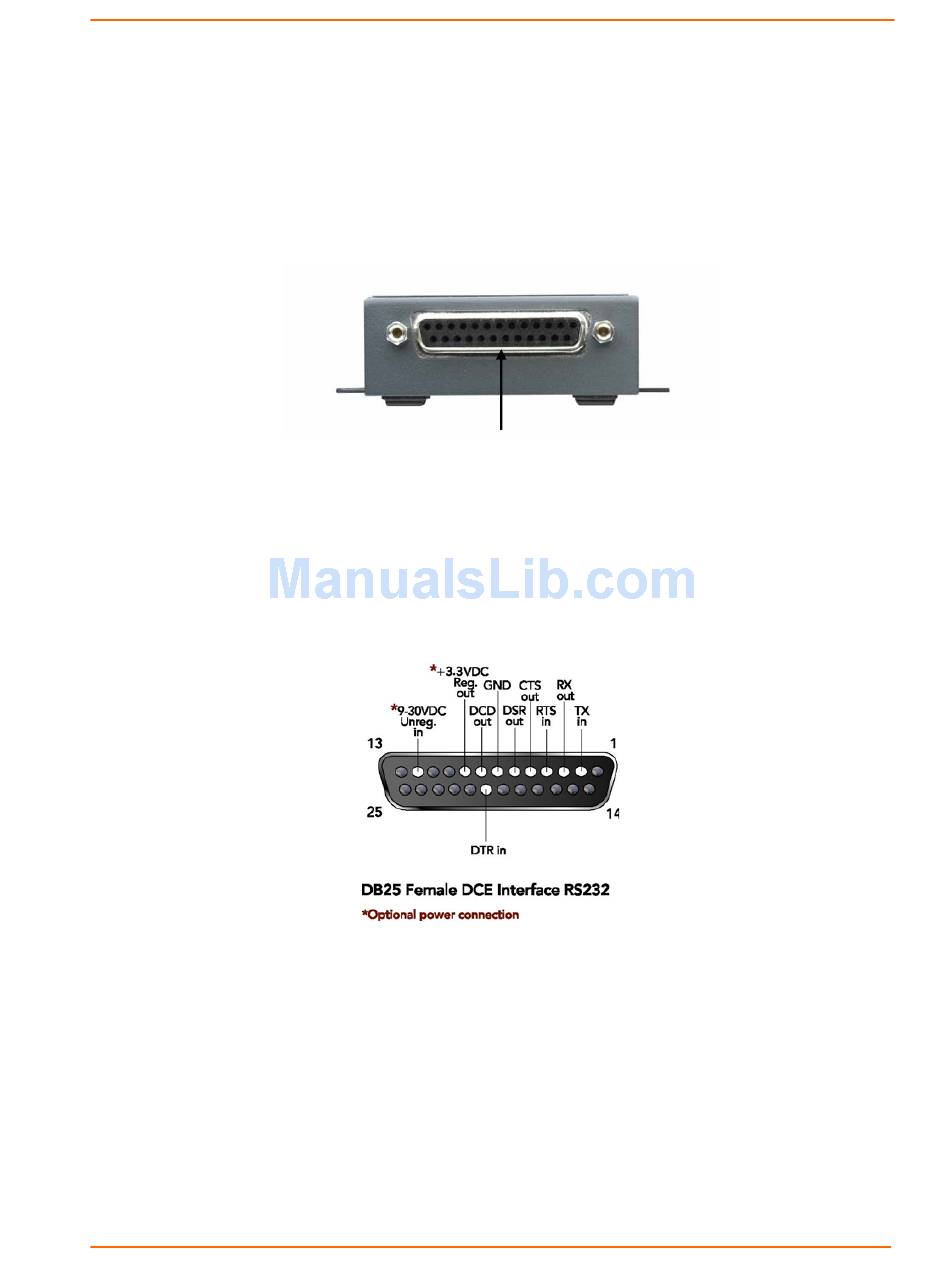

Figure 1-1. Serial Interface
DB25 Serial Port
Serial Connector Pinouts
The unit's female DB25 connector provides an RS-232C, RS-485, or RS-422 DCE
serial port. The default serial port settings are 9600 baud, 8 bits, no parity, and 1 stop
bit.
Figure 1-2. DB25F DCE Serial Connector
11
