SDS2100 User Guide
3. Select an option on the menu by entering the number of the option in the Your
choice ? field and pressing Enter.
4. To enter a value for a parameter, type the value and press Enter, or to confirm a
default value, just press Enter.
5. When you are finished, save the new configuration (option 9). The unit will
reboot.

Server Configuration (Network Configuration)

These are the unit's basic network parameters.

IP Address

The IP address must be set to a unique value in your network. See
Assigning the IP Address

Set Gateway IP Address

The gateway address, or router, allows communication to other LAN segments. The
gateway address should be the IP address of the router connected to the same LAN
segment as the unit. The gateway address must be within the local network.

Netmask

A netmask defines the number of bits taken from the IP address that are assigned for
the host section.
Note: Class A: 24 bits; Class B: 16 bits; Class C: 8 bits.
The unit prompts for the number of host bits to be entered, then calculates the
netmask, which is displayed in standard decimal-dot notation when the saved
parameters are displayed (for example, 255.255.255.0).

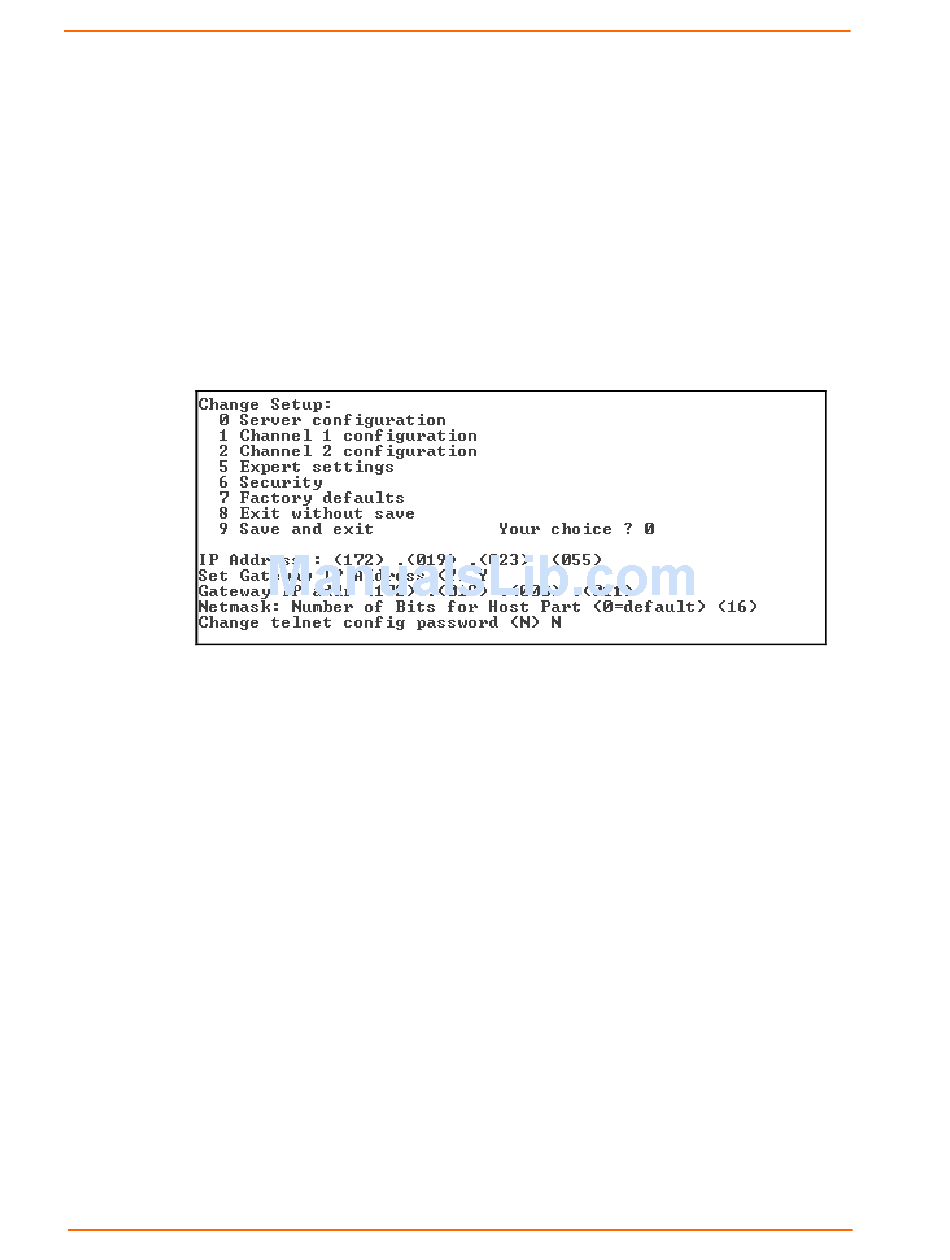

Figure 3-8. Network Configuration
for more information on IP addressing.
30
3: Configuring the Unit
