SDS2100 User Guide

Channel 1 Configuration (Serial Port Parameters)

Using this option, define how the serial port will respond to network and serial
communications.

Baudrate

The unit and attached serial device, such as a modem, must agree on a speed or
baud rate to use for the serial connection. Valid baud rates are 300, 600, 1200, 2400,
4800, 9600 (default), 19200, 38400, 57600, and 115200 bits per second.

I/F (Interface) Mode

The Interface (I/F) Mode is a bit-coded byte that you enter in hexadecimal notation.
Note: If you do not want to convert the binary numbers to hexadecimals
yourself, look up the values in
Binary to Hexadecimal chapter.
The following table demonstrates how to build some common Interface Mode
settings:

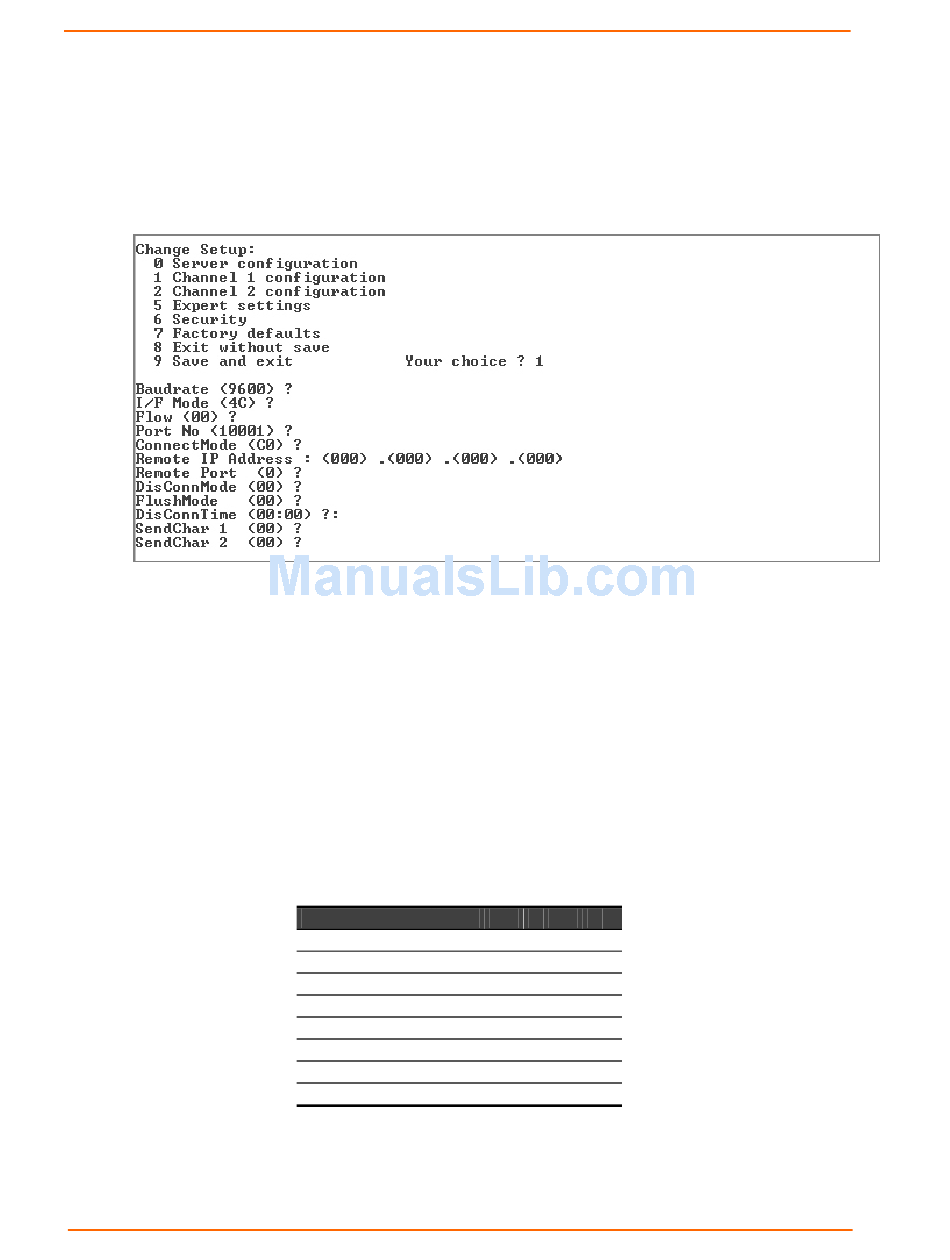

Figure 3-10. Channel 1 Configuration
Table 6-6. Interface Mode Options
Table 3-3. Interface Mode Options
I/F Mode Option Bit 7 6 5 4 3 2 1 0
RS-232C
7 Bit
8 Bit
No Parity
Even Parity
Odd Parity
1 Stop bit 0 1
2 Stop bit 1 1
32
3: Configuring the Unit
0 0
1 0
1 1
0 0
1 1
0 1
in the
