UDS200 Serial Ports
The UDS200 has two male DB9 DTE serial ports that support RS-232 serial
standards up to 115 Kbps.

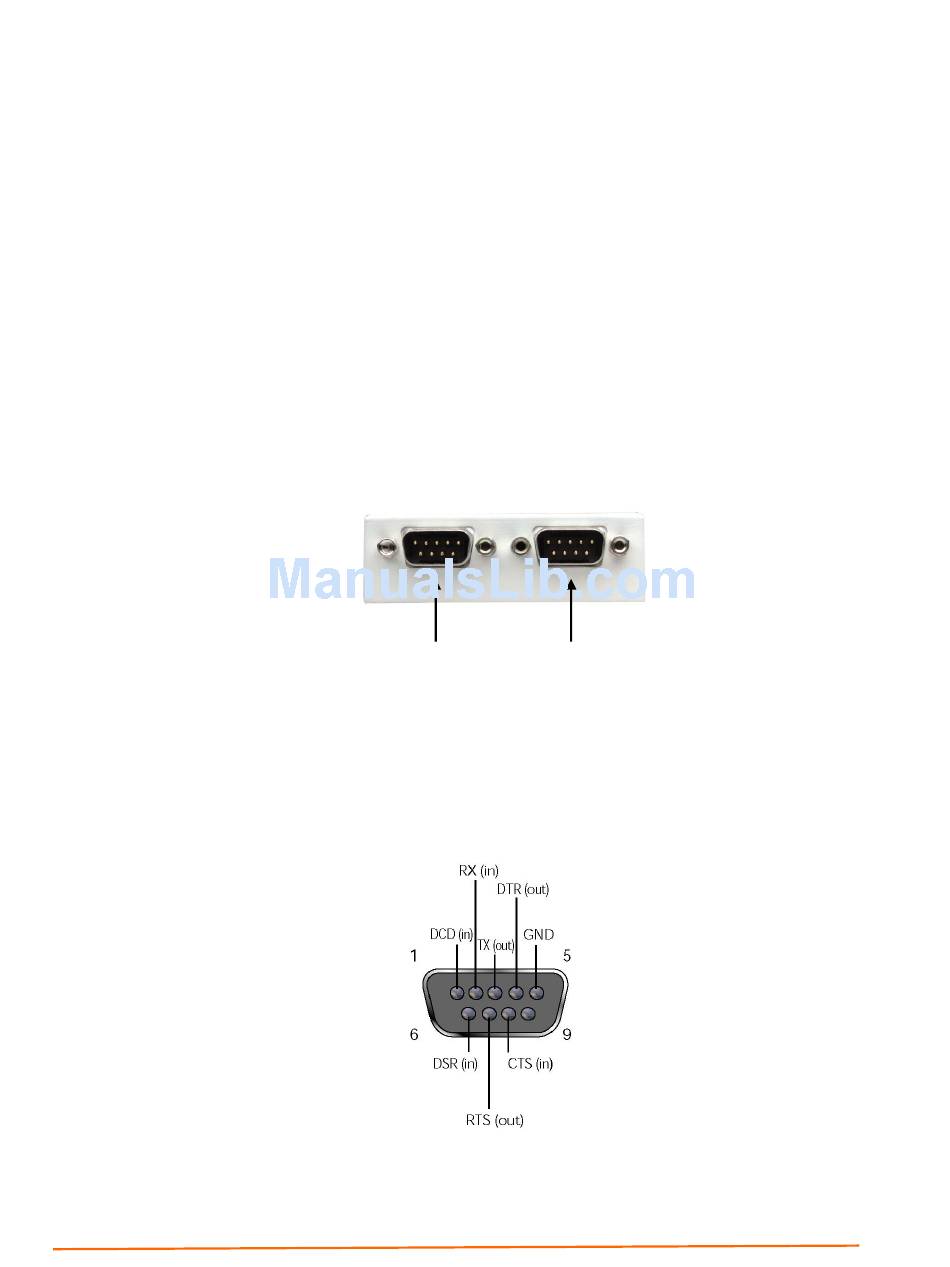

Figure 10-1. Serial Interface
Male DB9 Serial Ports
Serial Connector Pinouts
The unit's Male DB9 connector provides an RS-232C interface as would be found on
most modern computers. The default serial port settings are 9600 baud, 8 bits, no
parity, 1 stop bit, no flow control.
Figure 10-2. DB9 Male RS232 Serial DTE Connector
