Name; Source - BSS Audio FDS366T OMNIDRIVE User Manual

Output Channels - Name & Source
1.

Name

2.

Source

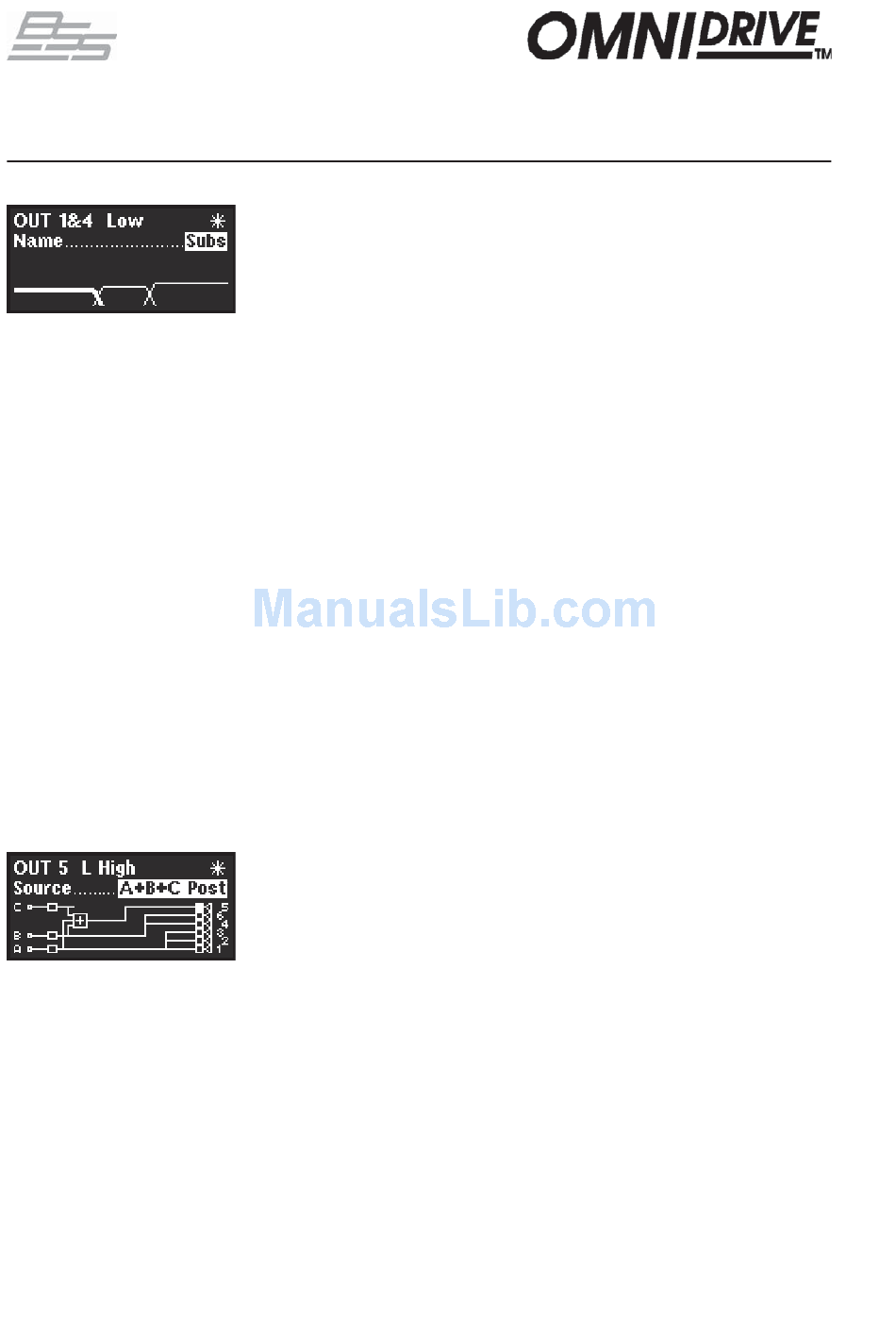

'Name' is the first screen in the Output menu. Here you can identify each
output with a name suitable to its function, selecting from a list of preset names
in the FDS-366T.
Bands 1-6
L Low
L Mid
L High
R Low
R Mid
R High
C Low
C Mid
C High
Subs
Low
Lo Mid
Mid
Hi Mid
High
Mid+Hi
2" Horn
1" Horn
Turn the rotary encoder to select the desired name. If the name selected begins
with "L " or "R ", then the L or R will not be displayed when stereo linking is on.
This screen gives a graphical representation of the input to output assignment
matrix. The channel selected has its speaker icon highlighted, and a
connecting line shows to which input it is currently assigned. The input source
name is also shown above the diagram.
The diagram shows straight through connections from inputs to outputs,
omitting any output stage processing (EQ, Xover etc) for clarity. The small
boxes at the left of the diagram represent the input EQ, and the lines which
connect to the sum (box with +) will move depending on whether 'pre' or
'post' EQ has been selected.
Note: The speaker icons are not drawn in a fixed order. The diagram will be
drawn in the clearest way, to avoid lines crossing on the screen. Therefore care
must be taken when interpreting input to output assignments, as the numbers
next to the speaker icons (representing the outputs) will change positions.
- 80 -
Bullet
Flat
Unused
Bar
BStage
Delay
Centre
Mono
Aux
10"
12"
15"
18"
21"
24"
1.5" Horn
Delay1-6
FDS-366T
