Summary of Contents for BSS Audio BSS Soundweb London BLU-806
Page 1
Soundweb London BLU-800/BLU-805/BLU-806/BLU-806DA/BLU-320/ BLU-325/BLU-326/BLU-326DA/BLU-160/BLU-120 Installation Guide 5086087-A...
Page 2
IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION READ THE FOLLOWING: READ THESE INSTRUCTIONS. KEEP THESE INSTRUCTIONS. HEED ALL WARNINGS. FOLLOW ALL INSTRUCTIONS. The symbols shown above are internationally accepted symbols that warn of potential hazards with electrical products. The lightning flash with DO NOT USE THIS APPARATUS NEAR WATER.
Page 3
ELECTROMAGNETIC COMPATIBILITY DECLARATION OF CONFORMITY This device complies with part 15 of the FCC Rules and the Product Manufacturer’s Name: BSS Audio With regard to Directive 2005/32/EC and Manufacturer’s Address: 10653 S. River Front EC Regulation 1275/2008 of 17 December Specifications noted on the Declaration of Conformity.
Page 4
CONSIGNES DE SÉCURITÉ IMPORTANTES AVERTISSEMENT POUR VOTRE SÉCURITÉ LIRE ATTENTIVEMENT : LIRE CES CONSIGNES. CONSERVER CES CONSIGNES. RESPECTER TOUS LES AVERTISSEMENTS. SUIVRE TOUTES LES CONSIGNES. Les symboles illustrés ci-dessus sont des symboles acceptés NE PAS UTILISER CET APPAREIL PRÈS DE L’EAU. internationalement qui avertissent des dangers potentiels relatifs à...
Page 5
DÉCLARATION DE CONFORMITÉ COMPATIBILITÉ ÉLECTROMAGNÉTIQUE Cet appareil est conforme au volet 15 des règles du FCC et aux Nom du fabricant : BSS Audio Ce produit appartenant à la catégorie Matériel Adresse du fabricant : 10653 S. River Front audio professionnel, il n’est pas concerné par spécifications techniques évoquées dans la Déclaration de...
RS232 ETHERNET MANUFACTURED IN THE USA BY BSS AUDIO If the unit is likely to undergo extreme vibration through extensive road trucking and touring, the unit must be supported at the rear and/or sides to lessen the stress on the front mounting flange. The necessary support can generally be bought ready-built as a rack tray, or the BLU-800/805/806 (DA)/320/325/326 (DA)/160/120 unit can be mounted between other units.

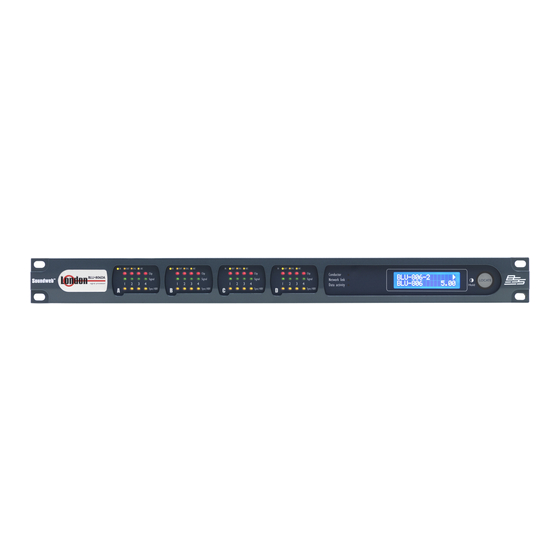

Front Panel Input Card Monitoring Each channel has 3 LED indicators showing: • Clip Illuminated–Indicates clipping in the analogue domain for each channel of the fitted Input or Output card. The LED will illuminate at +18.5dB. • Signal Illuminated–The Signal LED will illuminate for each channel of a fitted Input or Output card when the signal reaches or exceeds the signal threshold of -20dB�...
THIS EQUIPMENT MUST BE EARTHED WORD CLOCK LOCATE RS232 ETHERNET MANUFACTURED IN THE USA BY BSS AUDIO BLU-800 shown above� BLU-320 layout is identical� BLU- BLU-805 shown above� BLU-325 layout is identical� 160 and BLU-120 have no CobraNet or WORD CLOCK BNC connectors, but are otherwise identical to the BLU- 800 and BLU-320�...
audio sample rate. Locate Pressing the Locate switch on the rear of the unit will illuminate the Locate switch on the front and identify the device within London Architect. Similarly the switch will illuminate if the device is selected from within London Architect or from the Locate switch on the front panel.
I/O Card Positions A, B, C & D These connectors provide the balanced connections for the I/O card fitted in the four card slots in a Soundweb London device� The analogue connections are balanced, on Phoenix/Combicon connectors� A green LED next to the slot assignment letter A, B, C or D indicates that an Input card is fitted and an amber LED when an output card is fitted.
Logic Outputs There are 6 logic outputs, also known as “General Purpose Outputs” or “GPO”. They are used to control LED’s or relays. The logic output can source 10mA at 5V DC, or sink 60mA up to 50V DC� A high sensitivity relay (such as a reed relay) can be driven by connecting multiple logic outputs in parallel�...
Technical Specifications FRONT PANEL LED INDICATORS INPUT/OUTPUT: Per Input: Signal Present, CLIP, SYNC/48V, I/O card type [IN, OUT, DIG, AEC[BLU-800, BLU-805, BLU-806 (DA), BLU-320, BLU-326 (DA), BLU-325, BLU-160, BLU-120] OTHER: LCD Display, Conductor active, Net Link active, Data Activity ANALOGUE INPUTS CONNECTORS: Up to 16 electronically balanced on Phoenix/Combicon removable screw connectors MIC/LINE INPUTS:...
Page 14
2 x RJ45 connectors MAXIMUM CABLE LENGTH: 100m/328ft on Category 5e cable between device and AVB compliant Ethernet switch SAMPLE RATE: 48kHz LATENCY: 0�5ms-2�0ms COMPATIBLE AVB SWITCHES: BSS Audio/NETGEAR GS724T Ethernet Switch LABX Titanium 411 Ruggedized AVB Ethernet Bridge Switch...
Page 15
WEIGHT: 9 lbs / 4�1 kgs (estimated) BSS Audio incorporates high quality mechanical fans in some products� All mechanical fans have a limited life expectancy� We recommend annual inspection of fans for dust occlusion and excessive noise� Fan assemblies should be replaced after six to ten years of use� Environmental factors such as elevated temperature, dust, and smoke can adversely affect fan life�...
