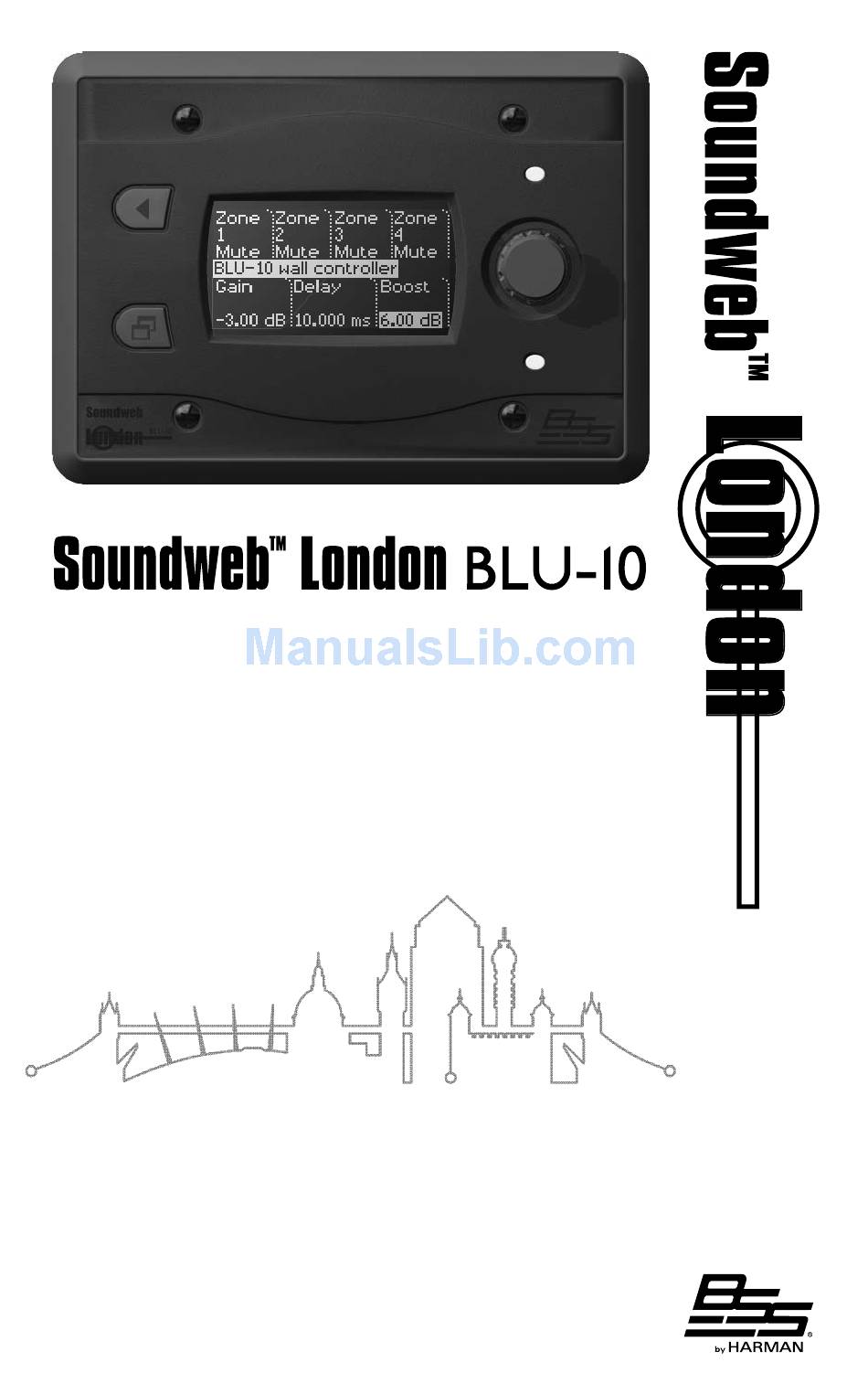

Page 1: Installation Guide
Wall Panel Installation Guide BSS Audio 8760 S. Sandy Parkway Sandy, Utah 84070, USA http://www.bssaudio.com 801-566-8800... -
Page 2: Declaration Of Conformity
DECLARATION OF CONFORMITY Manufacturer’s Name: BSS Audio Manufacturer’s Address: 8760 S. Sandy Parkway Sandy, Utah 84070, USA declares that the product: Product name: BLU 10 Note: Product name may be suffixed by the letters-EU. Product option: None conforms to the following Product Specifications: Safety: Low Voltage Device EMC: EN 55103-1 (1996) EN 55103-2 (1996) Supplementary Information: The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC as amended by Directive 93/68/EEC. -
Page 3: Mechanical Installation
Mechanical Installation The BLU-10 is designed to fit into a standard 3-gang US wall box. Screws are provided to fix the unit in place. Dimensions of the unit are shown below. The use of a metal wall box is recommended to ensure that the installation meets necessary EMC standards. 57mm 170mm 2.24ins 6.69ins 45mm 1.77ins Power The BLU-10 requires 12-48V DC to be supplied externally. There are two ways to do this: Connect a suitable supply to the 12-48V DC connector, see diagram below, the unit may be power via the Ethernet connector using IEEE802.3af Power Over Ethernet (POE). Typical mid-span ethernet powering devices are: 3Com® Power over Ethernet Single-Port Midspan Solution - p/n 3CNJPSE 3Com® Power over Ethernet Multiport Midspan Solution - p/n 3CNJPSE24 Ethernet switches with power over ethernet ports include: 3Com® SuperStack® 3 Switch 4400 PWR - p/n 3C17205 HP ProCurve Switch 2626-PWR - p/n J8164A#ABA... -
Page 4: Technical Specifications
12-48V DC Ethernet Power Connector Connector Connector Wiring The BLU-10 connects into a Soundweb London network via its Ethernet port, either directly into the rear of a rackmount device (e.g., BLU-16) with a Cat 5 crossover cable, or with a standard Cat 5 cable into an Ethernet switch. Technical Specifications Maximum network cable length: 300 feet (100 meters) Power consumption: 300mA max at 12V 18-1234-B...
