Inputs - EQ
20.000
15.000
10.000
5.0000
0.0
-5.000
-10.00
-15.00
-20.00
20 100

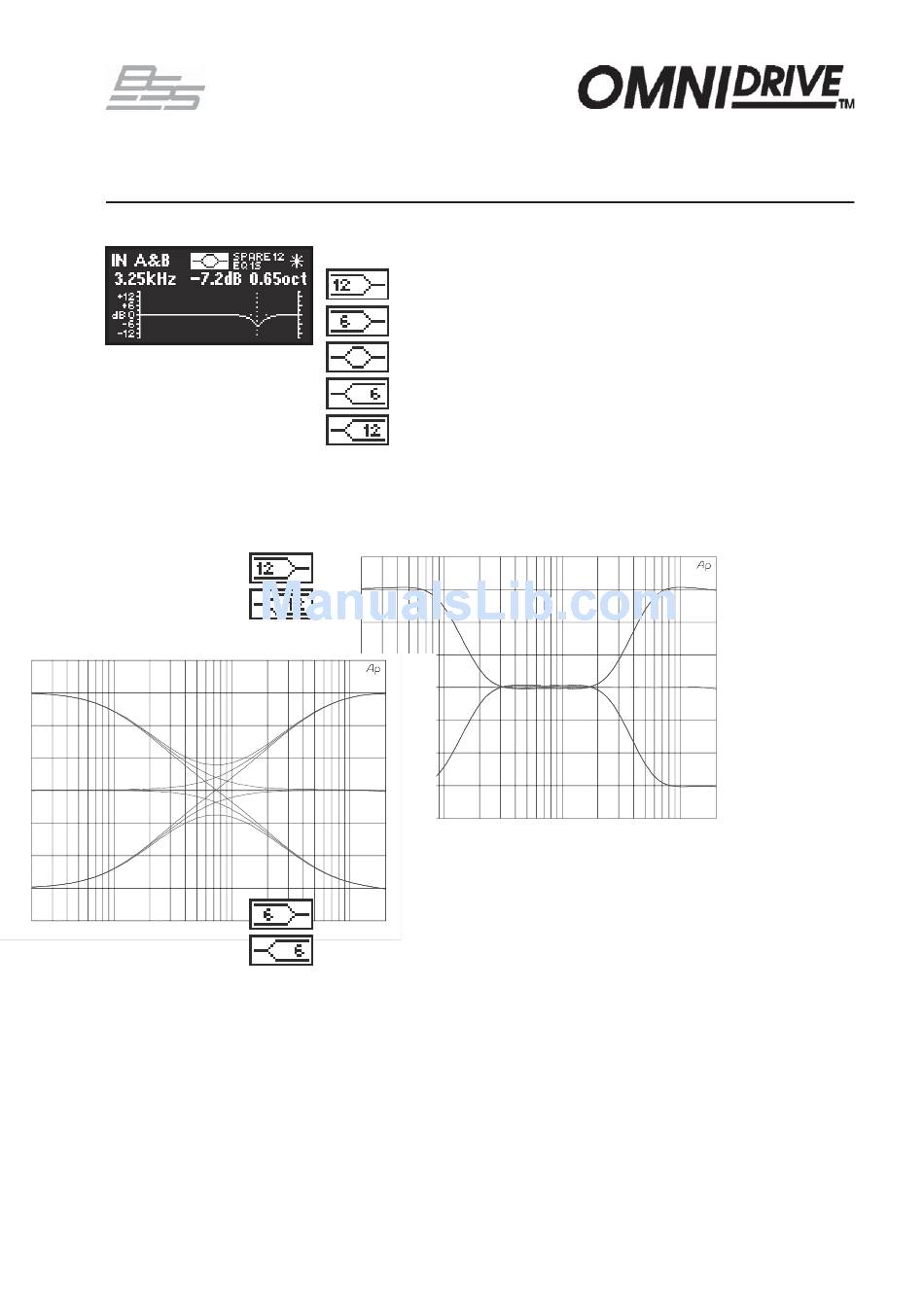

EQ shape The shape of the EQ can be selected from one of the following by turning the
rotary encoder:
The EQ shape icon at the top of the screen will change, to show the type of EQ
selected.
20.000
15.000
10.000
5.0000
0.0
-5.000
-10.00
-15.00
-20.00
20
1k 10k 20k
Hi shelving with 12dB slope (Hi12)
Hi shelving with 6dB slope (Hi6)
BELL
Low shelving with 6dB slope (Lo6)
Low shelving with 12dB slope (Lo12).
100 1k
12dB/Octave Shelving EQ graph
6dB/Octave Shelving EQ graph
- 77 -
FDS-366T
10k 20k
