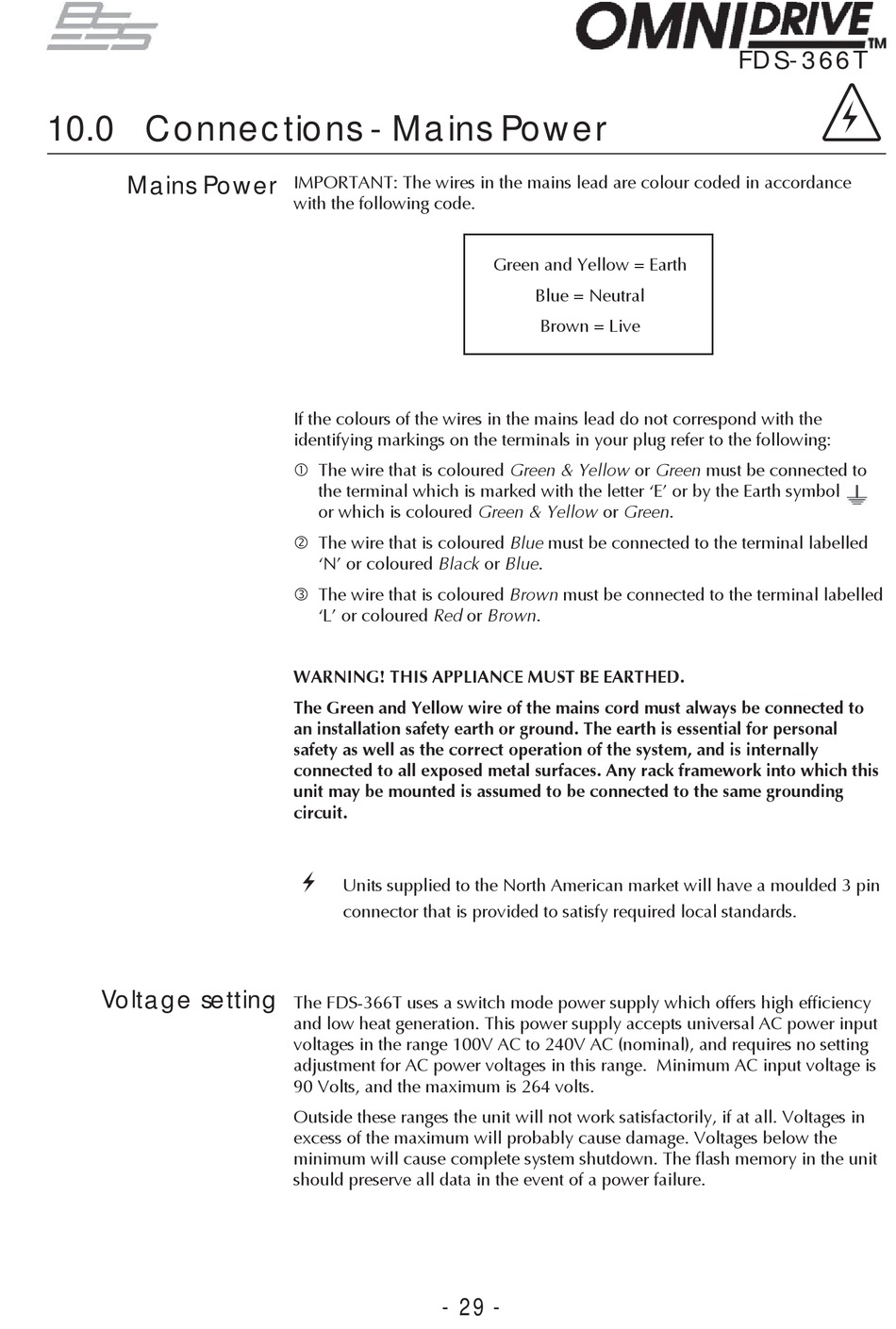

10.0 Connections - Mains Power
Mains Power

Voltage setting

IMPORTANT: The wires in the mains lead are colour coded in accordance
with the following code.
If the colours of the wires in the mains lead do not correspond with the
identifying markings on the terminals in your plug refer to the following:
 The wire that is coloured Green & Yellow or Green must be connected to
the terminal which is marked with the letter 'E' or by the Earth symbol
or which is coloured Green & Yellow or Green.
‚ The wire that is coloured Blue must be connected to the terminal labelled
'N' or coloured Black or Blue.
ƒ The wire that is coloured Brown must be connected to the terminal labelled
'L' or coloured Red or Brown.
WARNING! THIS APPLIANCE MUST BE EARTHED.
The Green and Yellow wire of the mains cord must always be connected to
an installation safety earth or ground. The earth is essential for personal
safety as well as the correct operation of the system, and is internally
connected to all exposed metal surfaces. Any rack framework into which this
unit may be mounted is assumed to be connected to the same grounding
circuit.
Units supplied to the North American market will have a moulded 3 pin
connector that is provided to satisfy required local standards.
The FDS-366T uses a switch mode power supply which offers high efficiency
and low heat generation. This power supply accepts universal AC power input
voltages in the range 100V AC to 240V AC (nominal), and requires no setting
adjustment for AC power voltages in this range. Minimum AC input voltage is
90 Volts, and the maximum is 264 volts.
Outside these ranges the unit will not work satisfactorily, if at all. Voltages in
excess of the maximum will probably cause damage. Voltages below the
minimum will cause complete system shutdown. The flash memory in the unit
should preserve all data in the event of a power failure.
- 29 -
Green and Yellow = Earth
Blue = Neutral
Brown = Live
