- Page 1 Soundweb London BLU-800/BLU-805/BLU-320/ BLU-325/BLU-160/BLU-120 Installation Guide 18-0553-D...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION READ THE FOLLOWING: KEEP THESE INSTRUCTIONS HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS THE APPARATUS SHALL NOT bE ExPOSED TO DRIPPING OR SPLASHING The symbols shown above are internationally accepted symbols LIqUID AND NO ObjECT FILLED WITH LIqUID, SUCH AS vASES, SHALL that warn of potential hazards with electrical products. -
Page 3: Declaration Of Conformity
Sandy, Utah 84070, USA Sandy, Utah 84070, USA Date: April 22, 2010 Date: June 15, 2012 European Contact: Your local BSS Audio Sales and Service Office European Contact: Your local BSS Audio Sales and Service Office Harman Music Group Harman Signal Processing... -
Page 4: Regulatory Information
EMC regulations, it is important that all cables be screened, and connected as follows: Audio cable screens to their BLU-800 connector ground. Control cable screens to the ground screws adjacent to the connector. Network cables should be of type Cat 5, fitted with a clip-on ferrite sleeve (STEWART TYPE 28A2029-0A0) near the network socket end. -

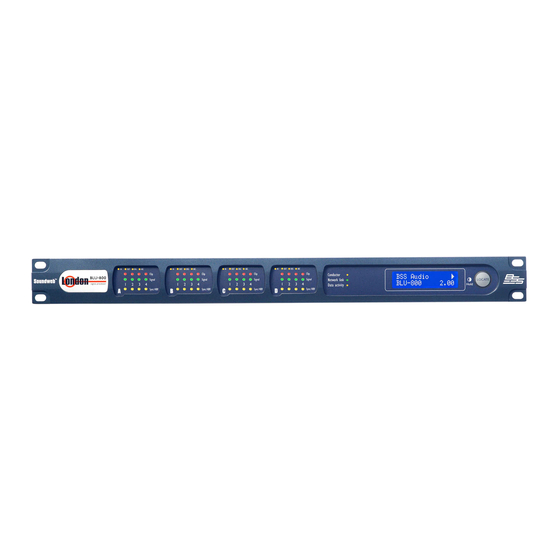

Page 5: Front Panel
Illuminated–Illuminates to indicate +48V phantom power has been activated for the relevant channel of a fitted input card. Also indicates sync status for digital I/O card. Conductor [BLU-800/BLU-320/BLU160/BLU-120]/Master [BLU-805/BLU-325] The master clock device of a CobraNet system is referred to as the Conductor–the CM-1 modules in the system auto-negotiate which device will transmit the Conductor beat packet. -
Page 6: Rear Panel
LOCATE RS232 ETHERNET MANUFACTURED IN THE USA BY BSS AUDIO BLU-800 shown above. BLU-320 layout is identical. BLU- BLU-805 shown above. BLU-325 layout is identical. 160 and BLU-120 have no CobraNet or WORD CLOCK BNC connectors, but are otherwise identical to the BLU- 800 and BLU-320. - Page 7 WORD CLOCK connectors serve no function when using AVB. Audio Cable Wiring All audio and control connections to the BLU-800/BLU-805/BLU-320/BLU-325/BLU-160/BLU-120 are via Klippon pluggable terminal block connectors (also known as BL, Phoenix or Combicon). 6-way female Klippon connectors (part number: 32-1226) are supplied for making these connections.
-
Page 8: Control Inputs
I/O Card Positions A, B, C & D WORD CLOCK These connectors provide the balanced connections for the I/O card fitted in the four card slots in a Soundweb London device. The analogue connections are balanced, on Phoenix/Combicon connectors. A green LED next to the slot assignment letter A, B, C or D indicates that an Input card is fitted and an amber LED when an output card is fitted. -
Page 9: Logic Outputs
LOGIC OUTPUTS There are 6 logic outputs, also known as “General Purpose Outputs” or “GPO”. They are used to control LED’s or relays. The logic output can source 10mA at 5V DC, or sink 60mA up to 50V DC. A high sensitivity relay (such as a reed relay) can be driven by connecting multiple logic outputs in parallel. -
Page 10: Technical Specifications
Technical Specifications FRONT PANEL LED INDICATORS Per Input: Signal Present, CLIP, SYNC/48V, I/O card type [IN, OUT, DIG, AEC[BLU-800, 805, 320, 325, 160, 120]] Other: LCD Display, Conductor active, Net Link active, Data Activity ANALOGUE INPUTS Up to 16 electronically balanced on Phoenix/Combicon removable... -
Page 11: Digital Outputs
Operating Temperature Range: 5[41] to 35[95] degrees C[degrees F] BSS Audio incorporates high quality mechanical fans in some products. All mechanical fans have a limited life expectancy. We recommend annual inspection of fans for dust occlusion and excessive noise. Fan assemblies should be replaced after six to ten years of use. - Page 12 BSS Audio 8760 South Sandy Parkway Sandy, Utah 84070 801-566-8800 www.bssaudio.com Printed in the USA...
