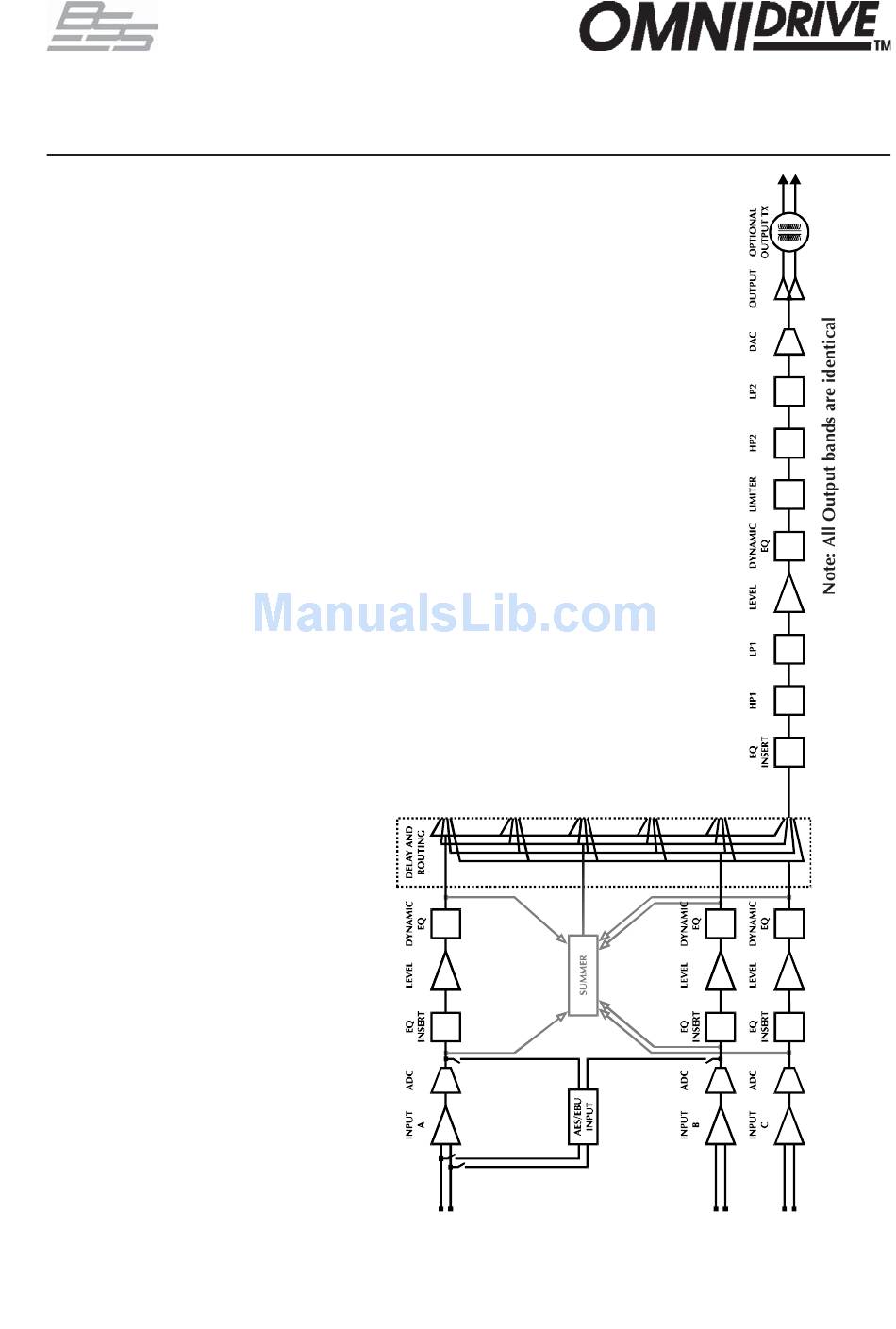

Specifications and Block Diagram

Performance (filters out)
Frequency response 10Hz - 20kHz, +/-0.25dB
Dynamic range >112dB, unweighted 22Hz to 22kHz
Channel Separation >80dB, 30Hz to 20kHz
Distortion (THD) <0.005%, 20Hz - 20kHz @+10dBu output
Metering
Input headroom metering -20dB, -12dB, -6dB, -3dB, Clip
Output metering SIG (-40dB), -20dB, -12dB, -6dB, -3dB, 0dB, Over (+6dB)
Input Section
Input Impedance 10kOhm, electronically balanced
Maximum Input Level +20dBu
Input gain +/-15dB variable in 0.1dB steps
Input Connector XLR-3F or equivalent
AES/EBU Interface
Input sample rate 44.1kHz, 48kHz, 88.2kHz, 96kHz
10Hz - 40kHz, +/-2dB
Relative to clip point (+20dBu)
Relative to limiter threshold setting
CMRR Better than 50dB (30Hz-20kHz)
- 103 -
FDS-366T
