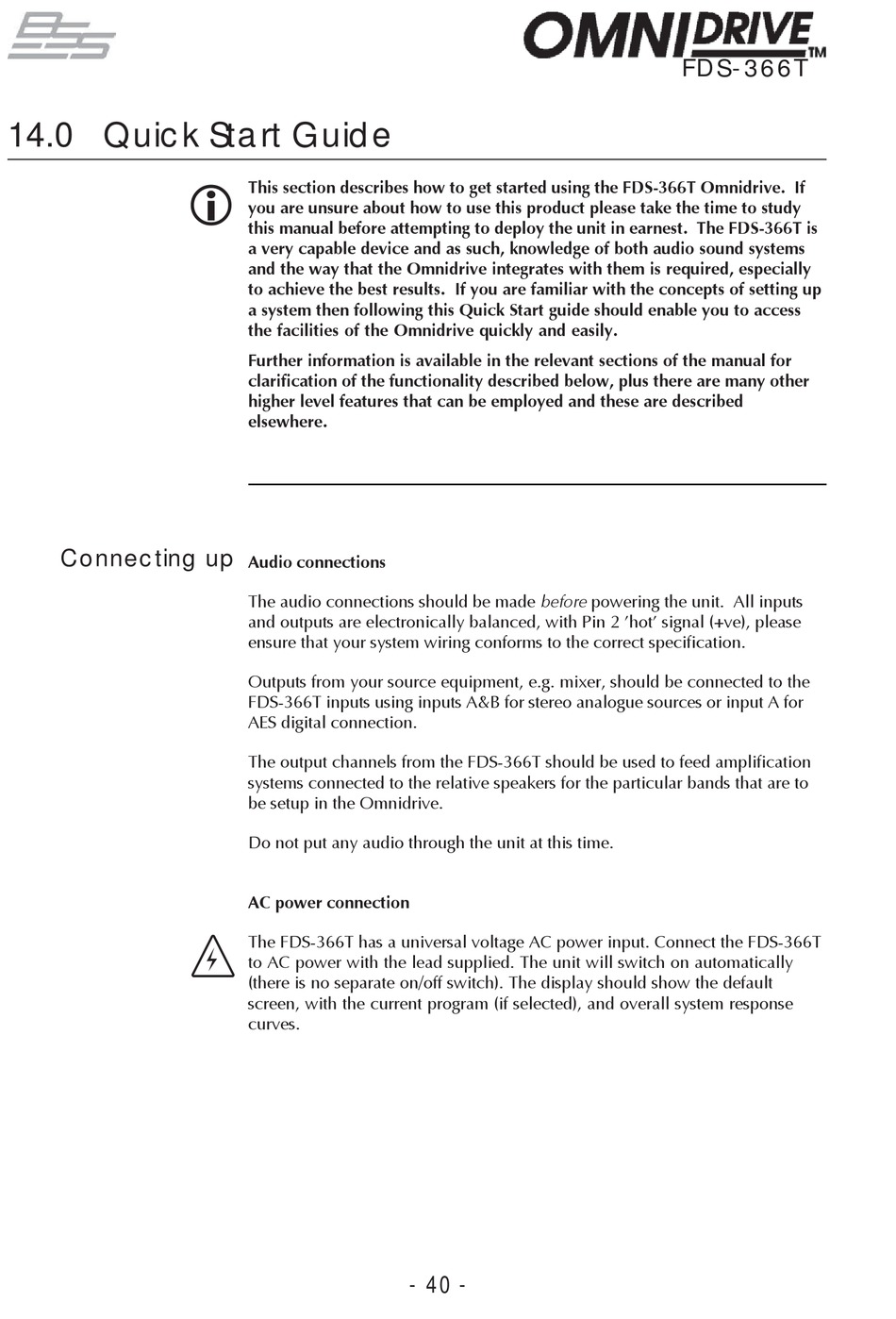

FDS-366T
14.0 Quick Start Guide
i
This section describes how to get started using the FDS-366T Omnidrive. If
you are unsure about how to use this product please take the time to study
this manual before attempting to deploy the unit in earnest. The FDS-366T is
a very capable device and as such, knowledge of both audio sound systems
and the way that the Omnidrive integrates with them is required, especially
to achieve the best results. If you are familiar with the concepts of setting up
a system then following this Quick Start guide should enable you to access
the facilities of the Omnidrive quickly and easily.
Further information is available in the relevant sections of the manual for
clarification of the functionality described below, plus there are many other
higher level features that can be employed and these are described
elsewhere.
Connecting up
Audio connections
The audio connections should be made before powering the unit. All inputs
and outputs are electronically balanced, with Pin 2 'hot' signal (+ve), please
ensure that your system wiring conforms to the correct specification.
Outputs from your source equipment, e.g. mixer, should be connected to the
FDS-366T inputs using inputs A&B for stereo analogue sources or input A for
AES digital connection.
The output channels from the FDS-366T should be used to feed amplification
systems connected to the relative speakers for the particular bands that are to
be setup in the Omnidrive.
Do not put any audio through the unit at this time.
AC power connection
,
The FDS-366T has a universal voltage AC power input. Connect the FDS-366T
to AC power with the lead supplied. The unit will switch on automatically
(there is no separate on/off switch). The display should show the default
screen, with the current program (if selected), and overall system response
curves.
