Frequency; Width; Cut/Boost - BSS Audio FDS366T OMNIDRIVE User Manual

Outputs - EQ
20.000
5.000
0.000
5.0000
0.0
5.000
10.00
15.00
20.00
20 100

Frequency

"15Hz" to "16kHz"

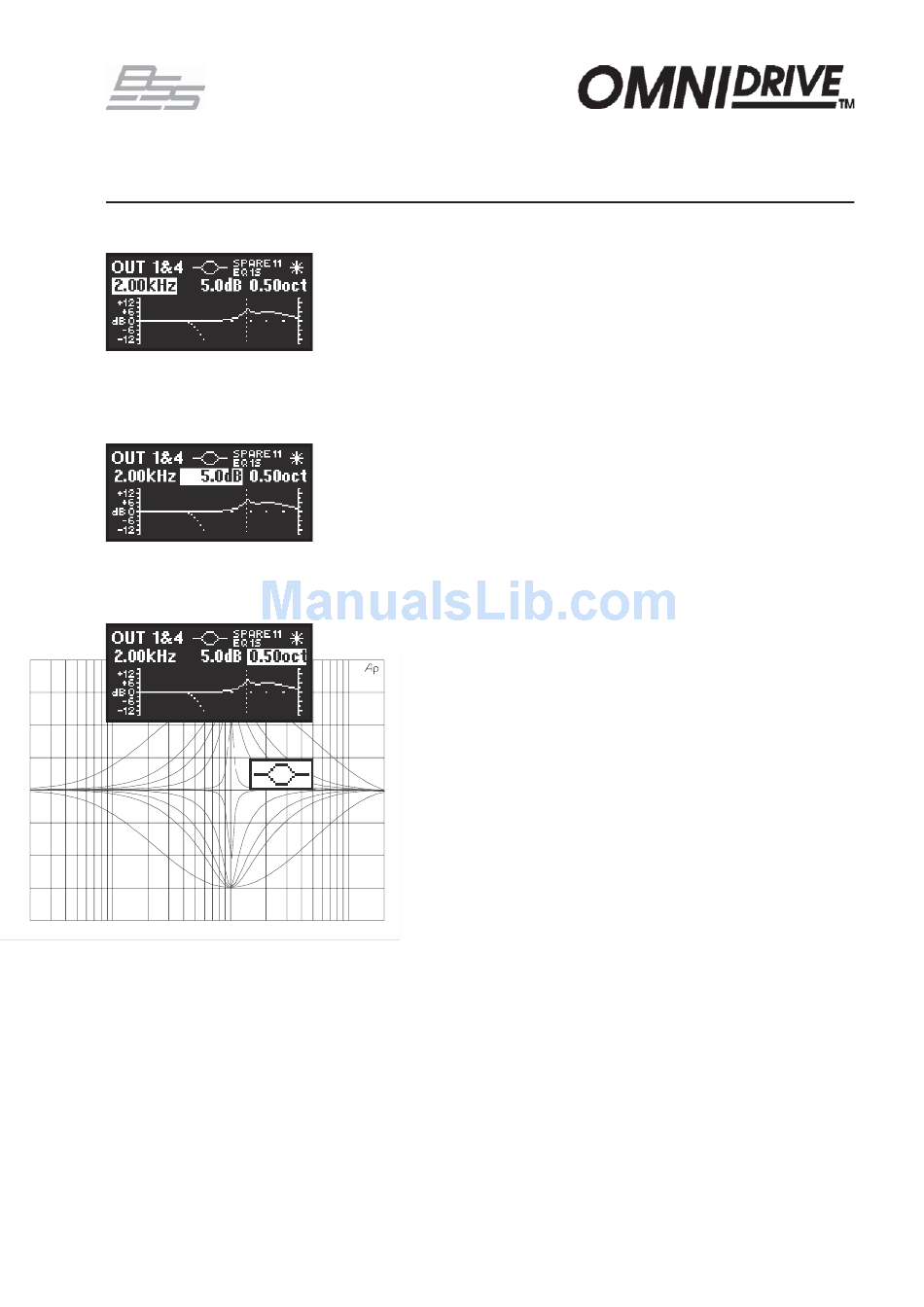

Turning the rotary encoder adjusts the EQ 'centre' frequency if a bell shape
EQ is chosen and the -3dB points for the shelving EQs. The filter position is
shown graphically by the cursor.

Cut/Boost

"-15dB" to "+15dB" in 0.2dB steps
Turn the rotary encoder clockwise to add boost (+ gain) or anti-clockwise for
cut (- gain) at the centre frequency chosen above.

Width

"0.05" to "3.00" Octaves in 0.05 increments
Only displayed if the 'bell' shape is selected. Turning the rotary encoder
clockwise widens the EQ (lower Q) up to a maximum of three octaves.
Turning the rotary encoder anticlockwise makes the EQ narrower (higher Q) to
a minimum of 0.05 octaves.
1k 10k 20k
Limits of EQ Width
- 89 -
FDS-366T
