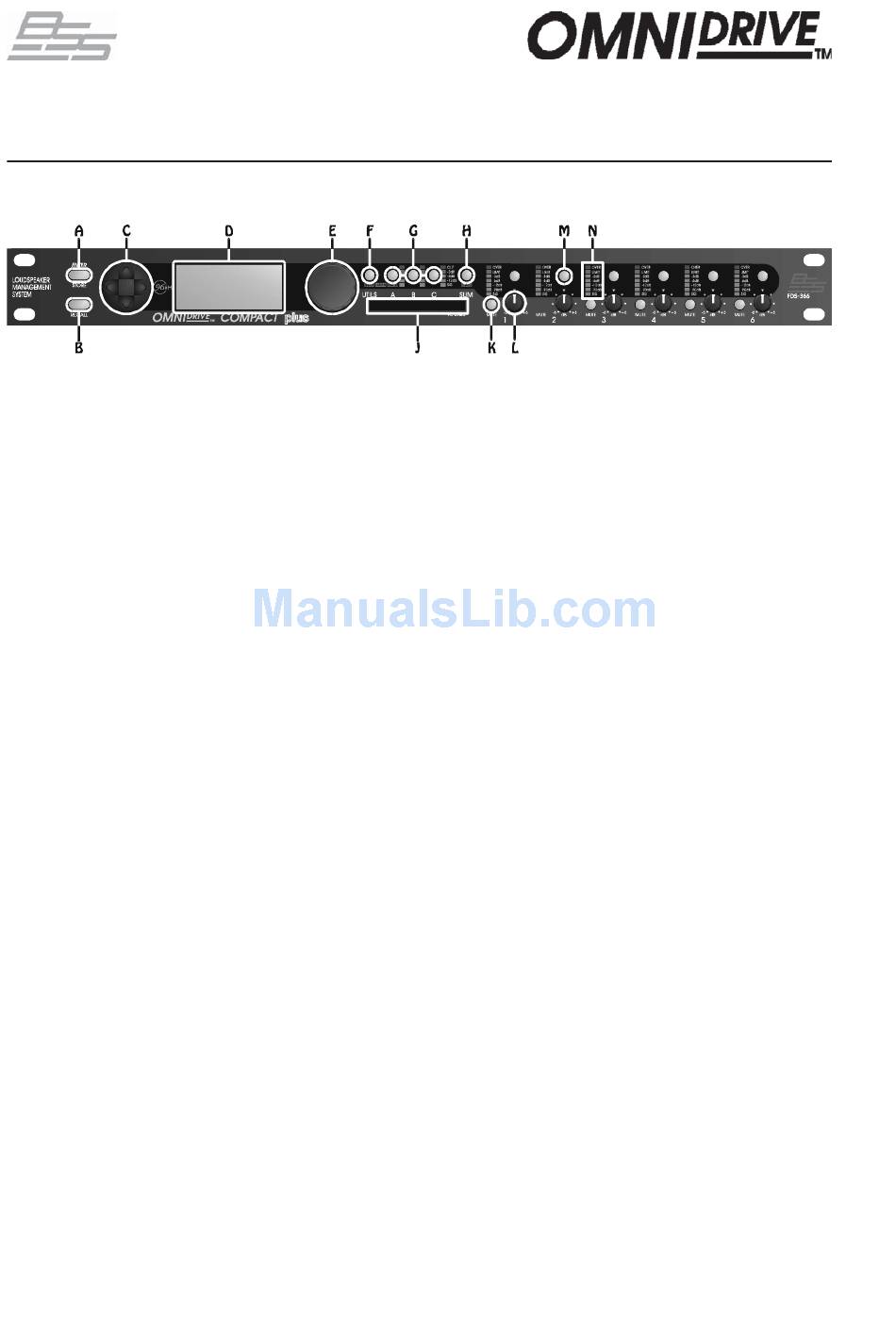

11.0 Front Panel
A STORE /ENTER key
Program data can be stored to either internal memory, or a PC card, and
is done by using the store facility. This key also doubles as an ENTER
key for confirmation of some programming actions.
B RECALL key
Program data can be recalled to the unit from either internal memory or
a PC card using the recall facility.
C Navipad
4-way control key for selecting parameters displayed by the LCD screen.
^ and v will change the parameter to adjust in the current channel. <
and > are either used to adjust the value of the current parameter or, in
some cases, to move left and right. e.g: in EQ screens.
D

Main Display

The main LCD screen displays current parameters being edited with
numerical and graphical representations. When the user is not editing,
the screen can display the overall system response, or a custom logo.
E Rotary encoder
The rotary encoder is used in conjunction with the navipad keys to input
or select information, and also to move between screens. Pushing and
holding the wheel will return you to the default screen after a few
seconds.
F UTILS button
Quick access to the Utilities menu parameter screens.
G Input Channel Select Buttons
Quick access to the Input channel parameter screens.
