18.0 Utilities

Introduction
The Utilities contain settings for the FDS-366T that are of a more general
operational nature, rather than particularly related to the individual function of
the input and output channels.

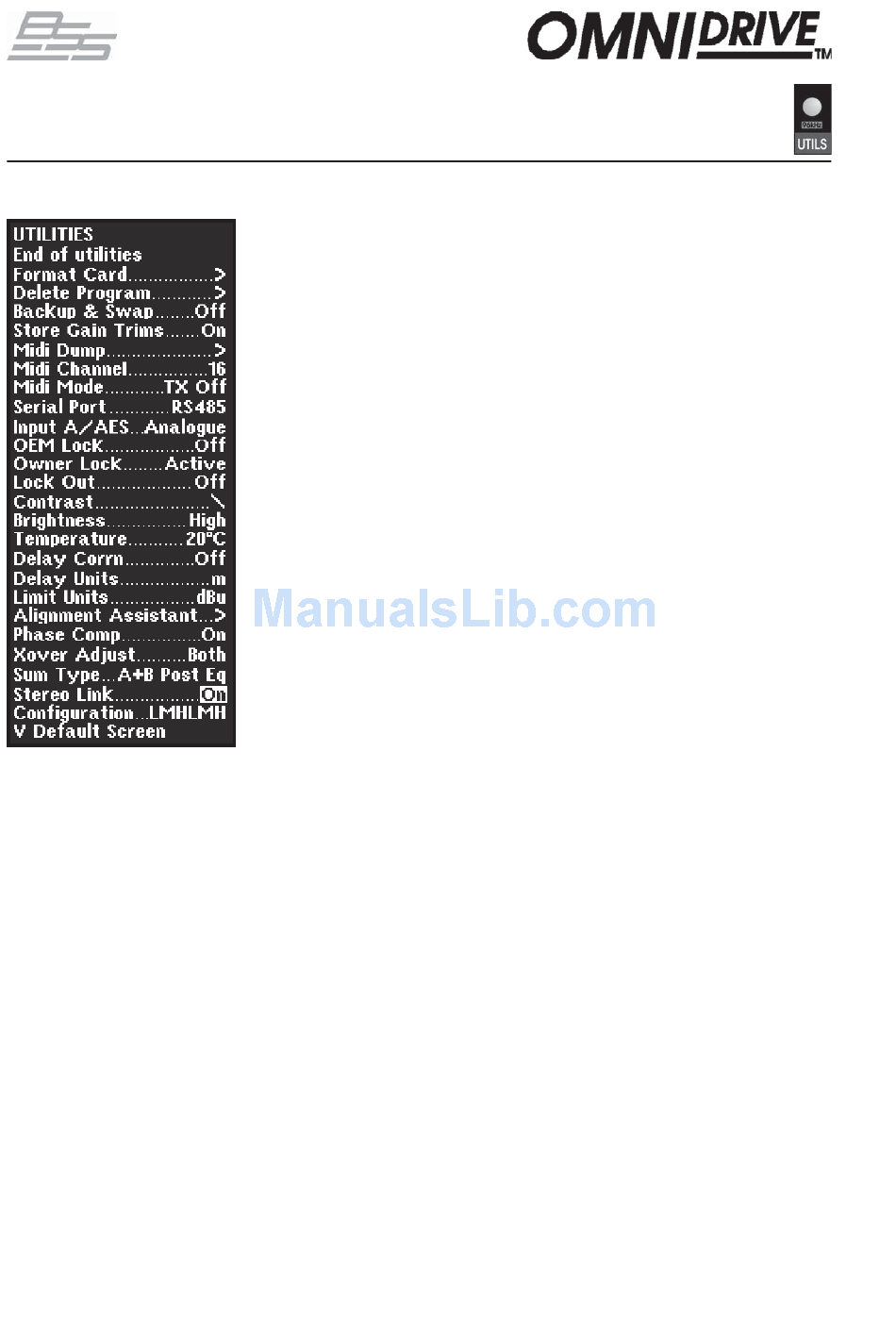

Pressing the UTILS button or pushing the navipad '^' key while viewing the
'default' screen will display the Utilities menu. The '^' and 'v' keys are then
used to move along the Utilities path, which starts at the bottom of the list and
works upwards, and the rotary encoder is used to change the selected
parameter. If confirmation of an action is required, the STORE/ENTER key
should be pressed.
Utilities with ">" next to their names have further screens associated with them.
Press '>' on the navipad to access the extra parameters.
Note: The '96kHz' indicator light under the Utils button is purely to display
the units sample rate for the AtoD and DtoA conversion of the audio.
The Utilities can be regarded in several functional groups:
• Overall configuration of the input/output routing
1.

Configuration

2.

Stereo Link

3.

Sum Type

• Operational alignments & adjustments
4. Xover (Crossover) Adjust
5. Phase Comp(ensation)
6. Alignment Assistant
7. Delay Corrn (Correction)
8. Temperature
• Display units
9. Limit Units
10. Delay Units
• Screen adjustment
11. Brightness
12. Contrast
• Security locks
13. Lock Out
14. Owner Lock
15. OEM Lock
• Connector modes
16. Input A/AES
17. Serial Port
• MIDI functions
18. MIDI Mode
19. MIDI Channel
20. MIDI Dump (also a program function)
• Program functions
21. Store Gain Trims
22. Backup & Swap
23. Delete Program
24. Format Card
