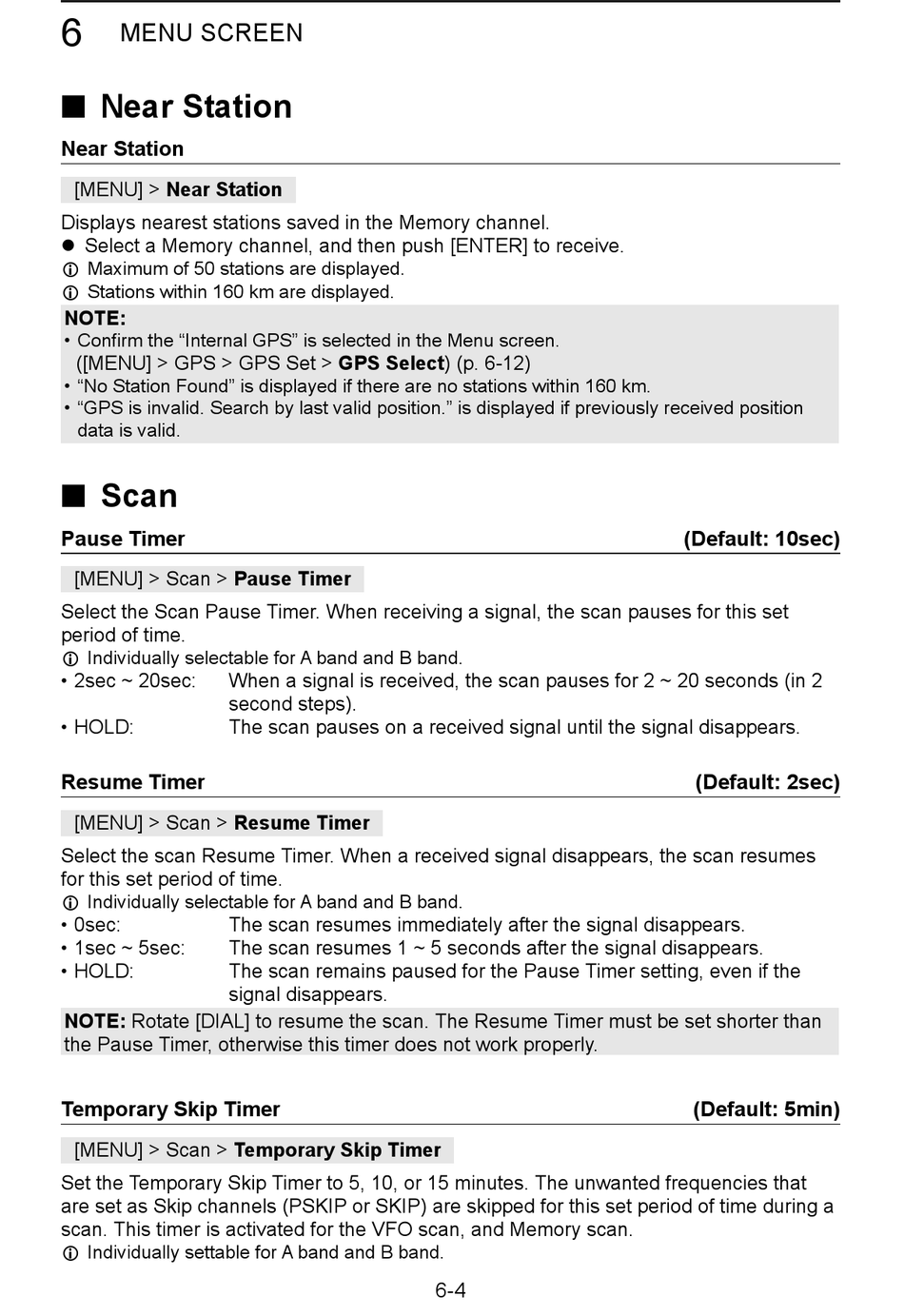

Near Station; Scan - Icom IC-R30 Advanced Manual

6
MENU SCREEN

■ Near Station

Near Station
[MENU] > Near Station
Displays nearest stations saved in the Memory channel.
z Select a Memory channel, and then push [ENTER] to receive.
L Maximum of 50 stations are displayed.
L Stations within 160 km are displayed.
NOTE:
• Confirm the "Internal GPS" is selected in the Menu screen.
([MENU] > GPS > GPS Set > GPS Select) (p. 6-12)
• "No Station Found" is displayed if there are no stations within 160 km.
• "GPS is invalid. Search by last valid position." is displayed if previously received position
data is valid.

■ Scan

Pause Timer
[MENU] > Scan > Pause Timer
Select the Scan Pause Timer. When receiving a signal, the scan pauses for this set
period of time.
L Individually selectable for A band and B band.
• 2sec ~ 20sec: When a signal is received, the scan pauses for 2 ~ 20 seconds (in 2
second steps).
• HOLD: The scan pauses on a received signal until the signal disappears.
Resume Timer
[MENU] > Scan > Resume Timer
Select the scan Resume Timer. When a received signal disappears, the scan resumes
for this set period of time.
L Individually selectable for A band and B band.
• 0sec: The scan resumes immediately after the signal disappears.
• 1sec ~ 5sec: The scan resumes 1 ~ 5 seconds after the signal disappears.
• HOLD: The scan remains paused for the Pause Timer setting, even if the
signal disappears.
NOTE: Rotate [DIAL] to resume the scan. The Resume Timer must be set shorter than
the Pause Timer, otherwise this timer does not work properly.
Temporary Skip Timer
[MENU] > Scan > Temporary Skip Timer
Set the Temporary Skip Timer to 5, 10, or 15 minutes. The unwanted frequencies that
are set as Skip channels (PSKIP or SKIP) are skipped for this set period of time during a
scan. This timer is activated for the VFO scan, and Memory scan.
L Individually settable for A band and B band.
6-4
(Default: 10sec)
(Default: 2sec)
(Default: 5min)
