Connecting the Cables

All cable ports on the base unit and other Intergraph Computer Systems equipment are keyed
or molded and labeled to ensure proper cable attachment. If a cable is not attaching easily,
ensure that you are aligning the cable connector correctly with the port.

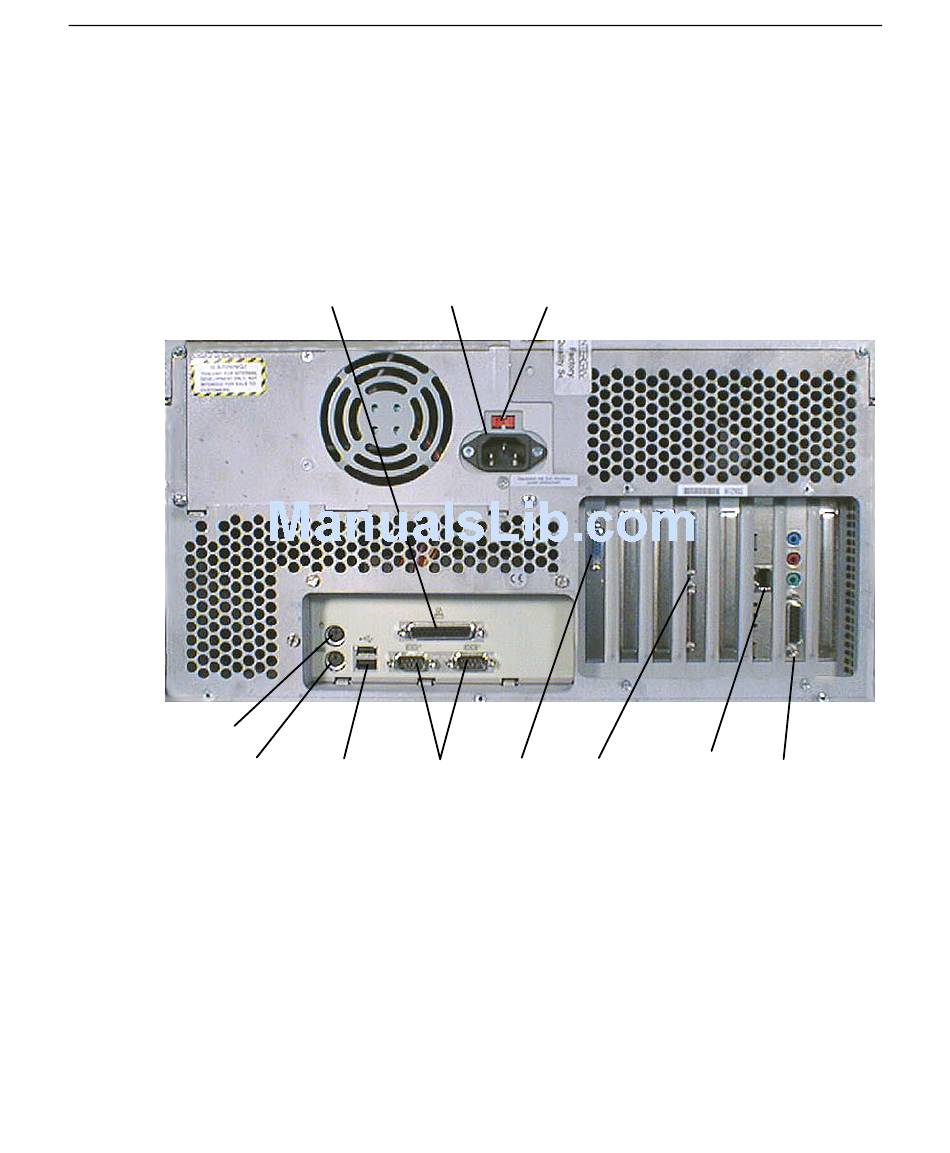

The following figure shows the ports and connections on the back of the base unit. Refer to
this picture as needed when following the cable connection procedure.
Mouse
Keyboard
WARNING If you do not use cables from Intergraph Computer Systems, you must use shielded
cables to prevent excessive electromagnetic interference (EMI). Intergraph Computer
Systems cables are designed to reduce the amount of EMI produced by the system.
NOTE While Intergraph Computer Systems recommends disconnecting the cables from the base
unit before extending the base unit from the rack, you can still extend the base unit without
disconnecting the cables. Be sure there is enough cable to allow the base unit to fully extend
from the rack. Use caution not to pinch the cables while extending or retracting the base unit.
The base unit ports are labeled for easy reference. Refer to the following table as needed
when connecting cables to the base unit.
AC Power
Parallel
USB
Serial
Voltage Selection
Network
SCSI
Video
(optional)
9
Audio
