Intergraph StudioZ RenderRAX III System Setup page 15

2. Install the handle brackets on the base unit, using the screws provided.
Handle Brackets
3. If the rail guides are already attached to the base unit, skip to step 4. If the rail guides are
not attached to the base unit, do the following:
Remove the rail guides from the mounting rails. The rail guide is the innermost
sliding piece of the mounting rails, and has a flexible tab at one end.
Attach the rail guides to the base unit using the flat-head screws provided, making
sure the tab on the rail guide is towards the back of the base unit. Refer to the

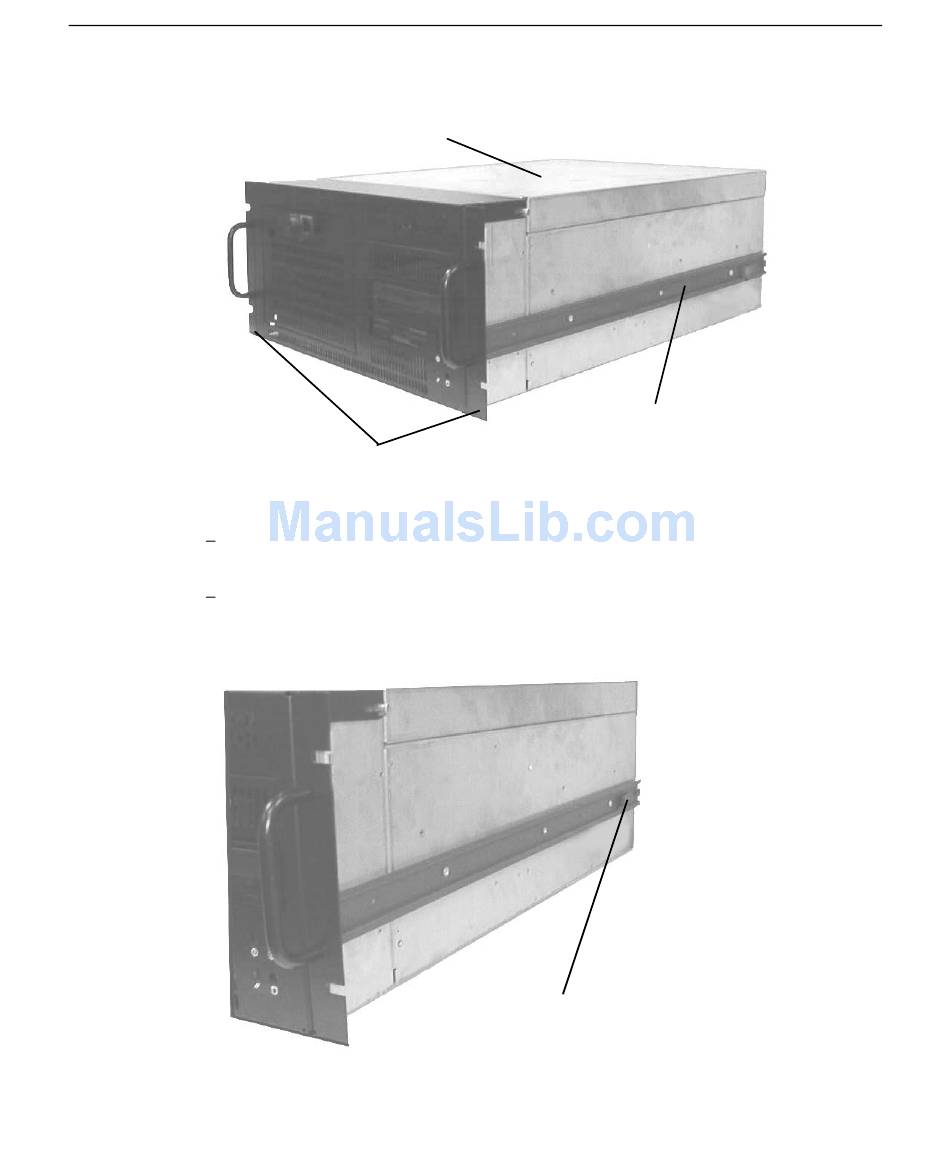

following figure.
Base Unit
Flexible Tab
Rail Guide
