Intergraph StudioZ RenderRAX III System Setup page 23

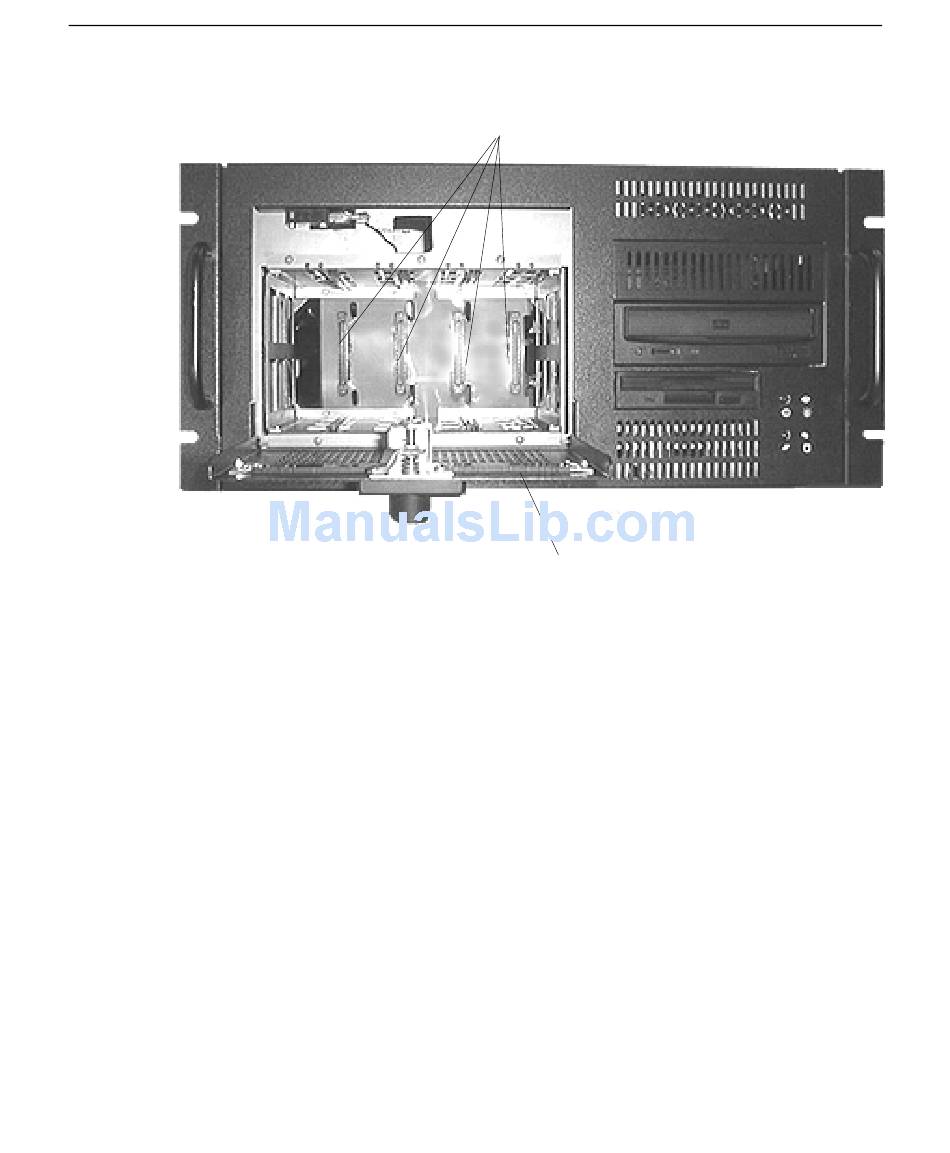

The following figure shows the system with the disk drive bay door open.
To install JBOD or RAID disk drives:
1. Open the disk drive bay door on the front of the base unit. The key is in the parts box.
2. Remove the disk drive(s) from the disk drive carton and place them on an antistatic
surface. Carefully open the antistatic bag(s) and remove the disk drive(s). Note the ID
number on the drive(s).
3. Extend the latching clips on Drive 0 and align the rails on the side of the drive with the
slot guides in the rightmost slot. The metal casing of the drive faces to the left. If you
install the drive reversed, it will not connect to the system.
4. With your thumb, push the drive at the center between the latching clips until it slides all
the way into the slot and firmly engages the connector.
5. Close the latching clips to lock the drive in the slot.
6. Repeat steps 3 through 6 to install each remaining disk drive. Fill each slot, moving to
the left adjacent slot as you install each drive. Do not leave empty slots between drives.
Disk Drive Slots
Disk Drive Bay
Door (open)
13
