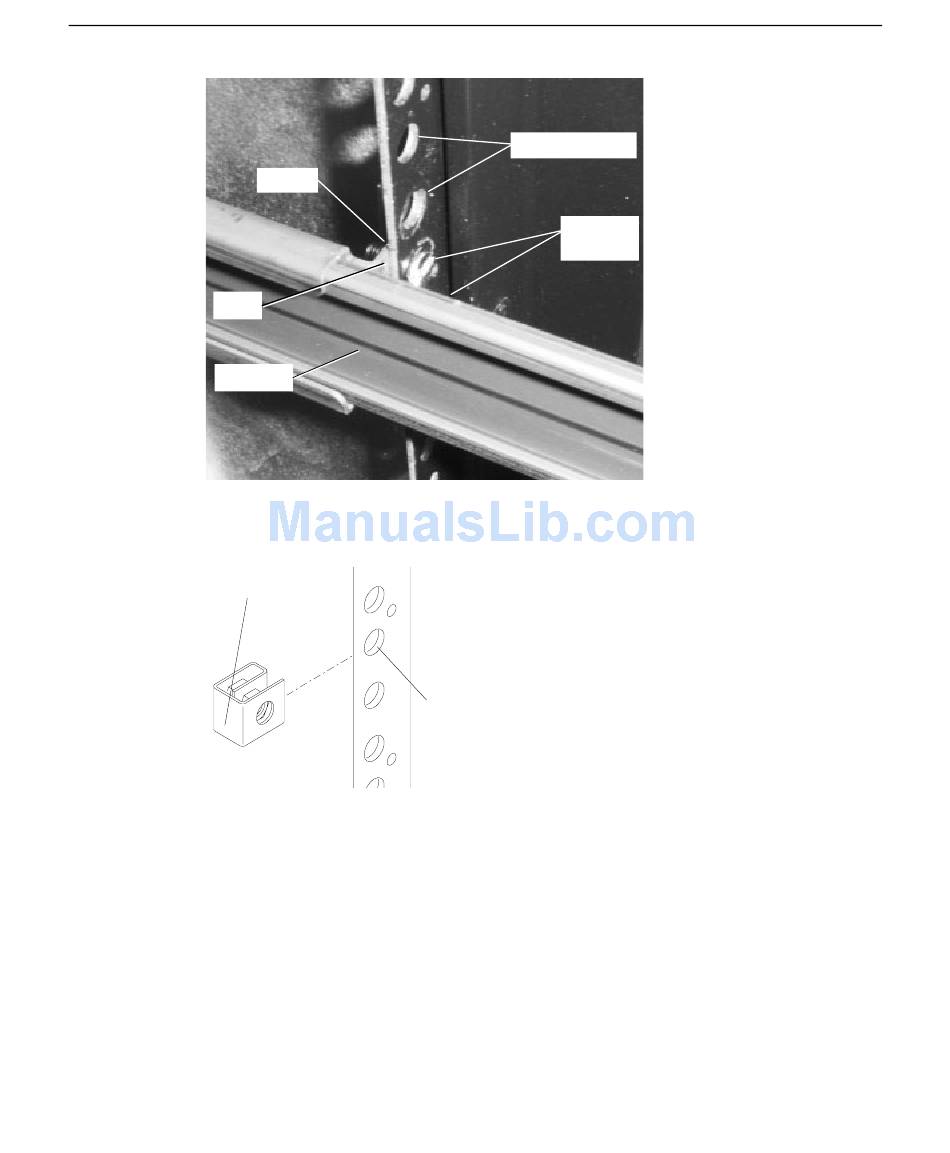

Bar Nut
Teeth
Rack Rail
7.
Slide tinnerman nuts over the third and thirteenth mounting holes starting from the bottom
of the 5 Us. The tinnerman nuts will be used when you secure the handle brackets on the
front of the base unit to the front of the rack. Refer to the following figure.
Tinnerman
Nut
8.
Use the button-head screws and bar nuts provided to secure the back rack rail teeth to the
back of the rack.
With the flat side of the bar nut facing the screws, loosely install two button-head screws
to the bar nut, through the fifth and sixth mounting holes of the bottom 5 Us. Slide the
back rail teeth over the screws and tighten. Ensure the back rail teeth are between the bar
nut and the mounting holes. Refer to the following figure.
Mounting Holes
Flat-Head
Screws
Mounting
Hole
7
